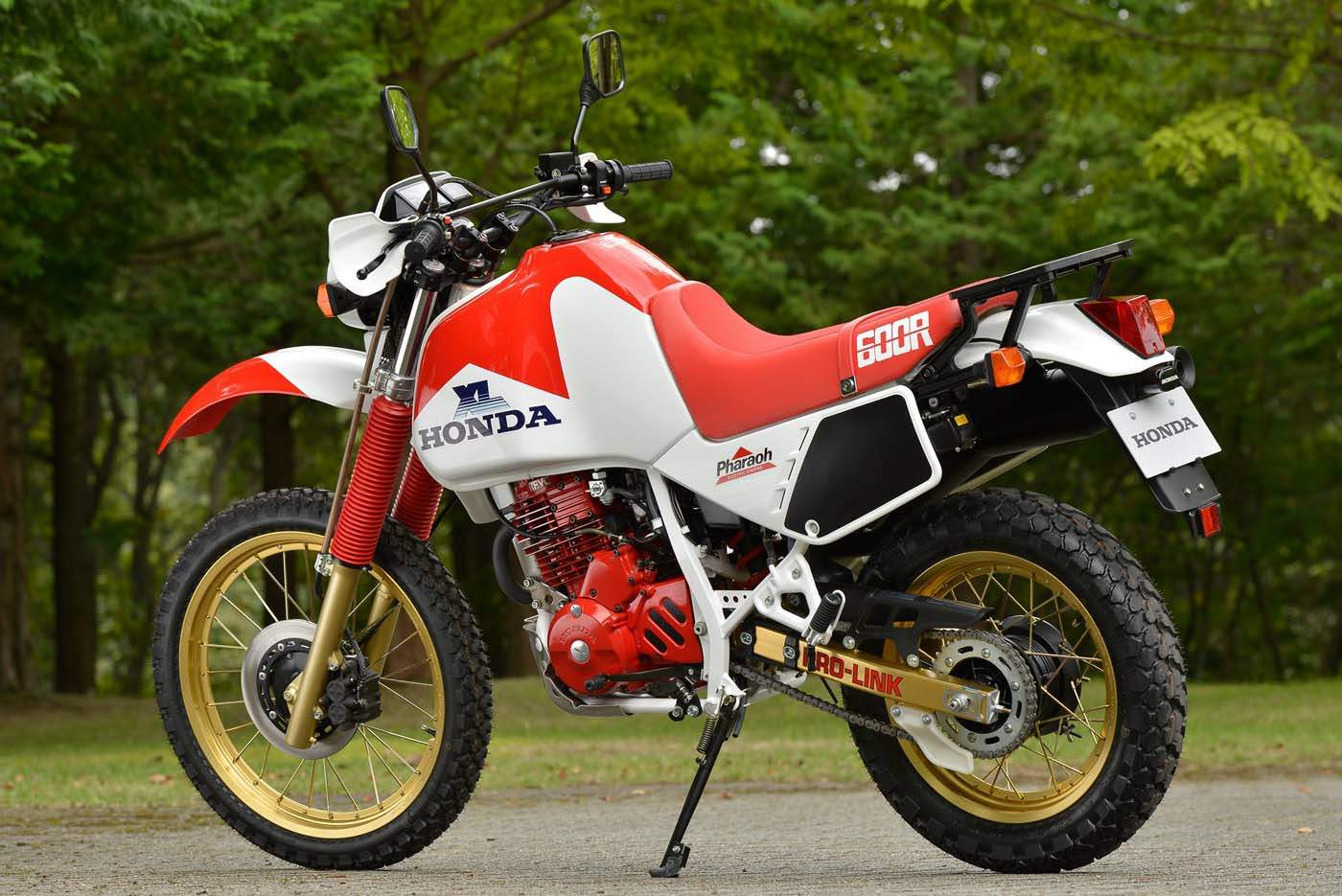

Honda XL 600R Pharaohs Limited Edition (1985) technical specifications
Honda XL 600R Pharaohs Limited Edition is produced in 1985. Engine is Four stroke, single cylinder, SOHC, 4 valve per cylinder, RFVC radial valve, displacement 589 cc / 35.6 cu-in , produces power 33 kW / 45 hp @ 6500 rpm and 48.8 Nm / 36 lb-ft @ 5000 rpm. Honda XL 600R Pharaohs Limited Edition weighs 155 kg / 341.7 lbs. Honda XL 600R Pharaohs Limited Edition has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | XL 600R Pharaohs Limited Edition |
| Years: | 1985 |
| Engine: | Four stroke, single cylinder, SOHC, 4 valve per cylinder, RFVC radial valve |
| Capacity: | 589 cc / 35.6 cu-in |
| Bore x Stroke: | 100 x 75 mm |
| Cooking System: | Air cooled |
| Compression Ratio: | 9.0:1 |
| Induction: | 2 x 28mm piston valve |
| Ignition: | Solid state CD |
| Starting: | Electric & Primary kick with automatic compression release |
| Max Power: | 33 kW / 45 hp @ 6500 rpm |
| Max Torque: | 48.8 Nm / 36 lb-ft @ 5000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | 39mm Showa air-adjustable leading-axle forks with dual Syntallic bushings |
| Front Wheel Travel: | 220 mm / 9.0 in |
| Rear Suspension: | Pro-link with adjustable rebound damping |
| Rear Wheel Travel: | 203 mm / 8.0 in |
| Front Brakes: | Single 240mm disc 2 piston calliper |
| Rear Brakes: | 140mm Drum |
| Front Tyre: | 3.00-21 |
| Rear Tyre: | 5.10-17 |
| Wheelbase: | 1420mm / 55.9 in |
| Seat Height: | 860mm / 33.8 in |
| Ground Clearance: | 274 mm / 10.8 in |
| Dry Weight: | 155 kg / 341.7 lbs |
| Wet Weight: | 189.0 kg / 416.7 lbs |
| Fuel Capacity: | 28 Litres / 7.4 US gal |
