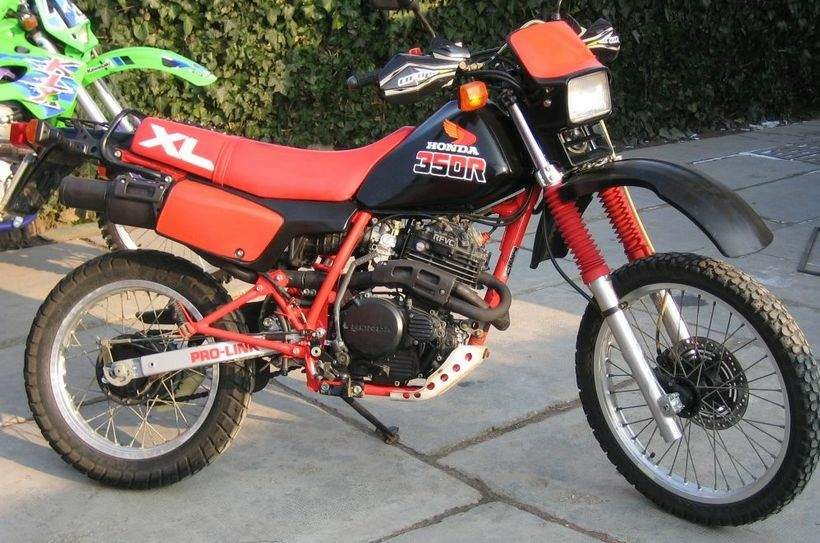

Honda XL 350R (1986) technical specifications

Honda XL 350R is produced in 1986. Engine is Four stroke, single cylinder, SOHC, 4 valve, RFVC radial valve, displacement 339 cc / 26.7 cu-in , produces power 22.4 hp / 16.7 KW @ 7500 and 28.3 Nm / 20.9 lb·ft @ 6500 rpm. Honda XL 350R top speed is 86 mph. Honda XL 350R wet weight is 137 kg / 302 lbs. Honda XL 350R has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	XL 350R
Years:	1986
Engine:	Four stroke, single cylinder, SOHC, 4 valve, RFVC radial valve
Capacity:	339 cc / 26.7 cu-in
Bore x Stroke:	84 x 61.3 mm
Cooling System:	Air cooled
Compression Ratio:	9.5;1
Lubrication:	Wet sump
Induction:	2x 26mm Keihin carburetor
Ignition:	CDI
Starting:	Kick
Max Power:	22.4 hp / 16.7 KW @ 7500
Max Torque:	28.3 Nm / 20.9 lb·ft @ 6500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Front Suspension:	41mm Air adjustable forks
Front Wheel Travel:	280 mm / 11.0 in
Rear Suspension:	Single gas shocks, fully adjustable
Rear Wheel Travel:	270 mm / 10.6 in
Front Brakes:	Single disc
Rear Brakes:	Drum
Front Tyre:	3.00 -21
Rear Tyre:	4.60 -17
Rake:	30.5°
Trail:	120 mm / 4.7 in
Dimensions:	860 mm / 33.9 in
Wheelbase:	1410 mm / 55.6 in
Seat Height:	920 mm / 36.2 in
Wet-Weight:	137 kg / 302 lbs
Fuel Capacity:	11 Litres / 2.9 US gal
Standing ¼ Mile:	14.9 sec / 83.6 mph
Consumption Average:	56 mpg
Top Speed:	86 mph
