Honda XL 250 (1972-73) technical specifications

Honda XL 250 technical specifications

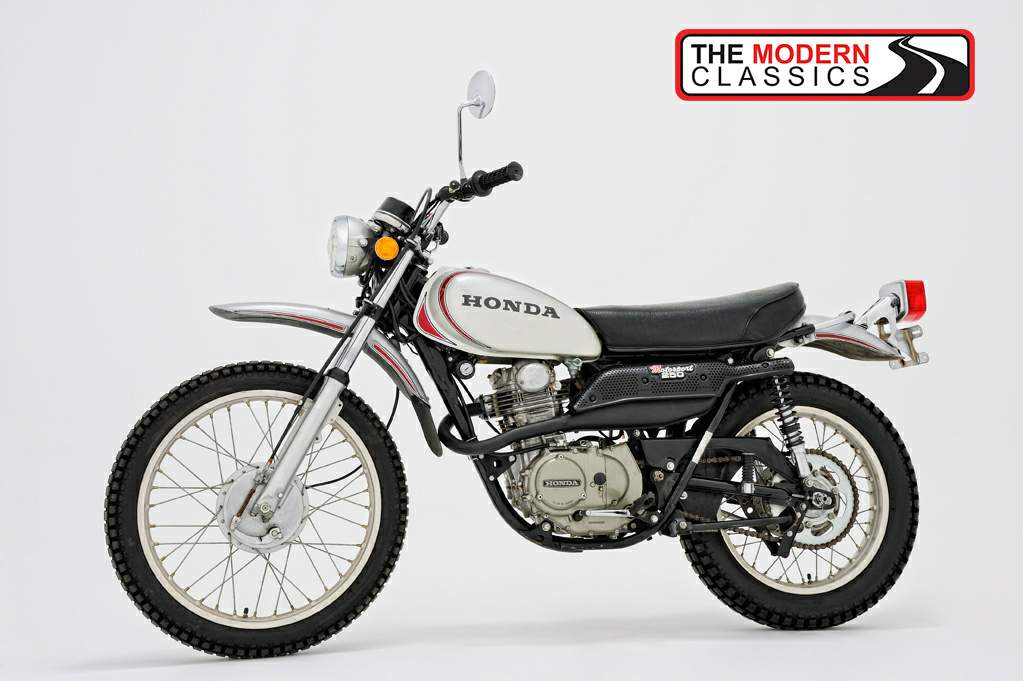

Honda XL 250 is produced in 1972-73. Engine is Four stroke, single cylinder, OHC, displacement 248 cc / 15.1 cu-in , produces power 23.4 hp 17.5 KW @ 8000 rpm and NA. Honda XL 250 has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: XL 250
Years: 1972-73
Engine: Four stroke, single cylinder, OHC
Capacity: 248 cc / 15.1 cu-in
Bore x Stroke: 74 X 57.8 mm
Cooling System: Air cooled
Compression Ratio: 9.1:1
Induction: Single 28mm Keihin carburettor
Ignition: Battery and coil
Starting: Kick
Max Power: 23.4 hp 17.5 KW @ 8000 rpm
Max Torque: NA
Clutch: Multiple disc in oil bath
Transmission: 5 Speed
Final Drive: Chain
Frame: Semi double cradle
Front Suspension: Telescopic forks
Rear Suspension: Swinging fork
Front Brakes: 150 mm Drum
Rear Brakes: 140 mm Drum
Front Tyre: 2.75 -21
Rear Tyre: 4.00 -18
Weight: 135.6 kg / 299 lbs
Fuel Capacity: 9.5 Litres / 1.7 US gal
