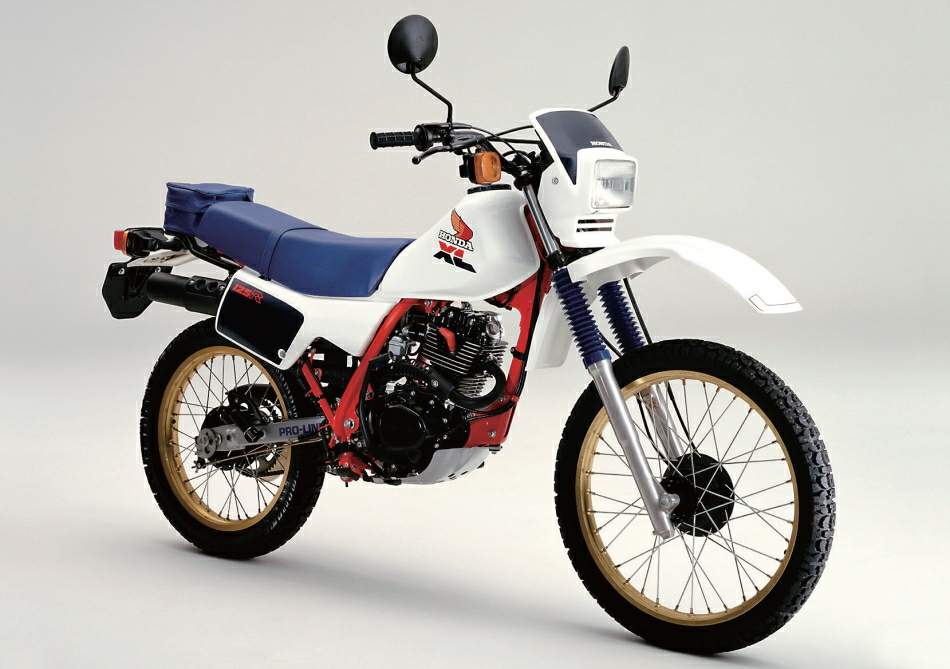

1984 Honda XL 125R technical specifications
Technical specifications
|
|
---|---|
Model: | XL 125R |
Years: | 1984-85 |
Engine: | Four stroke, single cylinder, OHC, 2 valves |
Capacity: | 124 cc / 7.6 cu-in |
Bore x Stroke: | 56.5 x 49.5 mm |
Cooling System: | Air cooled |
Compression Ratio: | 9.2:1 |
Induction: | PD52 carburetor |
Ignition: | CDI |
Starting: | Kick |
Max Power: | 11.4 hp / 8.3 kW @ 10000 rpm |
Max Torque: | 10 Nm / 7.3 lb-ft @ 8000 rpm |
Transmission: | 6 Speed |
Final Drive: | Chain |
Front Suspension: | Telescopic forks |
Rear Suspension: | Swinging arm |
Front Brakes: | Drum |
Rear Brakes: | Drum |
Front Tyre: | 2.75-21 |
Rear Tyre: | 4.10-18 |
Wheelbase: | 1375 mm / 54.1 in |
Seat Height: | 860 mm / 33.9 in |
Dry Weight: | 109 kg / 240 lbs |
Wet Weight: | 126.0 kg / 277.8 lbs |
Fuel Capacity: | 9 Litres / 2.3 us gal |
