Technical specifications
|
| Model: |

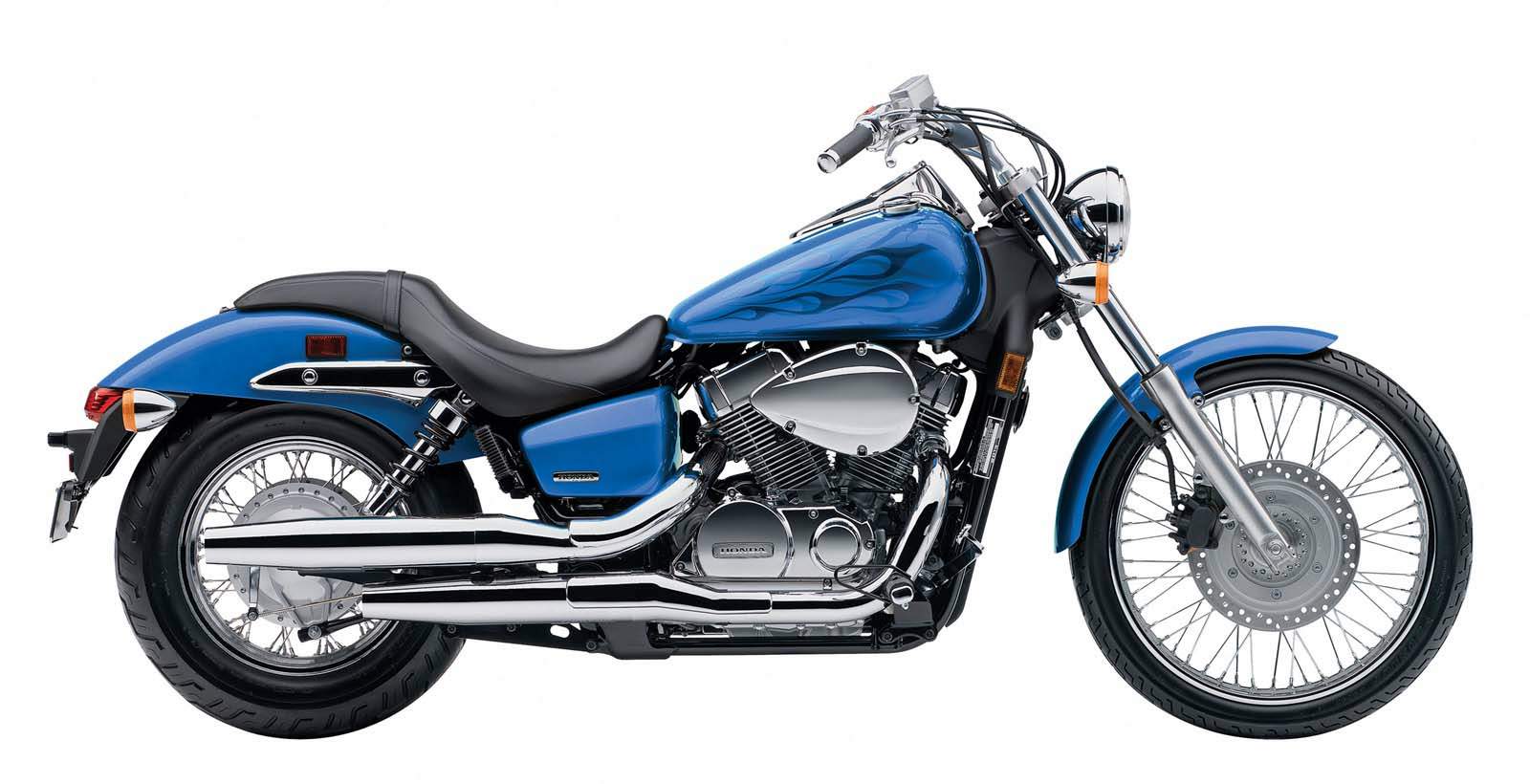

VT 750C Shadow Sprint / ABS |
| Years: |
2013-15 |
|
Engine:
|
Four stroke, 52°V-twin, SOHC. 3 valve per cylinder
|
|
Capacity:
|
745 cc / 45.7 cu-in
|
|
Bore x Stroke:
|
79 x 76 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
9.6:1
|
|
Induction:
|
PGM-FI electronic fuel injection with automatic choke, 34mm Throttle Bore
|
|
Ignition:
|
Solid-state with electronic advance, two spark plugs per cylinder
|
|
Starting:
|
Electric
|
|
Max Power:
|
43 hp / 32.1 kW @ 5500 rpm
|
|
Max Torque:
|
60.5 Nm / 44 ft.-lb @ 3000 rpm
|
|
Clutch:
|
Wet, multiplate with coil springs
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Gear Ratio:
|
1st 2.400 (36/15) / 2nd 1.550 (31/20) / 3rd 1.174 (27/23) / 4th 0.960 (24/25) / 5th 0.852 (23/27)
|
|
Front Suspension:
|
41mm Telescopic fork.
|
|
Front Wheel Travel:
|
129.5 mm / 5.0 in
|
|
Rear Suspension:
|
Dual shocks 5-way spring-preload adjustability
|
|
Rear Wheel Travel:
|
90 mm / 3.5 in
|
|
Front Brakes:
|
Single 296 mm disc 2 piston caliper
|
|
Rear Brakes:
|
180 mm Drum
|
|
Front Tyre:
|
90/90 –17
|
|
Rear Tyre:
|
160/80 –15
|
|
Wheelbase:
|
1615 mm / 63.6 in
|
|
Seat Height:
|
652.8 mm / 25.6 in
|
|
Wet Weight:
|
251 kg / 555 lbs
|
|
Fuel Capacity:
|
14 Litres / 3.7 US gal
|
