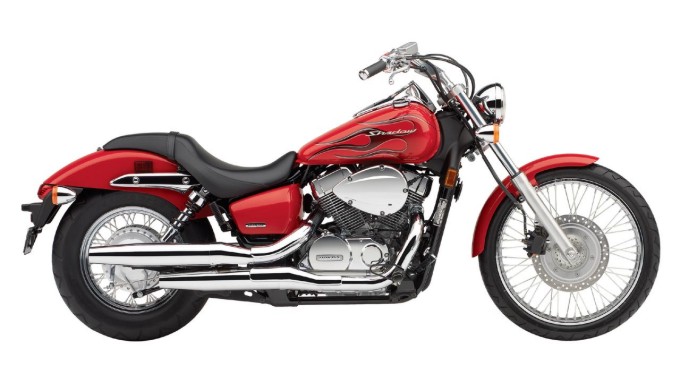

Honda VT 750C Shadow Spirit (2008-09) technical specifications

Honda VT 750C Shadow Spirit technical specifications

Honda VT 750C Shadow Spirit is produced in 2008-09. Engine is Four stroke, 52°V-twin, SOHC. 3 valve per cylinder, displacement 745 cc / 45.7 cu-in , produces power 43 hp / 32.1 kW @ 5500 rpm and 60.5 Nm / 44 ft.-lb @ 3000 rpm. Honda VT 750C Shadow Spirit weighs 229 kg / 504.9 lbs. Honda VT 750C Shadow Spirit has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: VT 750C Shadow Spirit
Years: 2008-09
Engine: Four stroke, 52°V-twin, SOHC. 3 valve per cylinder
Capacity: 745 cc / 45.7 cu-in
Bore x Stroke: 79 x 76 mm
Cooling System: Liquid cooled
Compression Ratio: 9.6:1
Induction: Two 36mm diaphragm-type CV
Ignition: Solid-state with electronic advance, two spark plugs per cylinder
Starting: Electric
Max Power: 43 hp / 32.1 kW @ 5500 rpm
Max Torque: 60.5 Nm / 44 ft.-lb @ 3000 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: 41mm Telescopic fork.
Front Wheel Travel: 129.5 mm / 5.0 in
Rear Suspension: Dual shocks 5-way spring-preload adjustability
Rear Wheel Travel: 90 mm / 3.5 in
Front Brakes: Single 296 mm disc 2 piston caliper
Rear Brakes: 180 mm Drum
Front Tyre: 90/90 –17
Rear Tyre: 160/80 –15
Wheelbase: 1615 mm / 63.6 in
Seat Height: 700 mm / 27.6 in
Dry Weight: 229 kg / 504.9 lbs
Fuel Capacity: 14 Litres / 3.7 US gal
