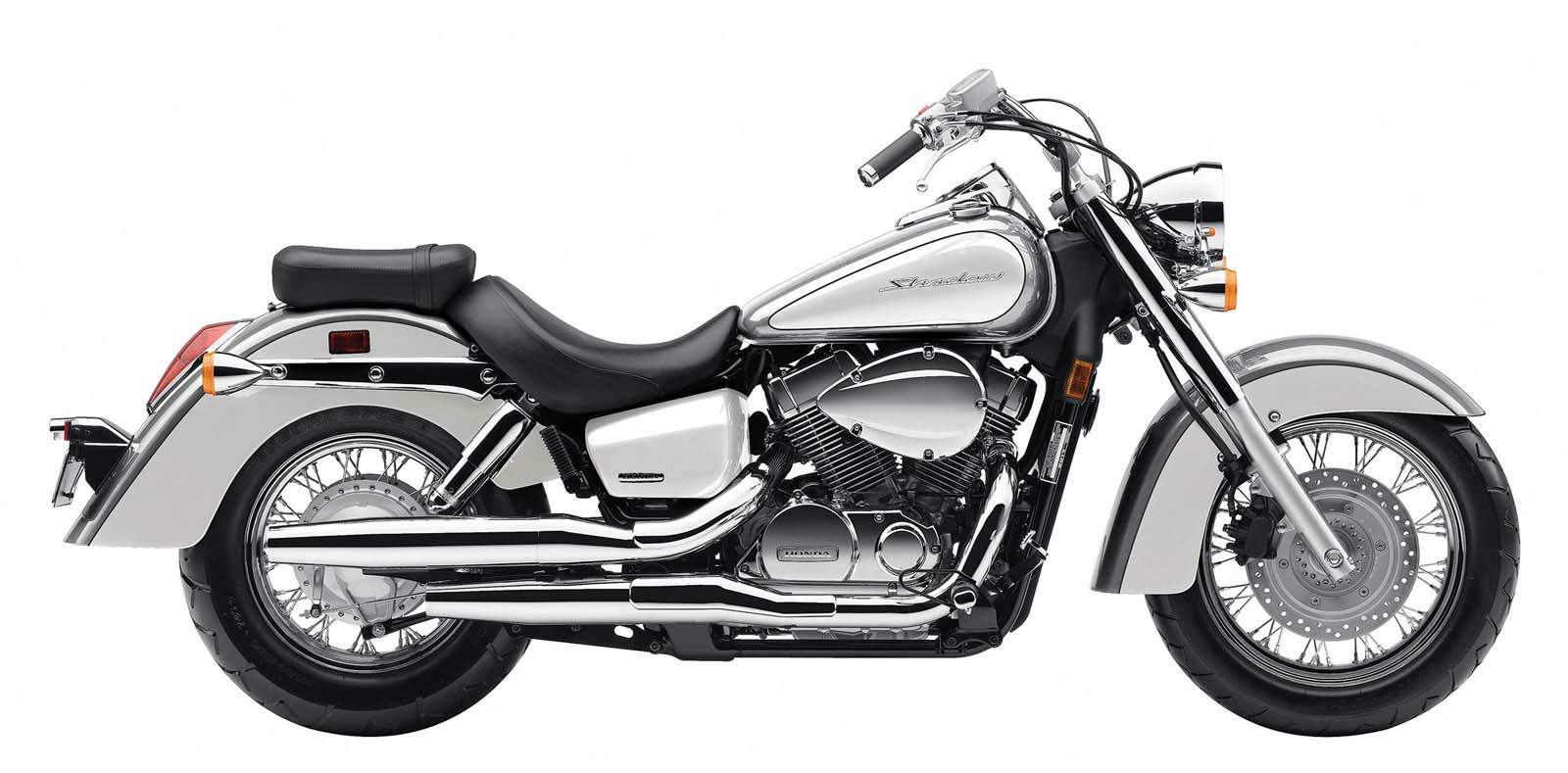

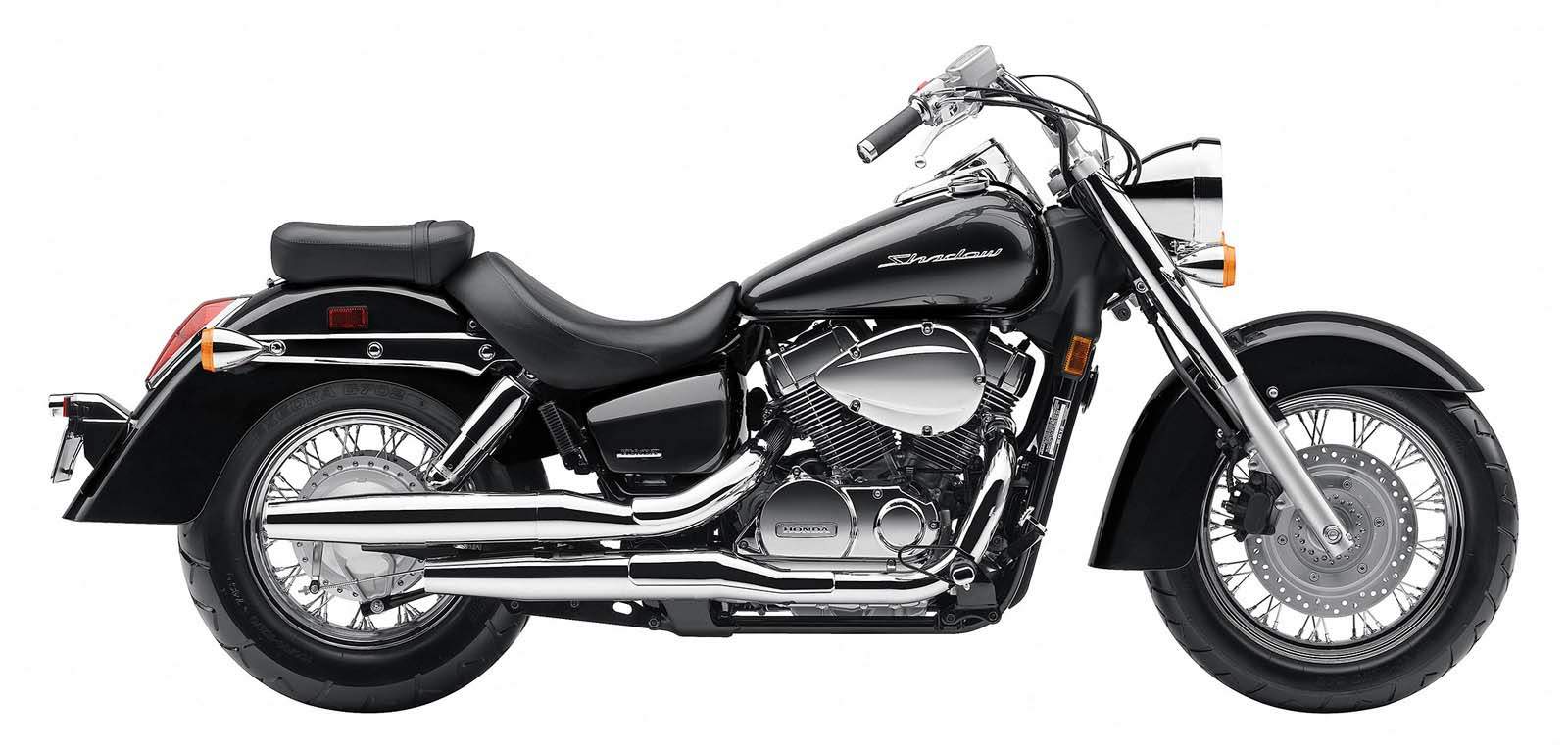

Honda VT 750C Shadow Aero / ABS (2013-15) technical specifications
Honda VT 750C Shadow Aero / ABS is produced in 2013-15. Engine is Four stroke, 52°V-twin, SOHC. 3 valve per cylinder, displacement 745 cc / 45.7 cu-in , produces power 43 hp / 32.1 kW @ 5500 rpm and 60.5 Nm / 44 ft.-lb @ 3000 rpm. Honda VT 750C Shadow Aero / ABS wet weight is 262 kg / 578 lbs. Honda VT 750C Shadow Aero / ABS has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | VT 750C Shadow Aero / ABS |
| Years: | 2013-15 |
| Engine: | Four stroke, 52°V-twin, SOHC. 3 valve per cylinder |
| Capacity: | 745 cc / 45.7 cu-in |
| Bore x Stroke: | 79 x 76 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 9.6:1 |
| Induction: | PGM-FI electronic fuel injection with automatic choke, 34mm Throttle Bore |
| Ignition: | Solid-state with electronic advance, two spark plugs per cylinder |
| Starting: | Electric |
| Max Power: | 43 hp / 32.1 kW @ 5500 rpm |
| Max Torque: | 60.5 Nm / 44 ft.-lb @ 3000 rpm |
| Clutch: | Wet, multiplate with coil springs |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Gear Ratio: | 1st 2.400 (36/15) / 2nd 1.550 (31/20) / 3rd 1.174 (27/23) / 4th 0.960 (24/25) / 5th 0.852 (23/27) |
| Front Suspension: | 41mm Telescopic fork |
| Front Wheel Travel: | 129.5 mm / 5.0 in |
| Rear Suspension: | Dual shocks 5-way spring-preload adjustability |
| Rear Wheel Travel: | 90 mm / 3.5 in |
| Front Brakes: | Single 296 mm disc 2 piston caliper |
| Rear Brakes: | 180 mm Drum |
| Front Tyre: | 120/90 - 17 |
| Rear Tyre: | 160/80 –15 |
| Wheelbase: | 1,640 mm (64.6 in.) |
| Seat Height: | 658 mm / 25.i in |
| Wet Weight: | 262 kg / 578 lbs |
| Fuel Capacity: | 14 Litres / 3.7 US gal |
