Honda VT 700C Shadow (1984-87) technical specifications

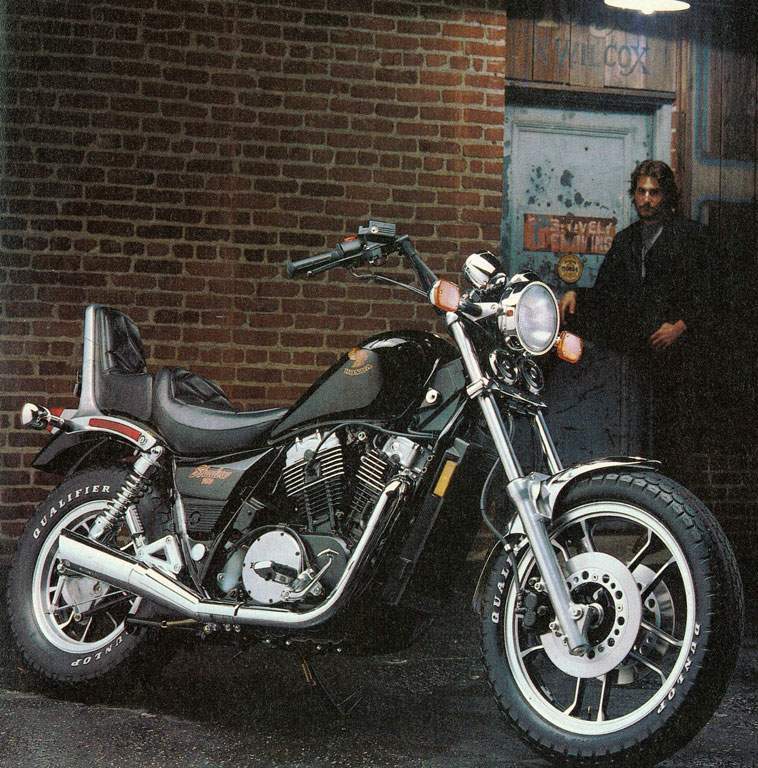

Honda VT 700C Shadow is produced in 1984-87. Engine is Four stroke, 45°V-twin, SOHC, 3 valves per cylinder, displacement 694.5 cc / 42.3 cu-in , produces power 62 hp / 45.3 kW @ 7500 rpm and 62.1 Nm / 45.8 ft-lb @ 6000 rpm. Honda VT 700C Shadow wet weight is 225 kg / 495 lbs. Honda VT 700C Shadow has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | VT 700C Shadow |
| Years: | 1984-87 |
| Engine: | Four stroke, 45°V-twin, SOHC, 3 valves per cylinder |
| Capacity: | 694.5 cc / 42.3 cu-in |
| Bore x Stroke: | 75.5 x 75.5 mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 9.0:1 |
| Lubrication: | Wet sump |
| Induction: | 2x 36mm diaphragm-type CV |
| Ignition: | Full transistor ignition |
| Starting: | Electric |
| Max Power: | 62 hp / 45.3 kW @ 7500 rpm |
| Max Torque: | 62.1 Nm / 45.8 ft-lb @ 6000 rpm |
| Clutch: | Wet, multi plate |
| Transmission: | 6 Speed |
| Final Drive: | Shaft |
| Frame: | Double cradle |
| Front Suspension: | 39mm Air assisted telescopic forks |
| Front Wheel Travel: | 145 mm / 5.7 in |
| Rear Suspension: | Dual shocks adjustable spring preload, 94mm wheel travel. |
| Rear Wheel Travel: | 103 mm / 4.1 in |
| Front Brakes: | 2x 275mm discs, 2 piston caliper |
| Rear Brakes: | Drum |
| Front Tyre: | 110/90-19 62H |
| Rear Tyre: | 140/90-15 70H |
| Rake: | 32° |
| Trail: | 140 mm / 5.5 in |
| Wheelbase: | 1525 mm / 60.0 in |
| Seat Height: | 760 mm / 29.9 in |
| Ground Clearance: | 150 mm / 5.9 in |
| Wet Weight: | 225 kg / 495 lbs |
| Fuel Capacity: | 12.8 Litres / 3.4 US gal |
