Technical specifications
|
| Model: |

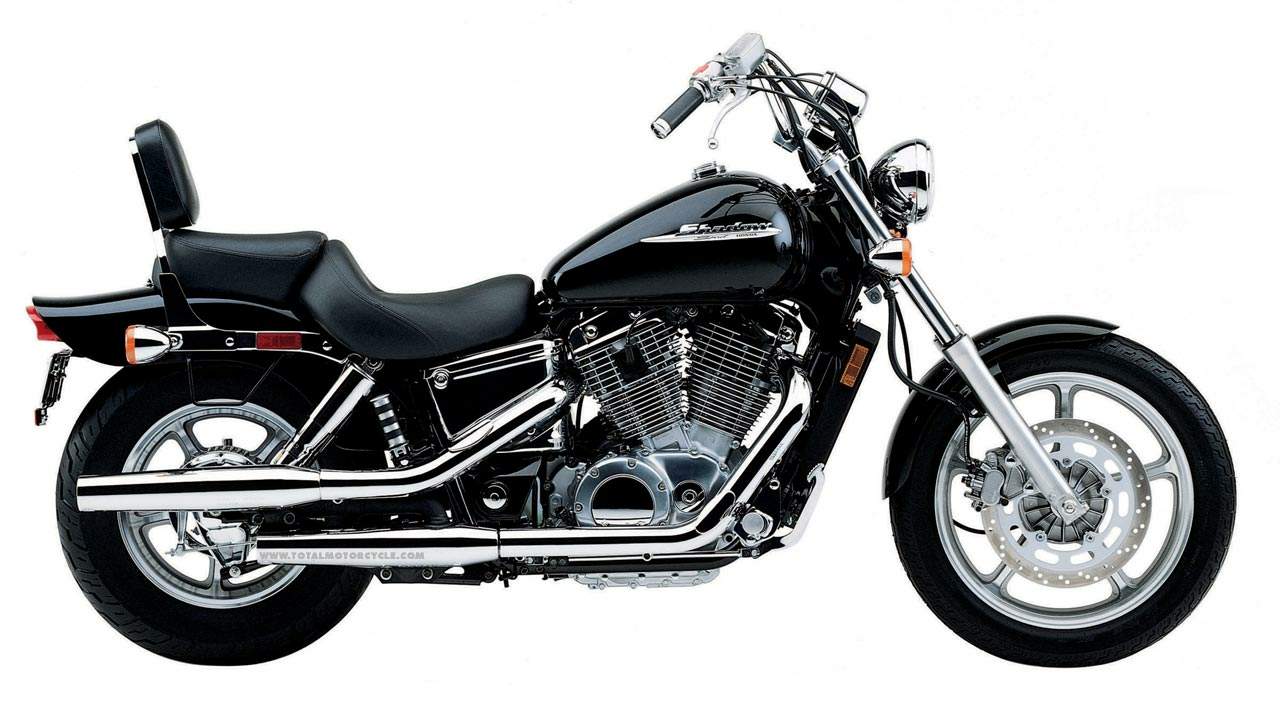

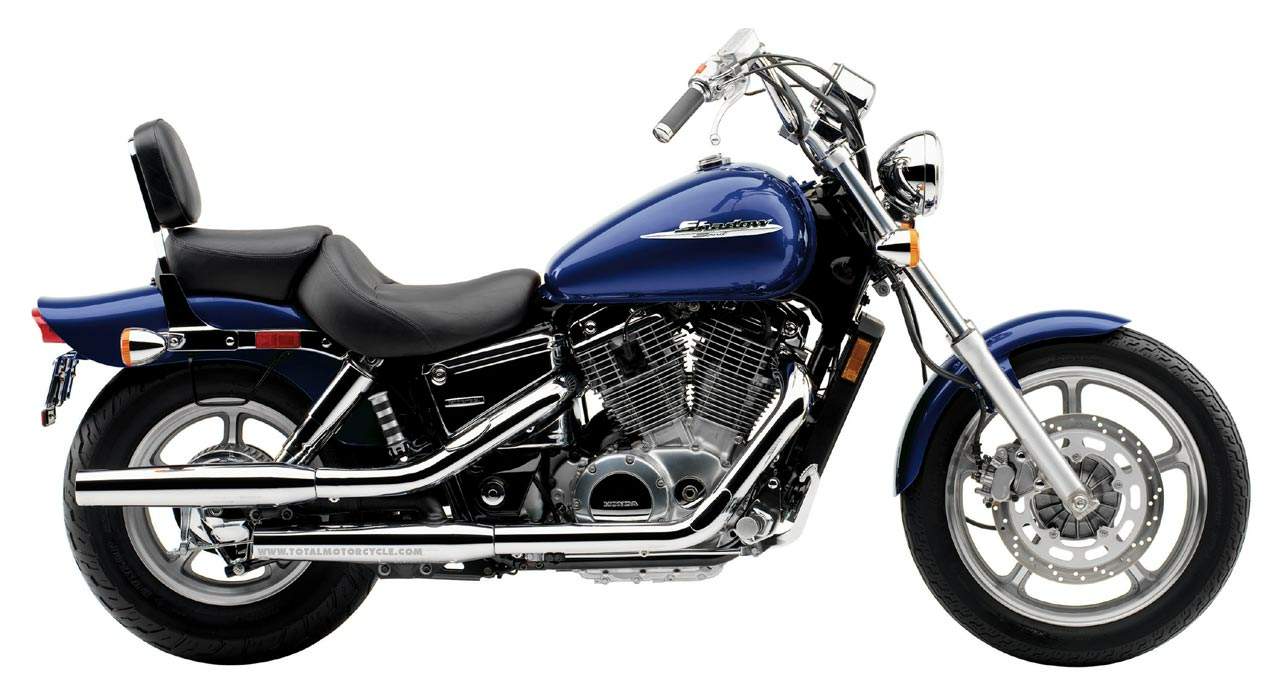

VT 1100C Shadow Spirit |
| Years: |
2007-09 |
|
Engine:
|
Four stroke, 45°V-Twin, OHC, 3 valves per cylinder.
|
|
Capacity:
|
1099 cc / 67.1 cub in.
|
|
Bore x Stroke:
|
87.5 x 91.4 mm
|
|
Compression Ratio:
|
8.5:1
|
|
Cooling System:
|
Liquid cooled
|
|
Oil Capacity:
|
3.8 L / 4 US quarts
|
|
Induction:
|
2 x 36 mm Keihin carbs.
|
|
Ignition:
|
Solid-state digital - two spark plugs per cylinder
|
|
Starting:
|
Electric
|
|
Max Power:
|
67 hp / 49 kW @ 5500 rpm
|
|
Max Torque:
|
91 Nm / 9.27 kgf-m / 67 lb-ft. @ 2700 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Front Suspension:
|
41mm Telescopic forks, 150mm wheel travel
|
|
Rear Suspension:
|
Dual shocks, spring preload adjustable, 100mm wheel travel
|
|
Front Brakes:
|
Single 316mm disc 2 piston caliper
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
110/90-19
|
|
Rear Tyre:
|
170/80-15
|
|
Seat Height:
|
730mm / 28.7 in.
|
|
Dry Weight:
|
250 kg / 553 lbs
|
|
Fuel Capacity:
|
15 Litres / 3.9 US gal
|
