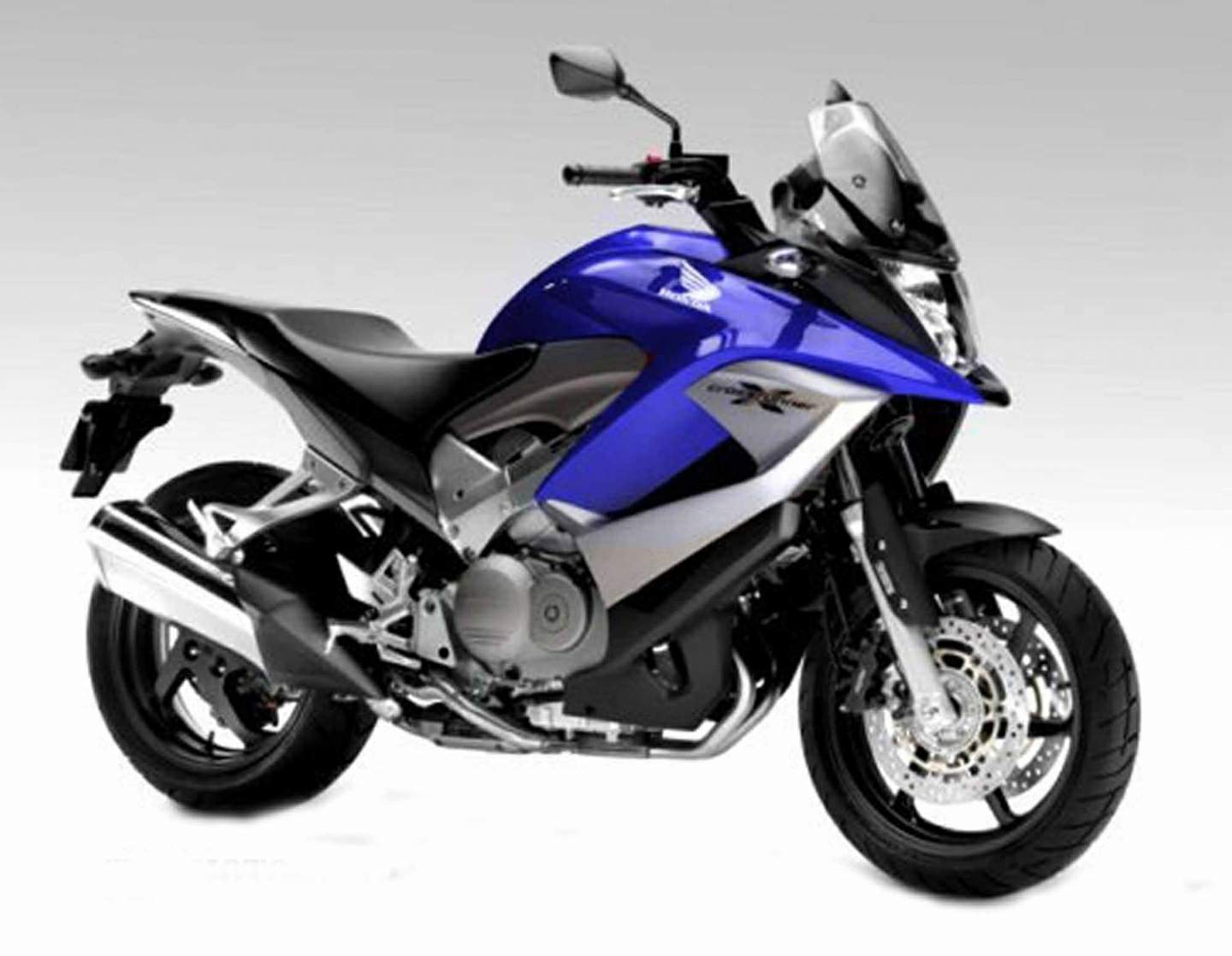

Honda VFR 800X Crossrunner (ED-type) (2014) technical specifications

Honda VFR 800X Crossrunner (ED-type) is produced in 2014. Engine is Four stroke, 90° V-4, SOHC, 4 valve per cylinder, displacement 782 cc / 47.7 cu-in , produces power 74.9 kW / 100.6 hp @ 10000 rpm and 72.8 Nm / 7.34 kg-m @ 9500 rpm. Honda VFR 800X Crossrunner (ED-type) wet weight is 240 kg / 529 lbs. Honda VFR 800X Crossrunner (ED-type) has 6 photos.

Technical specifications

+ Add to 'Compare list'

Model:	VFR 800X Crossrunner (ED-type)
Years:	2014
Engine:	Four stroke, 90° V-4, SOHC, 4 valve per cylinder
Capacity:	782 cc / 47.7 cu-in
Bore x Stroke:	72 x 48 mm
Compression Ratio:	11.6:1
Cooling System:	Liquid cooled
Lubrication:	Wet sump
Induction:	PGM-FI electronic fuel injection, 35mm Throttle Bore
Ignition:	Computer-controlled digital transistorised with electronic advance
Starting:	Electric
Max Power:	74.9 kW / 100.6 hp @ 10000 rpm
Max Torque:	72.8 Nm / 7.34 kg-m @ 9500 rpm
Clutch:	Wet, multiplate with coil springs
Transmission:	6 Speed
Final Drive:	Chain
Gear Ratio:	1st 2.846 (37/13) 2nd 2.062 (33/16) 3rd 1.578 (30/19) 4th 1.291 (31/24) 5th1.111 (30/27) 6th 0.965 (28/29)
Frame:	Aluminium, twin spar
Front Suspension:	43mm cartridge-type telescopic fork with stepless preload adjustment,
Front Wheel Travel:	108 mm / 4.2 in
Rear Suspension:	Pro-Link with gas-charged HMAS damper, 7-step preload and stepless rebound damping adjustment,
Rear Wheel Travel:	119 mm / 4.7 in
Front Brakes:	2x Hydraulic discs 320mm floating, 6-piston radial calipers, Combined-ABS
Rear Brakes:	Single hydraulic 276mm disc 2 piston caliper, Combined-ABS
Front Tyre:	120/70 Z R17
Rear Tyre:	180/55 R17
Rake:	25°
Trail:	96 mm / 3.7 in
Dimensions:	Length 2130 mm / 83.8 in Width 799 mm / 31.4 in Height 1243 mm / 48.9 in
Wheel base:	1464 mm / 57.6in
Seat Height:	816 mm / 32.1 in
Ground Clearance:	140 mm / 5.5 in
Wet Weight:	240 kg / 529 lbs
Fuel Capacity:	21.5 Litres / 5.6 gal
