Technical specifications
|
| Model: |

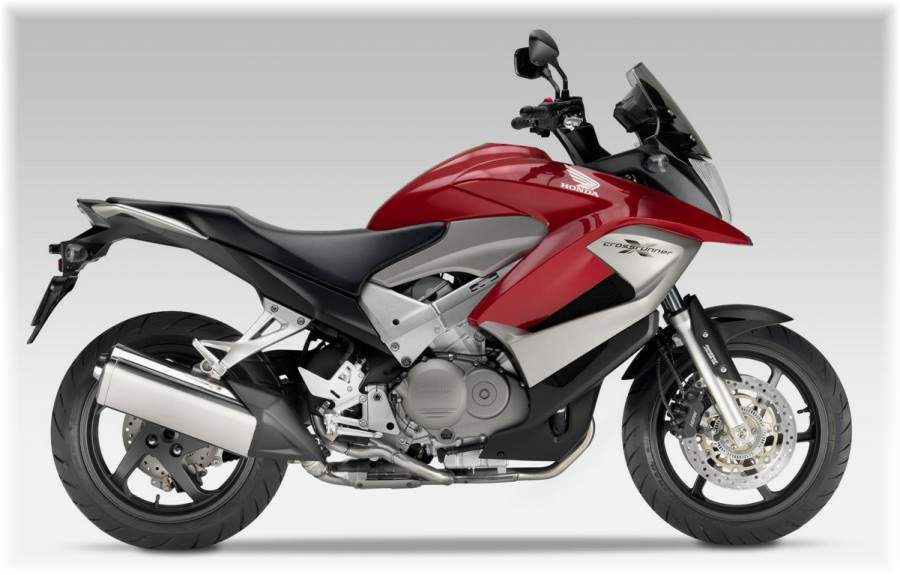

VFR 800X Crossrunner (ED-type) |
| Years: |
2013 |
|
Engine:
|
Four stroke, 90° V-4, SOHC, 4 valve per cylinder
|
|
Capacity:
|
782 cc / 47.7 cu-in
|
|
Bore x Stroke:
|
72 x 48 mm
|
|
Compression Ratio:
|
11.6:1
|
|
Cooling System:
|
Liquid cooled
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
PGM-FI electronic fuel injection, 35mm Throttle Bore
|
|
Ignition:
|
Computer-controlled digital transistorised with electronic advance
|
|
Starting:
|
Electric
|
|
Max Power:
|
74.9 kW / 100.6 hp @ 10000 rpm
|
|
Max Torque:
|
72.8 Nm / 7.34 kg-m @ 9500 rpm
|
|
Clutch:
|
Wet, multiplate with coil springs
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
Chain
|
|
Gear Ratio:
|
1st 2.846 (37/13) 2nd 2.062 (33/16) 3rd 1.578 (30/19) 4th 1.291 (31/24) 5th1.111 (30/27) 6th 0.965 (28/29)
|
|
Frame:
|
Aluminium, twin spar
|
|
Front Suspension:
|
43mm cartridge-type telescopic fork with stepless preload adjustment,
|
|
Front Wheel Travel:
|
108 mm / 4.2 in
|
|
Rear Suspension:
|
Pro-Link with gas-charged HMAS damper, 7-step preload and stepless rebound damping adjustment,
|
|
Rear Wheel Travel:
|
119 mm / 4.7 in
|
|
Front Brakes:
|
2x Hydraulic discs 320mm floating, 6-piston radial calipers, Combined-ABS
|
|
Rear Brakes:
|
Single hydraulic 276mm disc 2 piston caliper, Combined-ABS
|
|
Front Tyre:
|
120/70 Z R17
|
|
Rear Tyre:
|
180/55 R17
|
|
Rake:
|
25°
|
|
Trail:
|
96 mm / 3.7 in
|
|
Dimensions:
|
Length 2130 mm / 83.8 in Width 799 mm / 31.4 in Height 1243 mm / 48.9 in
|
|
Wheel base:
|
1464 mm / 57.6 in
|
|
Seat Height:
|
816 mm / 32.1 in
|
|
Ground Clearance:
|
140 mm / 5.5 in
|
|
Wet Weight:
|
240 kg / 529 lbs
|
|
Fuel Capacity:
|
21.5 Litres / 5.6 gal
|
