Honda VFR 750F-M (1991) technical specifications

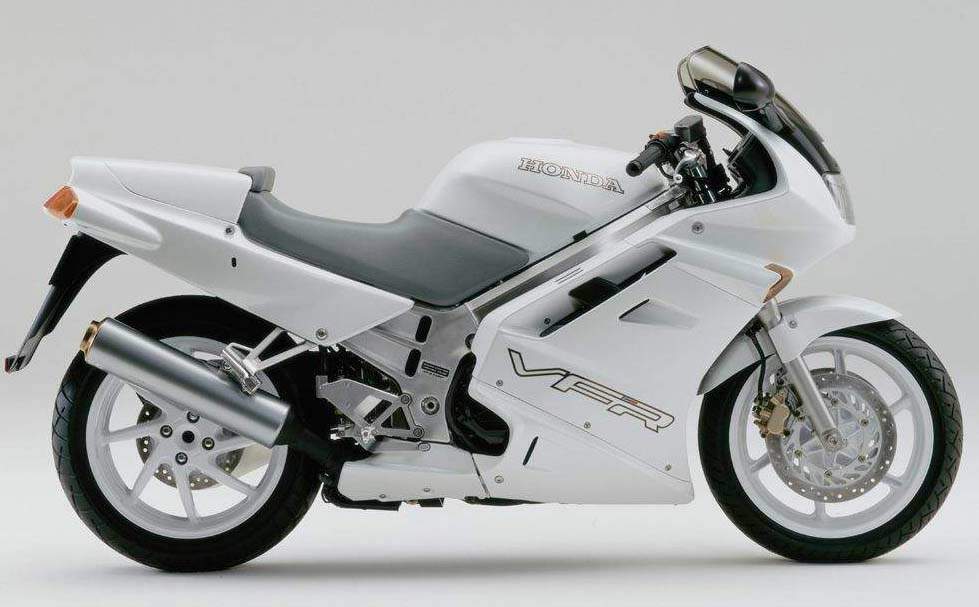

Honda VFR 750F-M is produced in 1991. Engine is Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder, displacement 748 cc / 45.6 cub in , produces power 74 kW / 102 hp @ 9500 rpm and 76.5 Nm / 7.8 kgf-m / 56.4 lb-ft @ 8500 rpm. Honda VFR 750F-M top speed is 239.4 km/h /148.8 mph. Honda VFR 750F-M weighs 216 kg / 476 lbs. Honda VFR 750F-M has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	VFR 750F-M
Years:	1991
Engine:	Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder
Capacity:	748 cc / 45.6 cub in
Bore x Stroke:	70 x 48.6 mm
Cooling System:	Liquid cooled
Compression Ratio:	11.0:1
Lubrication:	Forced pressure and wet sump
Induction:	4x 36 mm Keihin CV carburetors
Ignition:	Digitalized full transistor ignition
Spark Plug:	NGK CR8EH9 or ND U24FER9
Starting:	Electric
Max Power:	74 kW / 102 hp @ 9500 rpm
Max Power Rear Tyre:	65.7 kW / 88.2 hp @ 9800 rpm)
Max Torque:	76.5 Nm / 7.8 kgf-m / 56.4 lb-ft @ 8500 rpm
Clutch:	Wet, multiple discs, cable operated
Transmission:	6 Speed constant mesh
Final Drive:	Chain
Primary Reduction:	1.939 (64/33)
Final Reduction:	(sprockets) 2.6875 (43/16)
Gear Ratio:	1st 2.8461 (37/13) 2nd 2.0625 (33/16) 3rd 1.6315 (31/19) 4th 1.3333 (28/21) 5th 1.1538 (30/26) 6th 1.0357 (29/28):1
Frame:	Twin-spar aluminum diamond
Front Suspension:	41mm Showa cartridge forks, no external adjustment
Front Wheel Travel:	140 mm / 5.5 in
Rear Suspension:	Pro-link single sided swingarm, adjustable preload
Rear Wheel Travel:	130 mm / 5.2 in
Front Brakes:	2 x 296mm discs, 2 piston calipers
Rear Brakes:	Single 256mm disc,1 piston caliper
Front Wheel:	17 x 3.5 in
Rear Wheel:	17 x 3.5 in
Front Tyre:	120/70 VR17
Rear Tyre:	170/60 VR17
Rake:	26°
Trail:	100 mm / 3.9 in
Dimensions:	Length 2180 mm / 85.8 in Width 700 mm / 27.6 in Height 1185 mm / 46.7 in
Wheelbase:	1470 mm / 57.9 in
Ground clearance:	130 mm / 5.1 in
Dry Weight:	216 kg / 476 lbs
Wet Weight:	236 kg / 520 lbs
Fuel Capacity:	19 Litres / 5.0 gal
Reserve:	3.5 Litres / 0.92 gal
Consumption Average:	6.7 L/100/km / 15.0 km/l / 35.2 mpg
Braking 60 km/h / 37 mph - 0:	13.6 m / 44.6 ft
Braking 100 km/h / 62 mph - 0:	36.9 m / 121 ft
Standing ¼ Mile:	11.2 sec / 193.7 km/h / 120.4 mph
Top Speed:	239.4 km/h /148.8 mph
Reviews:	HONDA VFR INTERCEPTOR HISTORY / VFR INFO
Road Test:	Motosprint 1990
