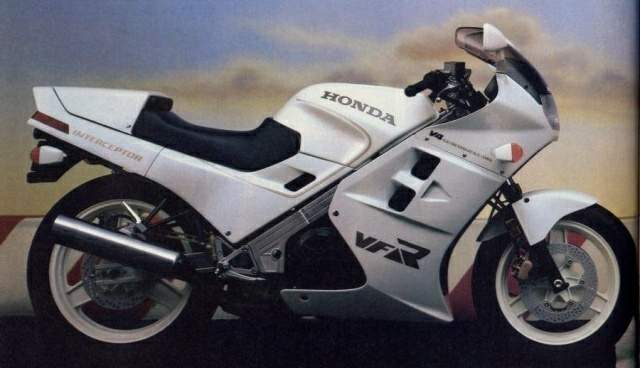

Honda VFR 700F (1986-87) technical specifications

Honda VFR 700F is produced in 1986-87. Engine is Four stroke, 90°V-four cylinder, DOHC, 4 valves per cylinder, displacement 699 cc / 42.6 cu. in , produces power 81 hp / 58 kW @ 10000 rpm and 6.2 kgf-m / 44.8 lb-ft @ 8500 rpm. Honda VFR 700F weighs 221 kg / 487 lbs. Honda VFR 700F has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	VFR 700F
Years:	1986-87
Engine:	Four stroke, 90°V-four cylinder, DOHC, 4 valves per cylinder
Capacity:	699 cc / 42.6 cu. in
Bore x Stroke:	70 x 45.4 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.5:1
Induction:	4x 30mm Keihin carburetors
Ignition:	Transistorize
Starting:	Electric
Max Power:	81 hp / 58 kW @ 10000 rpm
Max Torque:	6.2 kgf-m / 44.8 lb-ft @ 8500 rpm
Transmission:	6 Speed
Final Drive:	Chain
Primary Reduction:	2.031
Final Reduction:	2.813
Gear Ratio:	1st: 2.846 2nd: 2.063 3rd: 1.632 4th: 1.333 5th: 1.154 6th: 1.036
Frame:	Double-down tube, twin beam, aluminum frame; box-section aluminum swing arm
Front Suspension:	Showa 38mm forks 3-way adjustable rebound damping
Front Wheel Travel:	140 mm / 5.5 in
Rear Suspension:	Single Showa air-spring shock 4-way adjustable rebound damping
Rear Wheel Travel:	105 mm / 4.1 in
Front Brakes:	2x 270mm discs 2 piston calipers
Rear Brakes:	Single 288mm disc
Front Tyre:	120/80-16
Rear Tyre:	130/70-18
Rake:	27.5º
Trail:	108 mm / 4.3 in
Wheelbase:	1477mm / 58.1 in
Seat Height:	790 mm / 31.5 in
Ground Clearance:	135 mm / 5.3 in
Dry Weight:	221 kg / 487 lbs
Wet Weight:	229.3 kg / 505.5 lbs.
Fuel Capacity:	15.8 Litres / 4.2 US gal
