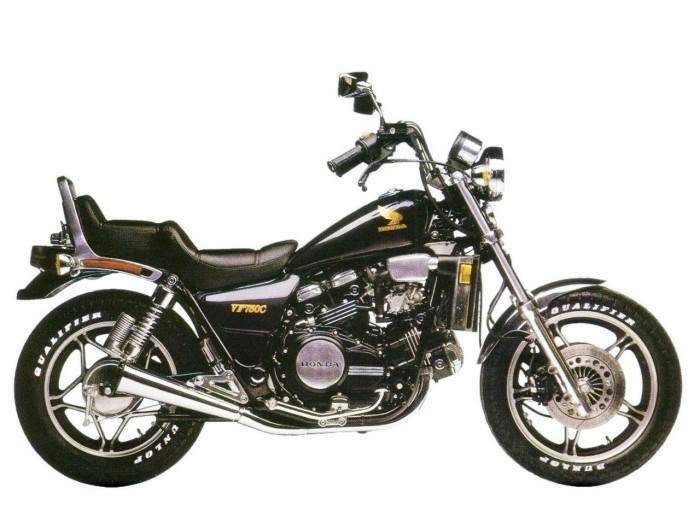

Honda VF 750C Magna V45 (1982-83) technical specifications
Honda VF 750C Magna V45 is produced in 1982-83. Engine is Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder, displacement 748 cc / 45.6 cu-in , produces power 79 hp / 57.6 kW @ 9500 rpm and 66 Nm @ 7500 rpm. Honda VF 750C Magna V45 weighs 228 kg / 502.7 lbs. Honda VF 750C Magna V45 has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | VF 750C Magna V45 |
| Years: | 1982-83 |
| Engine: | Four stroke, 90°V-four cylinder, DOHC, 4 valve per cylinder |
| Capacity: | 748 cc / 45.6 cu-in |
| Cooling System: | Liquid cooled |
| Bore x Stroke: | 70 x 48.6 mm |
| Compression Ratio: | 10.5:1 |
| Lubrication: | Wet sump |
| Induction: | 4x Keihin 32mm carbs |
| Ignition: | Digital transistorized |
| Starting: | Electric |
| Max Power: | 79 hp / 57.6 kW @ 9500 rpm |
| Max Torque: | 66 Nm @ 7500 rpm |
| Clutch: | Wet, multiplate |
| Transmission: | 6 Speed |
| Final Drive: | Shaft |
| Front Suspension: | 39mm Air assisted forks, 4-way anti-dive adjustable |
| Front Wheel Travel: | 120 mm / 4.7 in |
| Rear Suspension: | Dual shocks, spring preload adjustable |
| Rear Wheel Travel: | 100 mm / 3.9 in |
| Front Brakes: | 2x 275mm discs |
| Rear Brakes: | Drum |
| Front Tyre: | 110/90 -18 |
| Rear Tyre: | 130/90 -16 |
| Rake: | 30° |
| Trail: | 104 mm / 4.1 in |
| Wheelbase: | 1539 mm / 60.6 in |
| Seat Height: | 757 mm / 29.8 in |
| Dry Weight: | 228 kg / 502.7 lbs |
| Fuel Capacity: | 13 Litres / 3.4 US gal |
| Consumption Average: | 44.5 mpg |
| Standing ¼ Mile: | 12.2 sec / 109 mph |
