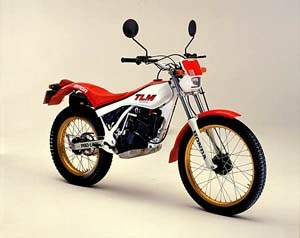

Honda TLM 200R Reflex (1986) technical specifications
Honda TLM 200R Reflex is produced in 1986. Engine is Four-stroke, single cylinder SOHC, 2 valve, displacement 195 cc / 11.9 cu-in , produces power 13 hp / 9.6 kW @ 5000 rpm and 1.9 kgf-m @ 4000 rpm. Honda TLM 200R Reflex wet weight is 89 kg / 196 lbs. Honda TLM 200R Reflex has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | TLM 200R Reflex |
| Years: | 1986 |
| Engine: | Four-stroke, single cylinder SOHC, 2 valve |
| Capacity: | 195 cc / 11.9 cu-in |
| Bore x Stroke: | 65.5 x 57.8 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 7.2:1 |
| Induction: | Single 26mm Keihin carb |
| Ignition: | CDI |
| Starting: | Kick |
| Max Power: | 13 hp / 9.6 kW @ 5000 rpm |
| Max Torque: | 1.9 kgf-m @ 4000 rpm |
| Transmission: | 6 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic forks |
| Rear Suspension: | Swinging arm |
| Front Brakes: | Drum |
| Rear Brakes: | Drum |
| Front Tyre: | 2.75-21 |
| Rear Tyre: | 4.00-18 |
| Wet Weight: | 89 kg / 196 lbs |
| Fuel Capacity: | 6 Litres / 1.58 US gal |
