Honda ST 1300 Pan European (2015) technical specifications

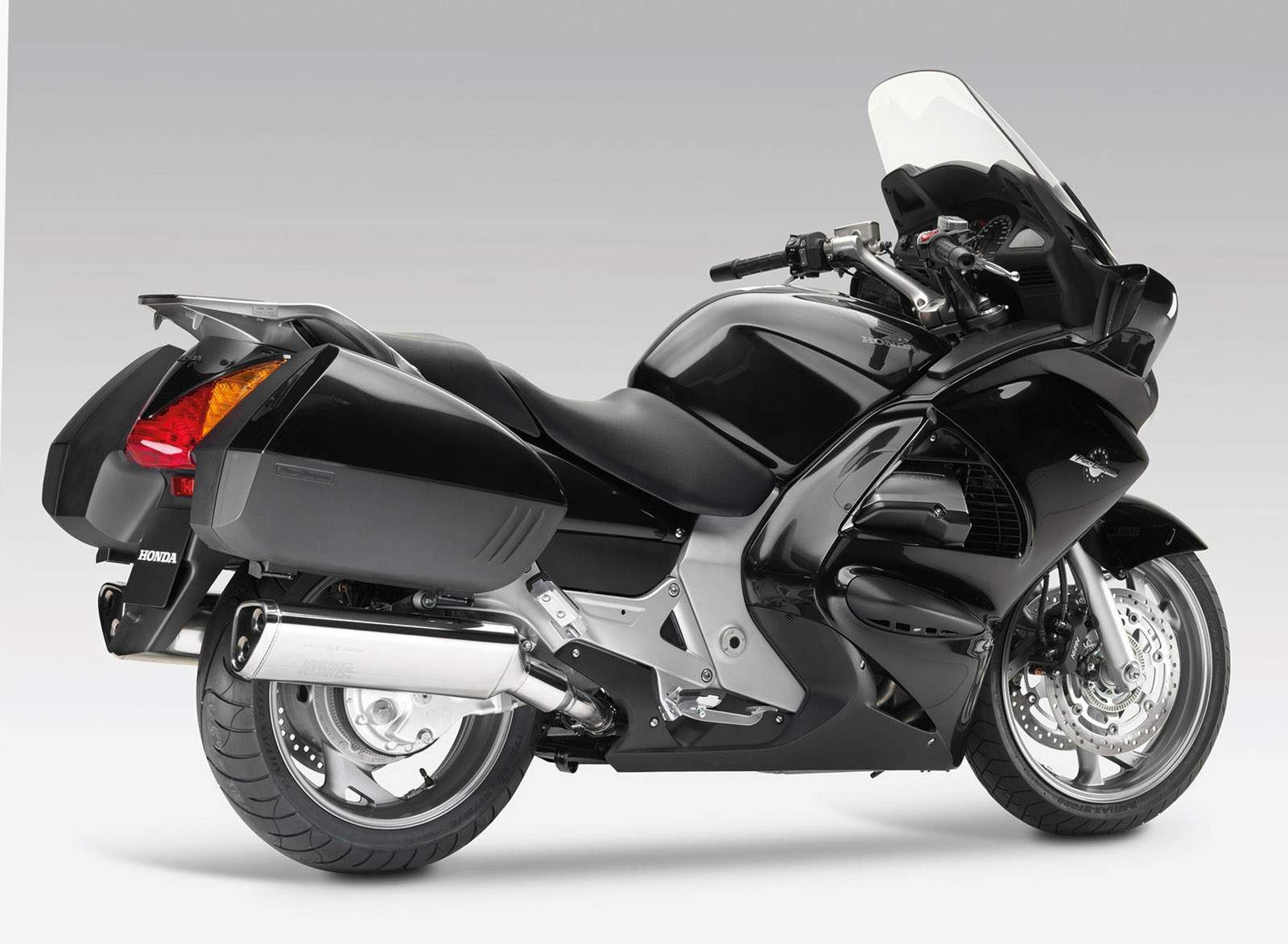

Honda ST 1300 Pan European is produced in 2015. Engine is Four stroke, longitudinally 90°V-four cylinder, DOHC, 4 valve per cylinder, displacement 1261 cc / 76.9 cu-in , produces power 118 hp / 87 kW @ 8000 rpm and 117 Nm / 11.93 kg-m @ 6500 rpm. Honda ST 1300 Pan European top speed is 225 km/h / 139.8 mph. Honda ST 1300 Pan European weighs 286 kg / 631 lbs - ABS 289 kg / 637 lbs. Honda ST 1300 Pan European has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | ST 1300 Pan European |
| Years: | 2015 |
| Engine: | Four stroke, longitudinally 90°V-four cylinder, DOHC, 4 valve per cylinder |
| Capacity: | 1261 cc / 76.9 cu-in |
| Bore x Stroke: | 78 x 66 mm |
| Compression Ratio: | 10.8:1 |
| Cooling System: | Liquid cooled |
| Lubrication: | Wet sump |
| Engine Oil: | Semi-Synthetic,10W/40 |
| Induction: | PGM-FI electronic fuel injection, 36 mm throttle bodies |
| Ignition: | Computer-controlled digital transistorized |
| Spark Plug: | NGK, CR7EH-9 |
| Starting: | Electric |
| Max Power: | 118 hp / 87 kW @ 8000 rpm |
| Max Torque: | 117 Nm / 11.93 kg-m @ 6500 rpm |
| Clutch: | Wet, multiple discs, cable operated |
| Transmission: | 5 Speed |
| Final Drive: | Shaft |
| Frame: | Aluminum-alloy triple-box-section pressure cast dual-spar with cast aluminum-alloy swingarm |
| Front Suspension: | 45mm air-assist telescopic fork |
| Front Wheel Travel: | 117 mm / 4.3 in |
| Rear Suspension: | Single-side conventional damper with adjustable preload and rebound damping |
| Rear Wheel Travel: | 133 mm / 4.8 in |
| Front Brakes: | 2x 310 mm discs 3 piston calipers |
| Rear Brakes: | Single 316 mm disc 3 piston caliper (ABS option available) |
| Front Tyre: | 120/70 ZR18 |
| Rear Tyre: | 170/60 ZR17 |
| Rake: | 26° |
| Trail: | 98 mm / 3.9 in |
| Dimensions: | Length 2282 mm / 89.8 in Width 935 mm / 36.8 in - including panniers Height 1332 mm / 52.4 in |
| Wheelbase: | 1491 mm / 58.7 in |
| Seat Height: | 790 mm / 31.1 in |
| Dry Weight: | 286 kg / 631 lbs - ABS 289 kg / 637 lbs |
| Wet Weight: | 331 kg / 730 lbs |
| Fuel Capacity: | 29 Liters / 7.7 US gal |
| Consumption Average: | 19.8 km/lit / 46.7 mp/g |
| Standing ¼ Mile: | 11.6 sec |
| Top Speed: | 225 km/h / 139.8 mph |
