Technical specifications
|
| Model: |

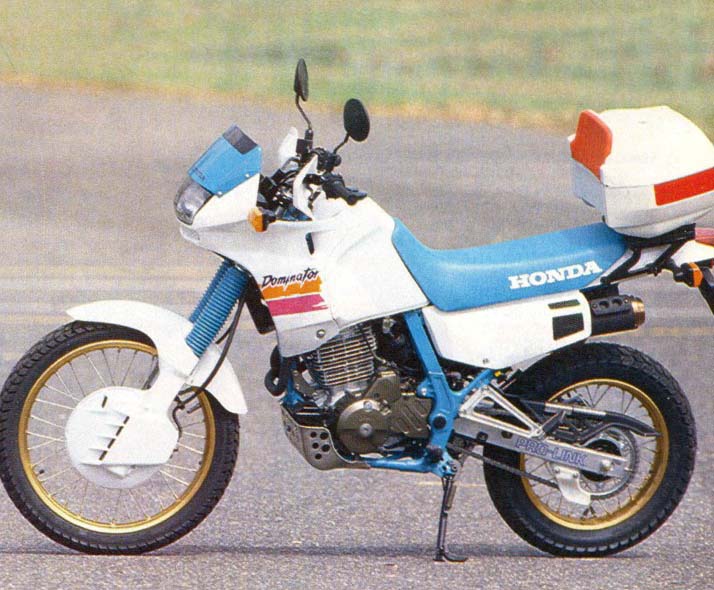

NX 650 Dominator |
| Years: |
1991 |
|
Engine:
|
Four-stroke, single cylinder, SOHC, 4 valve per cylinder
|
|
Capacity:
|
644 cc / 39.2 cu-in
|
|
Bore x Stroke:
|
100 x 82 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
8.3:1
|
|
Induction:
|
Single 40mm Keihin VE-type carb
|
|
Ignition:
|
Digital CDI
|
|
Starting:
|
Electric
|
|
Spark Plug:
|
NGK, DPR 8EA-9
|
|
Engine Oil:
|
Semi-Synthetic, 10W/40
|
|
Max Power:
|
45 hp / 33.5 kW @ 6000 rpm
|
|
Max Torque:
|
53 Nm / 5.7 kgf-m @ 5000 rpm
|
|
Clutch:
|
Wet, multiple discs, cable operated
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Steel, Single cradle frame
|
|
Front Suspension:
|
41mm leading-axle fork
|
|
Front Wheel Travel:
|
220 mm / 8.6 in
|
|
Rear Suspension:
|
Pro-Link,
|
|
Rear Wheel Travel:
|
195 mm / 7.6 in
|
|
Front Brakes:
|
Single 256mm disc 2 piston caliper
|
|
Rear Brakes:
|
Single 220mm disc 1 piston caliper
|
|
Front Tyre:
|
90/90–21
|
|
Rear Tyre:
|
120/90–17
|
|
Fork Angle:
|
62°
|
|
Trail:
|
115 mm / 4.5 in
|
|
Wheelbase:
|
1435 mm / 56.4 in
|
|
Seat Height:
|
870 mm / 24.2 in
|
|
Ground Clearance:
|
250 mm / 9.8 in
|
|
Dry Weight:
|
163 kg / 359.3 lbs
|
|
Wet Weight:
|
178 kg / 392.4 lbs
|
|
Fuel Capacity:
|
16 Litres / 4.2 US gal
|
|
Consumption Average:
|
17.8 km/lit
|
|
Braking 60 - 0 / 100 - 0:
|
13.8 m / 40.4 m
|
|
Standing ¼ Mile:
|
13.9 sec / 147.8 km/h
|
|
Top Speed:
|
160.8 km/h / 100 mph
|
|
Road Test:
|
Motosprint Group Test 1990
|
