Honda NX 400i Falcon (2012-) technical specifications

Honda NX 400i Falcon technical specifications

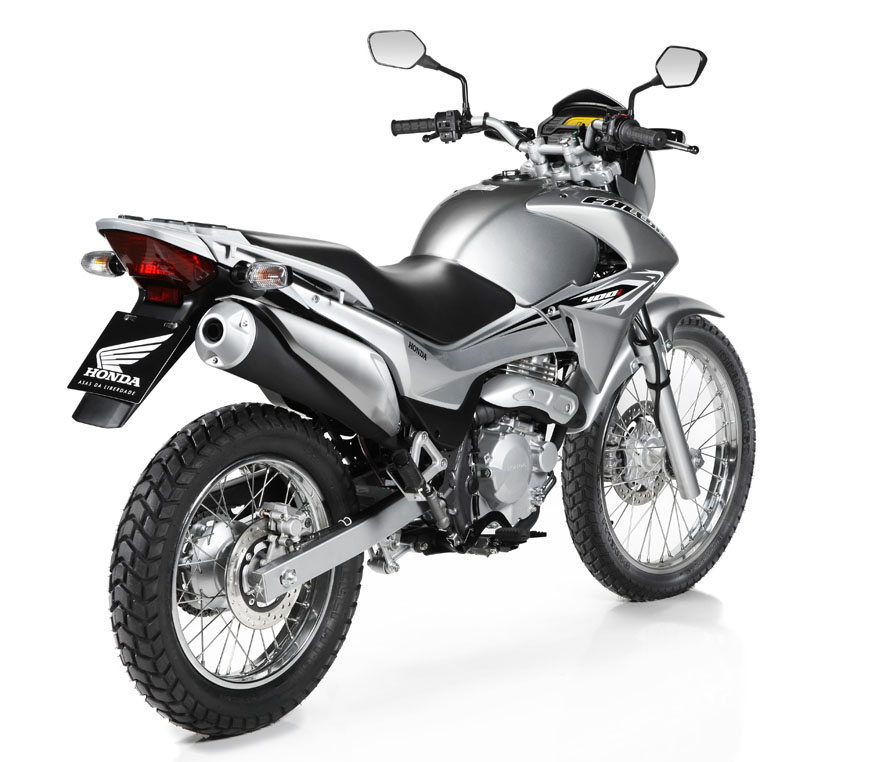

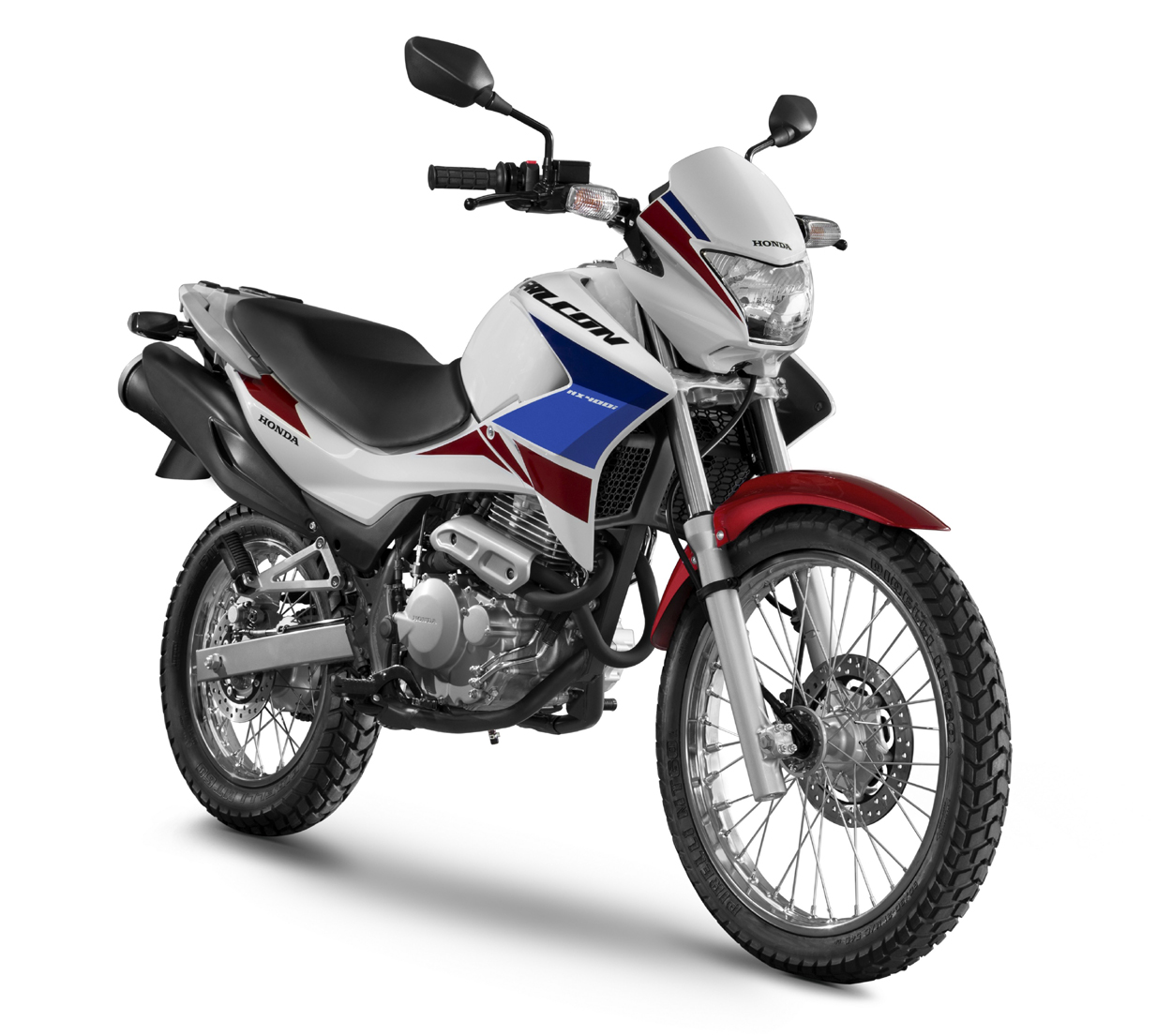

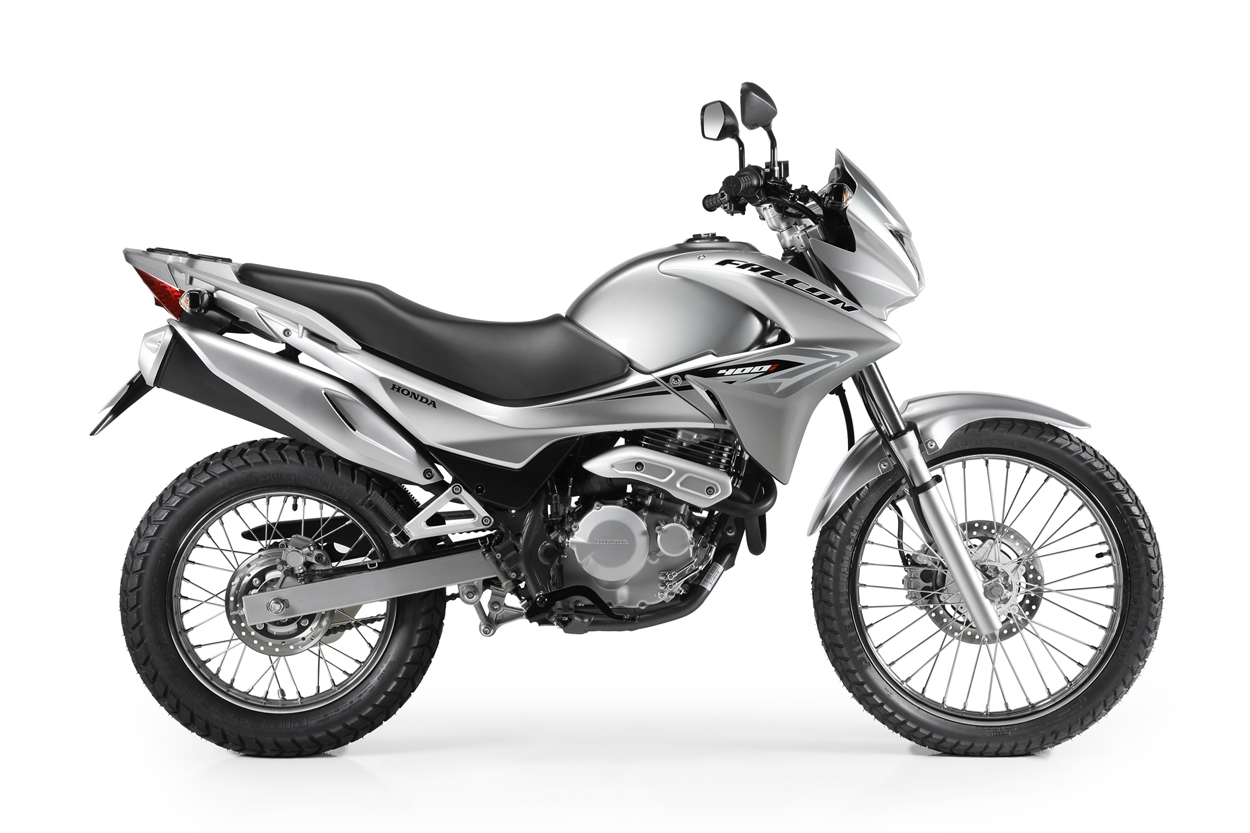

Honda NX 400i Falcon is produced in 2012-. Engine is Four stroke, single cylinder, OHC RFVC, 4 valves, displacement 397.2 cc m / 24.2 cu-in , produces power 28.7 hp / 21.4 kW @ 6500 rpm and 3.27 kg-fm / 23.65 lb-ft @ 6000 rpm. Honda NX 400i Falcon weighs 157 kg / 346 lbs. Honda NX 400i Falcon has 3 photos.

Technical specifications

+ Add to 'Compare list'
Model: NX 400i Falcon
Years: 2012-
Engine: Four stroke, single cylinder, OHC RFVC, 4 valves
Capacity: 397.2 cc m / 24.2 cu-in
Bore x Stroke: 85 x 70 mm
Cooling System: Air cooled
Compression Ratio: 8.8:1
Induction: Fuel injection
Ignition: CDI
Battery: 12V 10Ah
Starting: Electric
Max Power: 28.7 hp / 21.4 kW @ 6500 rpm
Max Torque: 3.27 kg-fm / 23.65 lb-ft @ 6000 rpm
Transmission: 5 Speed
Final Drive: Chain
Frame: Tubular semi-double steel cradle
Front Suspension: Telescopic forks
Front Wheel Travel: 220 mm / 8.6 in
Rear Suspension: Pro-link monoshock
Rear Wheel Travel: 195 mm / 7.6 in
Front Brakes: Single 256mm disc 2 piston calipers
Rear Brakes: Single 220mm disc 1 piston caliper
Front Tyre: 90/90-21
Rear Tyre: 120/90-17
Caster: 26.45°
Trail: 102 mm / 4 in
Dimensions: Length: 2147 mm / 84.5 in Width 789 mm / 31.0 in Height 1210 mm / 47.6 in
Wheelbase: 1434 mm / 56.4 in
Seat Height: 850 mm / 33.4 in
Dry Weight: 157 kg / 346 lbs
Fuel Capacity: 15 Litres / 4.0 US gal
