Technical specifications
|
| Model: |

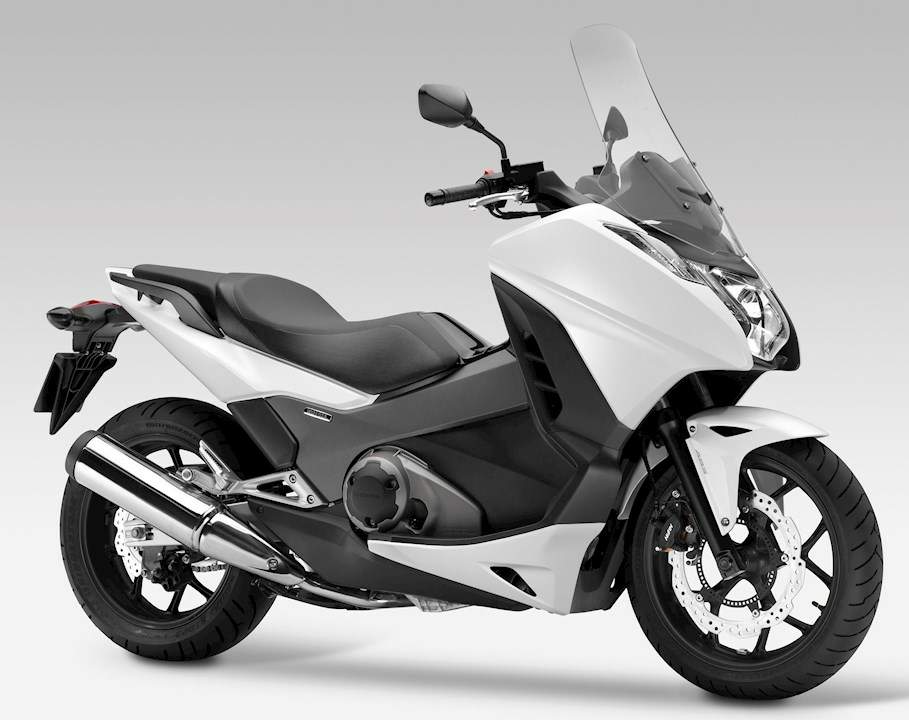

NC 750D Integra |
| Years: |
2014-16 |
|
Engine:
|
Four stroke , Parallel twin, SOHC, 4 valves per cylinder
|
|
Capacity:
|
745 cc / 45.4 cu-in
|
|
Bore x Stroke:
|
77 x 80mm
|
|
Cooling System:
|
Liquid-cooled
|
|
Compression Ratio:
|
10.7:1
|
|
Induction:
|
PGM-FI electronic fuel injection
|
|
Ignition:
|
Computer-controlled digital transistorised with electronic advance
|
|
Starting:
|
Electric
|
|
Max Power:
|
40.3 kW / 54 hp @ 6250 rpm
|
|
Max Torque:
|
68 Nm / 50.8 lb-ft@ 4750 rpm
|
|
Clutch:
|
Wet Multiplate
|
|
Clutch DCT:
|
Wet multiplate hydraulic 2-clutch
|
|
Transmission:
|
6 Speed Manual
|
|
Transmission DCT:
|
6-Speed Dual Clutch Transmission
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Rigid tube steel diamond
|
|
Front Suspension:
|
41 mm telescopic forks
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Single monoshock damper
|
|
Rear Wheel Travel:
|
120 mm / 4.7 in
|
|
Front Brakes:
|
Single 320 mm hydraulic disc 3 piston calipers and sintered metal pads
|
|
Rear Brakes:
|
Single 240 mm hydraulic disc 1 piston caliper and sintered metal pads
|
|
ABS System:
|
2 channel ABS
|
|
Front Tyre:
|
120/70ZR17M/C (58W)
|
|
Rear Tyre:
|
160/60ZR17M/C (69W)
|
|
Rake:
|
27˚
|
|
Trail:
|
110 mm / 4.3 in
|
|
Wheelbase:
|
1525 mm / 60.0 in
|
|
Seat Height:
|
790 mm (Europe) - 775 mm (Japan)
|
|
Weight:
|
238 kg / 520 lbs
|
|
Fuel Capacity:
|
14.1 Litres / 3.7 US gal
|
