Honda NC 700X / DCT (2016-17) technical specifications

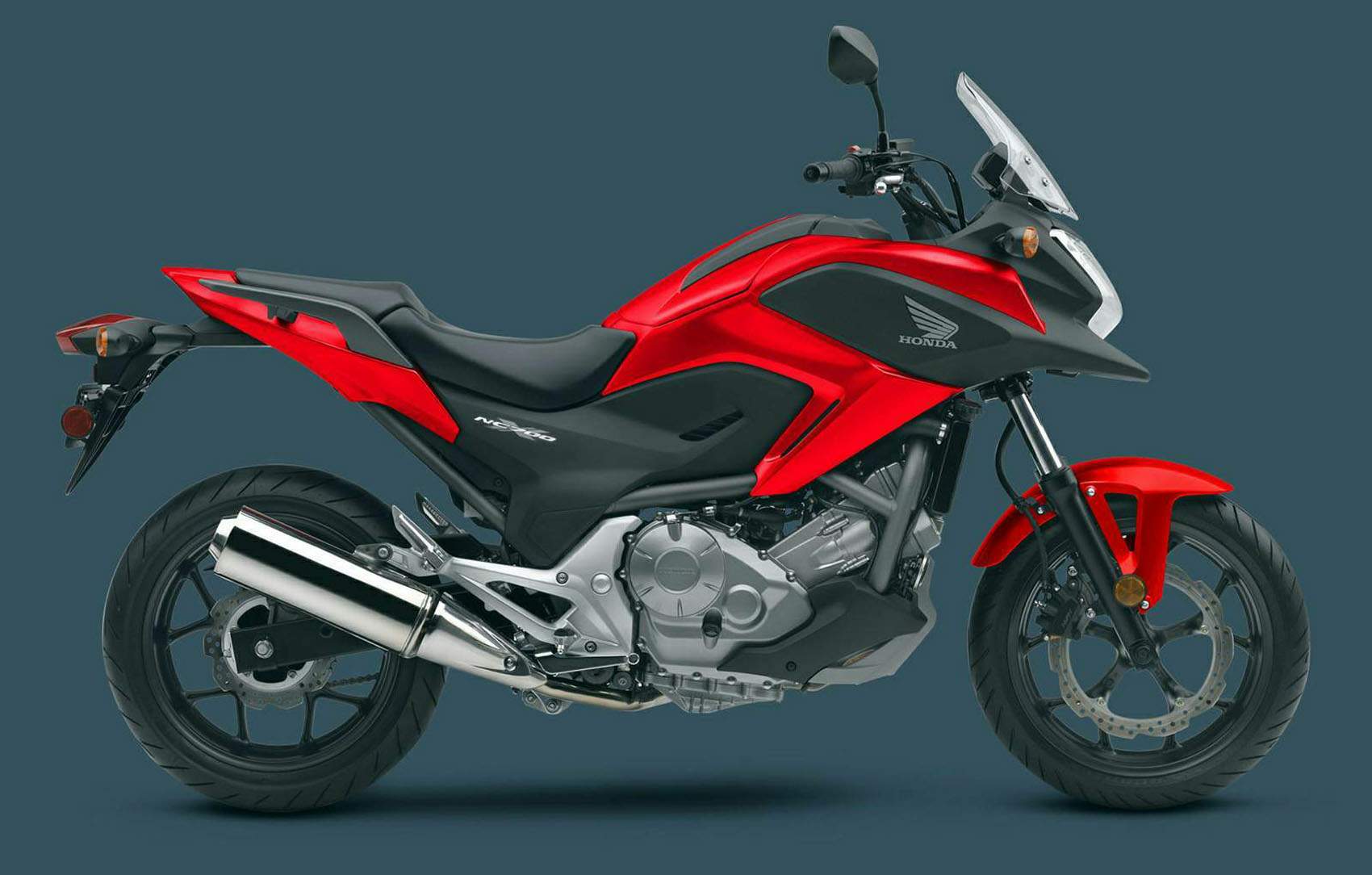

Honda NC 700X / DCT is produced in 2016-17. Engine is Four stroke , Parallel twin, SOHC, 4 valves per cylinder, displacement 670 cc / 40.8 cu-in , produces power 38.1 kW 51.1 hp @ 6250 rpm and 62 Nm 46 lb-ft @ 4750 rpm. Honda NC 700X / DCT wet weight is 218 kg / 480.6 in. Honda NC 700X / DCT has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | NC 700X / DCT |
| Years: | 2016-17 |
| Engine: | Four stroke , Parallel twin, SOHC, 4 valves per cylinder |
| Capacity: | 670 cc / 40.8 cu-in |
| Bore x Stroke: | 73 × 80 mm |
| Cooling System: | Liquid-cooled |
| Compression Ratio: | 10.7:1 |
| Induction: | PGM-FI electronic fuel injection |
| Ignition: | Computer-controlled digital transistorised with electronic advance |
| Starting: | Electric |
| Max Power: | 38.1 kW 51.1 hp @ 6250 rpm |
| Max Torque: | 62 Nm 46 lb-ft @ 4750 rpm |
| Clutch: | Wet Multiplate |
| Clutch DCT: | Wet multiplate hydraulic 2-clutch |
| Transmission: | 6 Speed Manual |
| Transmission DCT: | 6-Speed Dual Clutch Transmission |
| Final Drive: | Chain |
| Gear Ratio: | 1 2.812 (DCT 2.666) 2 1.894 (DCT 1.904) 3 1.454 (DCT 1.454) 4 1.200 (DCT 1.200) 5 1.033 (DCT 1.033) 6 0.837 (DCT 0.837) |
| Final Reduction: | 2.687 (DCT 2.437) |
| Frame: | Rigid tube steel diamond |
| Front Suspension: | 41 mm telescopic forks |
| Front Wheel Travel: | 153 mm / 6.0 in |
| Rear Suspension: | Single monoshock damper |
| Rear Wheel Travel: | 150 mm / 5.9 in |
| Front Brakes: | Single 320 mm hydraulic disc 3 piston calipers and sintered metal pads |
| Rear Brakes: | Single 240 mm hydraulic disc 1 piston caliper and sintered metal pads |
| Front Tyre: | 120/70-ZR17 |
| Rear Tyre: | 160/60-ZR17 |
| Rake: | 27˚ |
| Trail: | 110 mm / 4.3 IN |
| Dimensions: | Length 2210 mm / 87.0 in Wedth 830 mm / 32.7 in Height 1285 mm / 50.6 in |
| Wheelbase: | 1540 mm / 60.6 in |
| Seat Height: | 790 mm (Europe) - 775 mm (Japan) |
| Ground Clearance: | 165 mm / 6.5 in |
| Wet Weight: | 218 kg / 480.6 in |
| Fuel Capacity: | 14.1 Litres / 3.7 US gal |
