Technical specifications
|
| Model: |

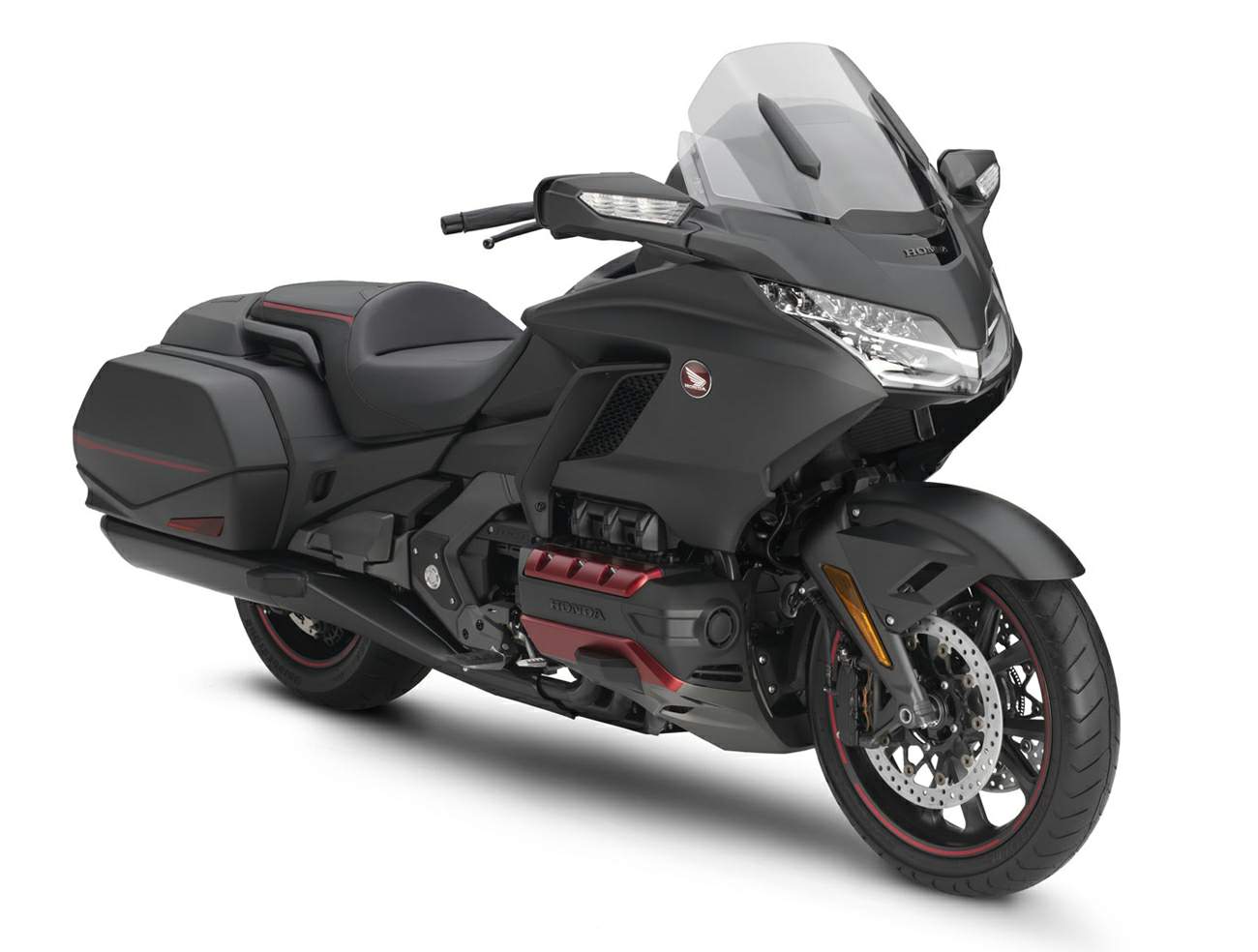

GLX 1800 Gold Wing / DCT |
| Years: |
2018 |
|
Engine:
|
Four stroke, opposed boxer six cylinders, SOHC, 4-valve per cylinder, finger-follower rocker arm on intake, roller-rocker arm on exhaust
|
|
Capacity:
|
1833 cc / 111.85 cub in.
|
|
Bore x Stroke:
|
73 x 73 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.5:1
|
|
Induction:
|
EFI, 50mm throttle body
|
|
Ignition:
|
Computer controlled digital
|
|
Battery:
|
12V/20AH
|
|
Starting:
|
Electric
|
|
Max Power:
|
118 hp / 86.1 kW) @ 5500 rpm
|
|
Max Torque:
|
167 Nm / 123.2 ft-lb @ 4000 rpm
|
|
Clutch:
|
Hydraulic, wet, multiplate with coil springs
|
|
Transmission:
|
6-speed manual or 7-speed automatic DCT w/ Walking Mode F/R
|
|
Final Drive:
|
Shaft
|
|
Front Suspension:
|
Double-wishbone front-suspension system w/Showa shock absorber
|
|
Front Wheel Travel:
|
110 mm / 4.3 in
|
|
Rear Suspension:
|
Pro-Link system w/ Showa shock absorber
|
|
Rear Wheel Travel:
|
104 mm / 4.1 in
|
|
Front Brakes:
|
2x 320mm discs 6-piston Nissin calipers
|
|
Rear Brakes:
|
Single 316mm disc 3-piston Nissin caliper
|
|
ABS:
|
Electronically controlled combined ABS
|
|
Front Tyre:
|
130/7018
|
|
Rear Tyre:
|
200/55-R16
|
|
Rake l:
|
30.5°
|
|
Trail:
|
110mm / 4.3 in
|
|
Wheelbase:
|
1694 mm / 66.7 in
|
|
Seat Height:
|
744.2 mm / 29.3 in
|
|
Wet Weight:
|
357 kg / 787 lbs - DCT 363 kg / 800 lbs
|
|
Fuel Capacity:
|
20.8 Litres / 5.5 US gal
|
