Honda GL 500 Silver Wing (1978-82) technical specifications

Honda GL 500 Silver Wing technical specifications

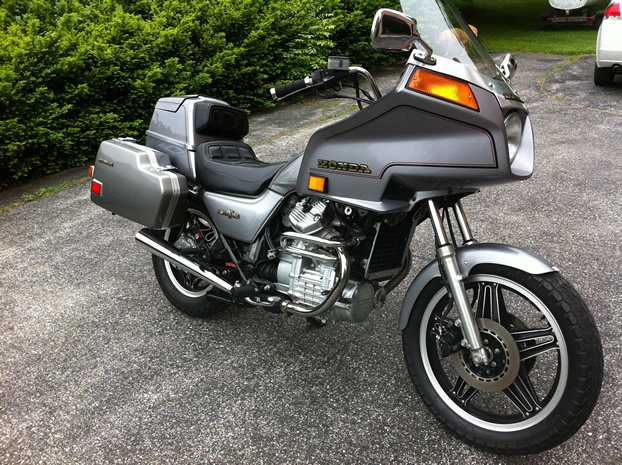

Honda GL 500 Silver Wing is produced in 1978-82. Engine is Four-stroke. longitudinal 800 V-twin, SOHC 4 valves per cylinder operated by pushrods, displacement 496.8 cc / 30.3 cub in. , produces power 37.3 kW / 50 hp @ 9000 rpm and 46 Nm / 4.69 kgf-m / 33.9 lb-ft @ 7000 rpm. Honda GL 500 Silver Wing top speed is 175.4 km/h / 109 mph. Honda GL 500 Silver Wing wet weight is 240 kg / 529 lbs. Honda GL 500 Silver Wing has 2 photos.

Technical specifications

+ Add to 'Compare list'
Model: GL 500 Silver Wing
Years: 1978-82
Engine: Four-stroke. longitudinal 800 V-twin, SOHC 4 valves per cylinder operated by pushrods
Capacity: 496.8 cc / 30.3 cub in.
Bore x Stroke: 78 x 52 mm
Compression Ratio: 10.0:1
Cooling System: Liquid cooled
Induction: 2 x 34mm Keihin carburetors
Ignition: Transistor
Starting: Electric
Max Power: 37.3 kW / 50 hp @ 9000 rpm
Max Torque: 46 Nm / 4.69 kgf-m / 33.9 lb-ft @ 7000 rpm
Transmission: 5 Speed
Final Drive: Shaft
Front Suspension: Telescopic coil spring air assisted
Rear Suspension: Swing arm compound linkage to single shock
Front Brakes: 2 x 240mm discs, 2 piston calipers
Rear Brakes: Drum
Front Tyre: 2.15-19
Rear Tyre: 130/90-16
Wet Weight: 240 kg / 529 lbs
Fuel Capacity: 17.5 Litres / 4.62 US gal
Reserve: 2.6L / 0.69 US gal
Consumption average: 5.1 L/100 km / 19.7 km/l / 46.3 mpg
Braking 100 km/h - 0: 44.2 m / 145 ft
Standing ¼ Mile: 15.0 sec / 134.2 km/h / 83.4 mph
Top Speed: 175.4 km/h / 109 mph
