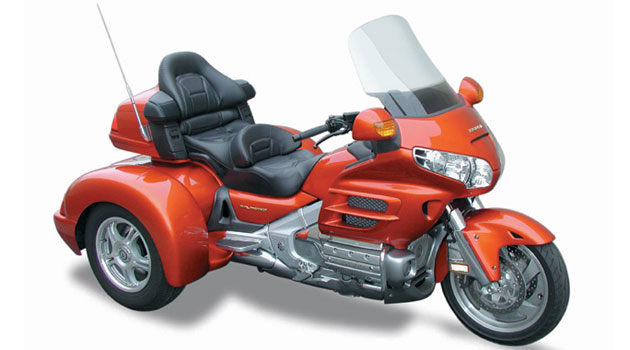

Honda GL 1800 Gold Wing F6B Delux (2015-16) technical specifications

Honda GL 1800 Gold Wing F6B Delux is produced in 2015-16. Engine is Four stroke, opposed boxer six cylinders, SOHC, 2 valve per cylinder, displacement 1832 cc / 111.8 cub in. , produces power 86 kW / 118 hp @ 5500 rpm and 167 Nm / 17.03 kgf-m / 120.9 lb-ft @ 4000 rpm. Honda GL 1800 Gold Wing F6B Delux wet weight is 410 kg / 904 lbs. Honda GL 1800 Gold Wing F6B Delux has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	GL 1800 Gold Wing F6B Delux
Years:	2015-16
Engine:	Four stroke, opposed boxer six cylinders, SOHC, 2 valve per cylinder
Capacity:	1832 cc / 111.8 cub in.
Bore x Stroke:	74 x 71 mm
Cooling System:	Liquid cooled
Compression Ratio:	9.8:1
Induction:	PGM-FI electronic fuel injection, 40mm throttle bore with automatic choke
Ignition:	Computer controlled digital
Starting:	Electric
Max Power:	86 kW / 118 hp @ 5500 rpm
Max Torque:	167 Nm / 17.03 kgf-m / 120.9 lb-ft @ 4000 rpm
Clutch:	Hydraulic
Transmission:	5 Speed
Final Drive:	Shaft
Gear Ratio:	1st 2.375 (38/16) / 2nd 1.454 (32/22) / 3rd 1.068 (31/29) / 4th 0.843 (27/32) 5th 0.686 (24/35)
Front Suspension:	45 mm fork with anti-dive system
Front Wheel Travel:	140 mm / 5.5 in.
Rear Suspension:	Pro Arm single-side swingarm with Pro-Link: electronically controlled spring preload adjustment with two memory presets
Rear Wheel Travel:	104 mm / 4.1 in.
Front Brakes:	2 x 296 mm discs, 3 piston calipers
Rear Brakes:	Single 316 mm disc, 3 piston caliper
Front Tyre:	130/70 R18
Rear Tyre:	180/60 R16
Rake:	29.15°
Trail:	109mm / 4.3 in
Wheelbase:	1689 mm / 66.5 in
Seat Height:	740 mm / 29.1 in
Wet Weight:	410 kg / 904 lbs
Fuel Capacity:	25 Litres / 6.8 US gal
