Technical specifications
|
| Model: |

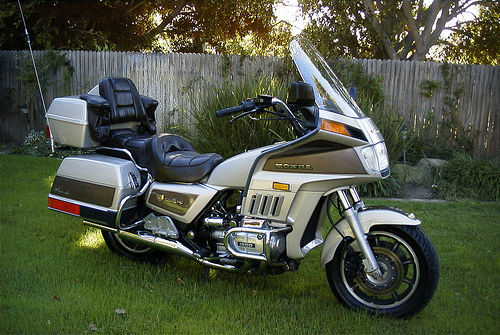

GL 1200 Gold Wing Aspencade SE 10th Anniversary |
| Years: |
1985 |
|
Engine:
|
Four stroke, Opposed boxer four cylinders, SOHC, 2 valve per cylinder
|
|
Capacity:
|
1182 cc / 72.1 cub in.
|
|
Bore x Stroke:
|
75.5 x 66 mm
|
|
Compression Ratio:
|
9.0:1
|
|
Cooling System:
|
Liquid cooled
|
|
Induction:
|
4x 32 mm Keihin carburetors
|
|
Ignition:
|
Electronic
|
|
Starting:
|
Electric
|
|
Max Power:
|
70.1 kW / 94 hp @ 7000 rpm
|
|
Max Power Rear Tyre:
|
62.6 kW / 83.9 hp @ 7250 rpm
|
|
Max Torque:
|
104.9 Nm / 10.7 kgf-m / 77.4 lb-ft @ 5500 rpm
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Shaft
|
|
Front Suspension:
|
Telescopic with air assisted spring and 4-position anti-dive.
|
|
Front Wheel Travel:
|
140 mm / 5.5 in.
|
|
Rear Suspension:
|
Twin adjustable shocks
|
|
Rear Wheel Travel:
|
100 mm / 3.9 in.
|
|
Front Brakes:
|
2 x 276 mm discs, 2 piston calipers
|
|
Rear Brakes:
|
Single 296 mm disc, 2 piston caliper
|
|
Front Tyre:
|
130/90 H16
|
|
Rear Tyre:
|
150/90 H15
|
|
Rake:
|
30°
|
|
Trail:
|
120 mm / 4.6 in.
|
|
Length:
|
2355 mm / 92.7 in.
|
|
Wheelbase:
|
1610 mm / 63.4 in.
|
|
Seat Height:
|
780 mm / 30.7 in.
|
|
Dry-Weight:
|
330 kg / 728 lbs
|
|
Fuel Capacity:
|
22 Litres / 5.8 US gal
|
|
Consumption Average:
|
5.7 L/100 km / 17.4 km/l / 41 US mpg
|
|
Standing ¼ Mile:
|
13.3 sec 145 km/h / 90 mph
|
|
Top Speed:
|
243 km/h / 151 mp/h
|
|
