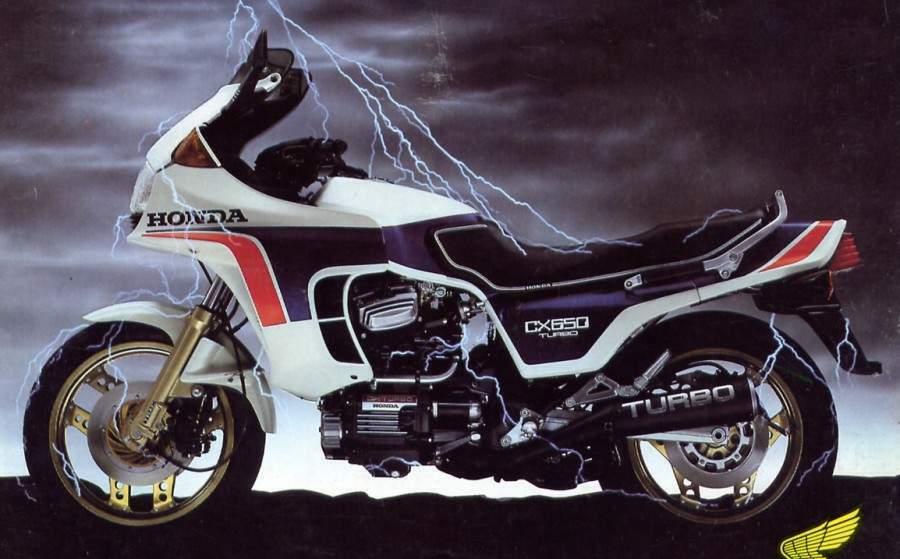

Honda CX 650TC Turbo (1983) technical specifications

Honda CX 650TC Turbo is produced in 1983. Engine is Turbo charged, four stroke, longitudinal 800 V-twin cylinder, camshaft nestles at the base of the V between the cylinders. ,OHV, 4 valves per cylinder operated by pushrods, displacement 647 cc / 39.4 cu-in , produces power 100 hp / 73 kW @ 8000 rpm and 93 Nm / 68.5 lb-ft @ 6000 rpm. Honda CX 650TC Turbo top speed is 200 km/h / 125 mph. Honda CX 650TC Turbo wet weight is 260 kg / 572 lbs.. Honda CX 650TC Turbo has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CX 650TC Turbo
Years:	1983
Engine:	Turbo charged, four stroke, longitudinal 800 V-twin cylinder, camshaft nestles at the base of the V between the cylinders. ,OHV, 4 valves per cylinder operated by pushrods
Capacity:	647 cc / 39.4 cu-in
Bore x Stroke:	82.5 x 63 mm
Cooling System:	Liquid cooled
Compression Ratio:	7.8:1
Induction:	Computerized digital fuel injection
Ignition:	Electronic
Starting:	Electric
Max Power:	100 hp / 73 kW @ 8000 rpm
Max Torque:	93 Nm / 68.5 lb-ft @ 6000 rpm
Clutch:	Wet, multi-plate, 5-speed
Transmission:	5 Speed
Final Drive:	Shaft, 3.400:1
Front Suspension:	37mm Showa, adjustments for TRAC anti-dive and air pressure
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Honda Pro-Link, one Showa damper, adjustment for air pressure and rebound damping
Rear Wheel Travel:	104 mm / 4.1 in
Front Brakes:	2x 280mm discs
Rear Brakes:	Single 300mm disc
Front Tyre:	100/90 V18
Rear Tyre:	120/90 V17
Wet-Weight:	260 kg / 572 lbs.
Fuel Capacity:	20 Litres / 5.3 gal
Consumption Average:	47 mpg
Standing ¼ Mile:	11.9 sec / 112.4 mph
Top Speed:	200 km/h / 125 mph
