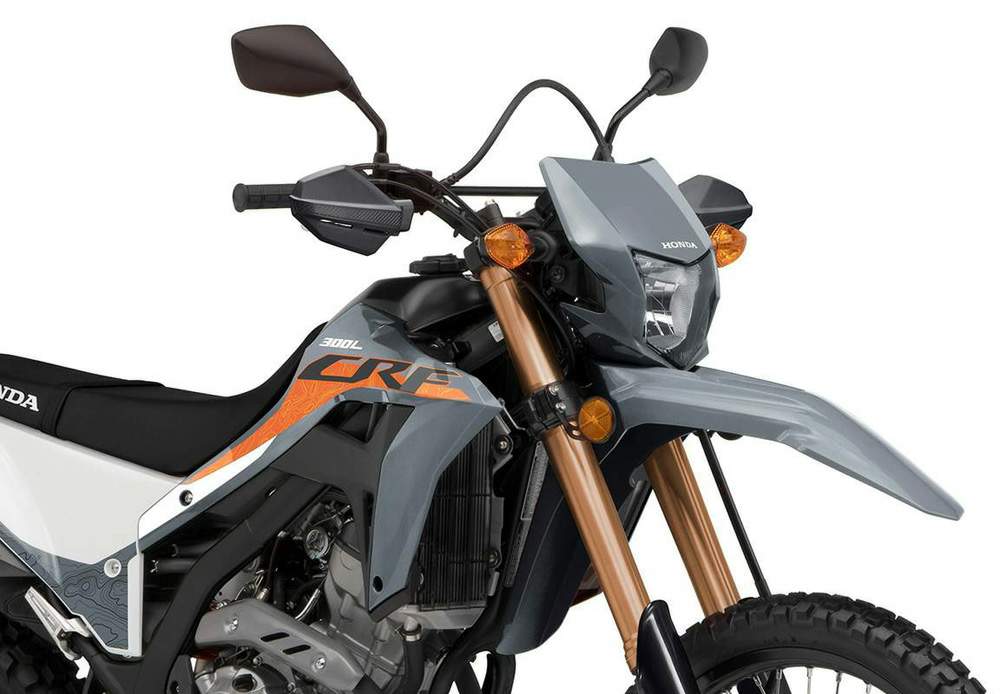

Honda CRF 300L (2023) technical specifications

Honda CRF 300L is produced in 2023. Engine is Four stroke single cylinder, DOHC, 4 valves, displacement 286 cc / 17.4 cu-in , produces power 27 hp / 20.1 kW @ 8500rpm and 26.6 Nm / 19.6 lb-ft @ 6500rpm. Honda CRF 300L wet weight is 142 kg / 313 lbs. Honda CRF 300L has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CRF 300L
Years:	2023
Engine:	Four stroke single cylinder, DOHC, 4 valves
Capacity:	286 cc / 17.4 cu-in
Bore x Stroke:	76 x 63 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.7:1
Lubrication:	Wet sump
Induction:	PGM-FI electronic fuel injection
Emission:	EURO5
Ignition:	Full transistor digital
Starting:	Electric
Max Power:	27 hp / 20.1 kW @ 8500rpm
Max Torque:	26.6 Nm / 19.6 lb-ft @ 6500rpm
Clutch:	Wet multiplate, assist/slipper clutch
Transmission:	6 Speed
Final Drive:	#520 chain
Frame:	Steel semi-double cradle
Front Suspension:	43mm Telescopic USD forks
Rear Suspension:	Pro-Link single shock with spring
Front Brakes:	Single 256mm disc 2 piston caliper
Rear Brakes:	Single 220mm disc 1 piston caliper
ABS:	2 channel ABS
Wheels:	Aluminium spoke
Front Tyre:	80/100-21M/C 51P
Rear Tyre:	120/80-18M/C 62P
Rake:	27.5°
Trail:	109 mm / 4.3 in
Dimensions:	Length: 2230 mm / 87.7 in Width: 820 mm / 32.2 in Height: 1200 mm / 47.2 in
Wheelbase:	1455 mm / 57.2 in
Seat Height:	880 mm / 34.6 in
Ground Clearance:	285 mm / 11.2 in
Wet Weight:	142 kg / 313 lbs
Fuel Capacity:	7.8 Litres / 2 US gal
