Technical specifications
|
| Model: |

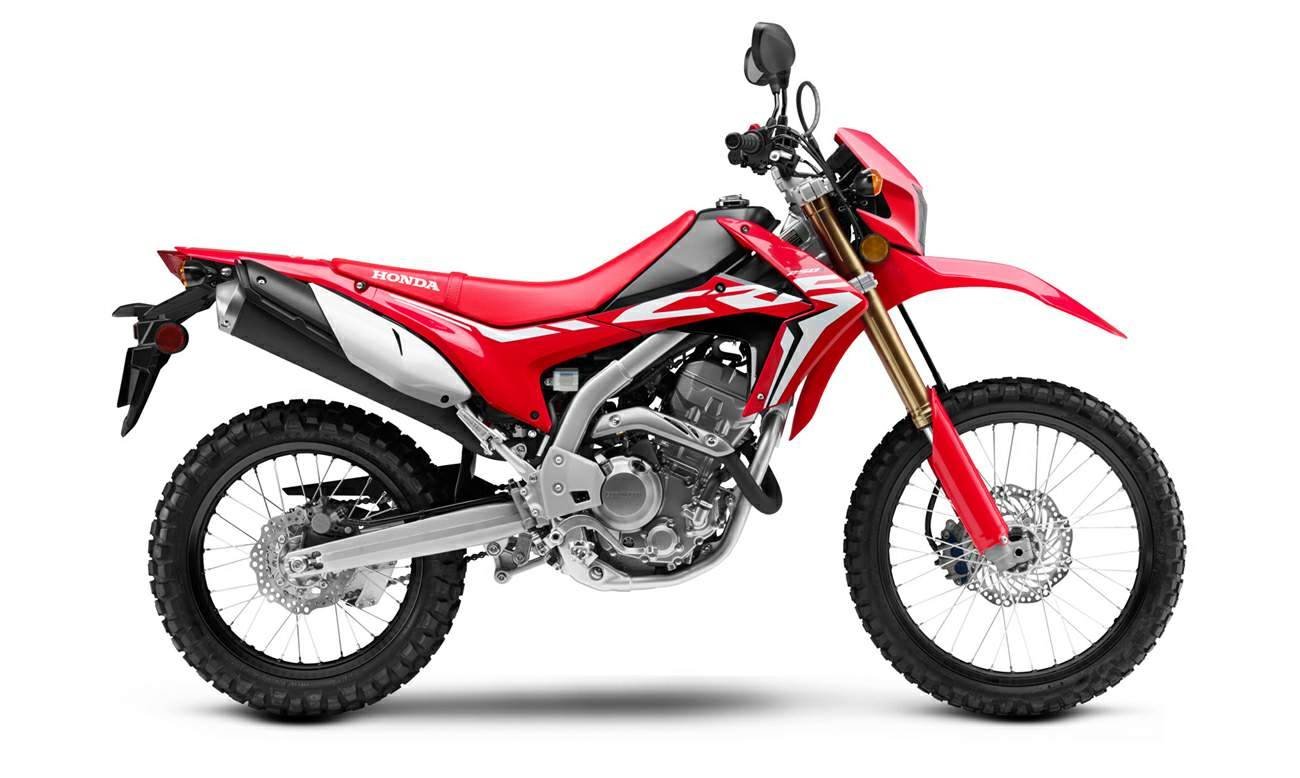

CRF 250L / ABS |
| Years: |
2020 |
|
Engine:
|
Four stroke single cylinder, DOHC, 4 valves
|
|
Capacity:
|
249 cc / 15.28 cu-in
|
|
Bore x Stroke:
|
76 ×55 mm
|
|
Cooling System:
|
Liquid cooled
|
|
Compression Ratio:
|
10.7:1
|
|
Lubrication:
|
Wet sump
|
|
Induction:
|
Keihin 37mm flat-slide with throttle position sensor (TPS)
|
|
Ignition:
|
Full-transistor battery ignition
|
|
Starting:
|
Electric
|
|
Max Power:
|
17 kW / 23 hp @ 8500 rpm
|
|
Max Torque:
|
22 Nm / 2.24 kg-m @ 7000 rpm
|
|
Clutch:
|
Wet multiplate with coil springs
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
#520 chain; 14T/40T
|
|
Gear Ratio:
|
1st 3.333 2nd 2.117 3rd 1.571 4th 1.304 5th 1.115 6th 0.962
|
|
Frame:
|
Semi-double cradle
|
|
Front Suspension:
|
43mm inverted fork;
|
|
Front Wheel Travel:
|
221 mm / 8.7 in
|
|
Rear Suspension:
|
Pro-Link® single shock with spring
|
|
Rear Wheel Travel:
|
239 mm / 9.4 in
|
|
Front Brakes:
|
Single 256mm disc 2 piston caliper, ABS
|
|
Rear Brakes:
|
Single 220mm disc 1 piston caliper, ABS
|
|
Front Tyre:
|
3.00-21
|
|
Rear Tyre:
|
120/80-18
|
|
Rake:
|
27°
|
|
Trail:
|
112 mm / 4.4 in
|
|
Dimensions:
|
Length 2195 mm / 86.4 in Width 815 mm / 32.0 in Height 1195 mm / 47.0 in
|
|
Wheelbase:
|
1445 mm / 56.9 in
|
|
Seat Height:
|
875 mm / 34.4 in
|
|
Wet Weight:
|
147 kg / 322 lbs
|
|
Fuel Capacity:
|
7.7 Litres / 2.0 US gal
|
