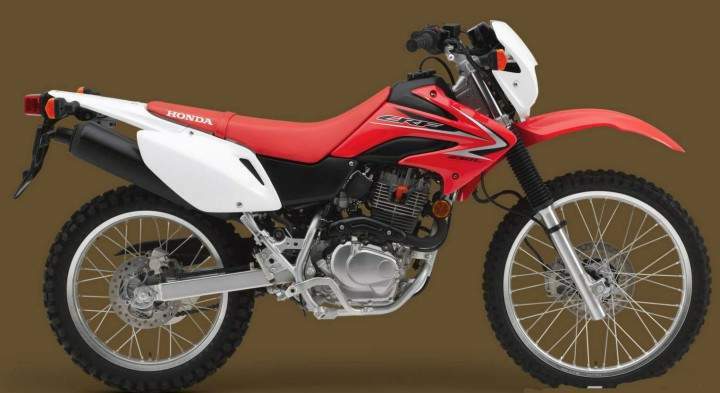

Honda CRF 230L (2008-09) technical specifications
Honda CRF 230L is produced in 2008-09. Engine is Four stroke single cylinder, SOHC, 4 valves, displacement 223 cc / 13.6 cu-in , produces power 18.6 hp / 13.7 kW @ 8000 rpm and 18.8 Nm / 1.92 kg-m @ 6000 rpm. Honda CRF 230L weighs 113 kg / 249 lbs. Honda CRF 230L has 2 photos.
Technical specifications
+ Add to 'Compare list'| Model: | CRF 230L |
| Years: | 2008-09 |
| Engine: | Four stroke single cylinder, SOHC, 4 valves |
| Capacity: | 223 cc / 13.6 cu-in |
| Bore x Stroke: | 65.5 x 66.2mm |
| Cooling System: | Liquid cooled |
| Compression Ratio: | 9.0:1 |
| Lubrication: | Wet sump |
| Induction: | Single 30 mm CV carb |
| Ignition: | CD with electronic advance and lighting coil |
| Spark Plug: | NGK, DPR8EA-9 |
| Starting: | Electric & Kick |
| Max Power: | 18.6 hp / 13.7 kW @ 8000 rpm |
| Max Torque: | 18.8 Nm / 1.92 kg-m @ 6000 rpm |
| Clutch: | Wet, multiple discs, cable operated |
| Transmission: | 6 Speed |
| Final Drive: | #520 O-ring-sealed chain |
| Frame: | Steel, Single cradle frame |
| Front Suspension: | 37mm leading-axle Showa fork |
| Front Wheel Travel: | 241.3 mm / 9.5 in |
| Rear Suspension: | Pro-Link Showa single-shock with spring-preload adjustability |
| Rear Wheel Travel: | 228.5 mm / 8.9 in |
| Front Brakes: | Single 240mm disc 2 piston caliper |
| Rear Brakes: | Single 220mm disc |
| Front Tyre: | 2.75-21 |
| Rear Tyre: | 120/80-18 |
| Wheelbase: | 1340 mm / 52.7 in |
| Seat Height: | 810 mm / 31.9 in |
| Ground Clearance: | 241 mm / 9.5 in |
| Dry Weight: | 113 kg / 249 lbs |
| Fuel Capacity: | 8.6 Litres / 2.27 gal |
