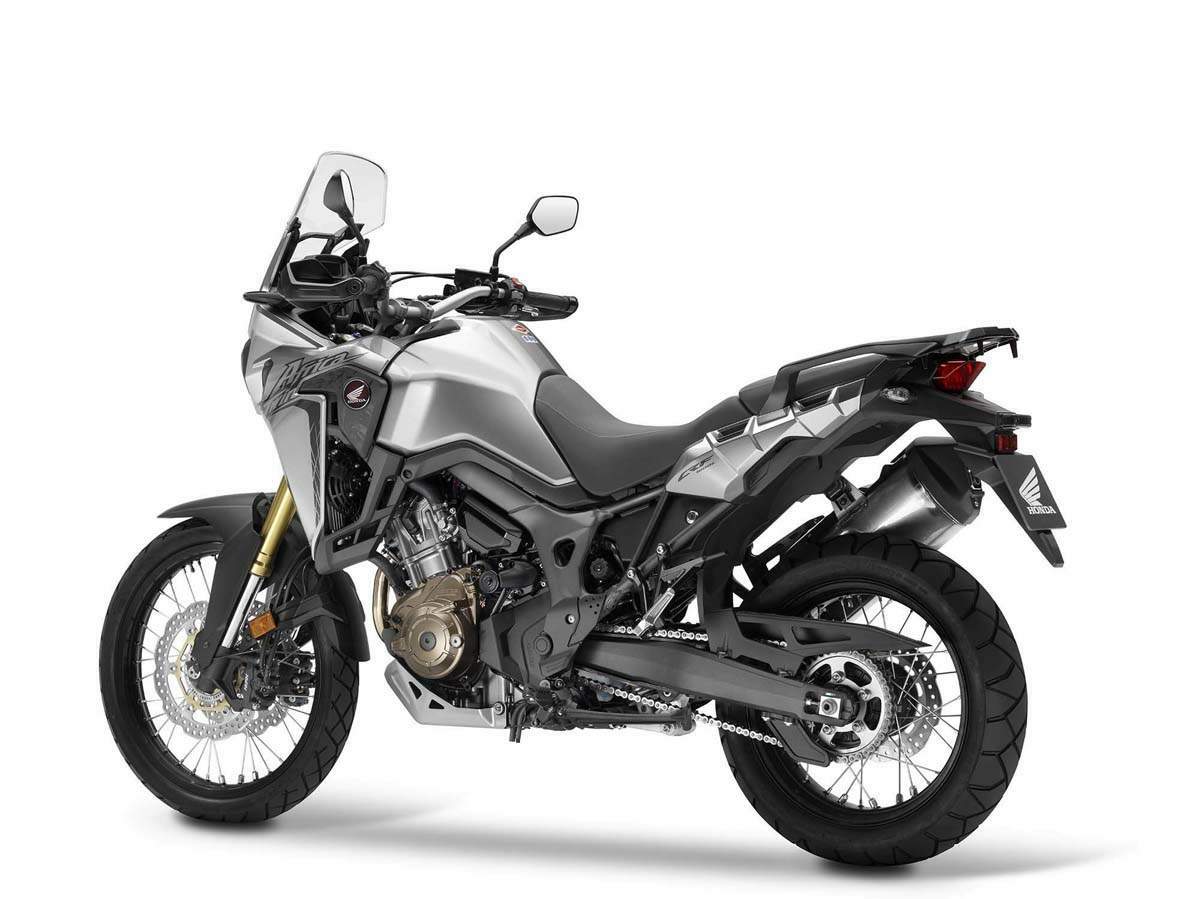

Honda CRF 1000L Africa Twin / DCT (2016) technical specifications

Honda CRF 1000L Africa Twin / DCT is produced in 2016. Engine is Four stroke, parallel Twin with 270° crank, SOHC, 4 valves per cylinder, displacement 998 cc / 60.9 cu-in , produces power 93.8 hp / 70 kW @ 7500 rpm and 98 Nm / 72.2 ft-lb @ 6000 rpm. Honda CRF 1000L Africa Twin / DCT wet weight is 232 kg / 511.5 lbs (MT) - 242kg / 533.5 lbs (DCT). Honda CRF 1000L Africa Twin / DCT has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CRF 1000L Africa Twin / DCT
Years:	2016
Engine:	Four stroke, parallel Twin with 270° crank, SOHC, 4 valves per cylinder
Capacity:	998 cc / 60.9 cu-in
Bore x Stroke:	92.0 x 75.1 mm
Compression Ratio:	10.0:1
Cooling System:	Liquid cooled
Emission:	Euro
Induction:	Fuel injection
Starting:	Electric
Max Power:	93.8 hp / 70 kW @ 7500 rpm
Max Torque:	98 Nm / 72.2 ft-lb @ 6000 rpm
Clutch:	MT: Wet, multiplate with coil springs, Aluminium Cam Assist and Slipper clutch DCT: 2 Wet multiple clutches
Transmission:	Constant mesh 6-speed manual / 6-speed automatic DCT with on- and off-road riding modes
Final Drive:	O-ring sealed chain
Honda Selectable Torque Control System (HSTC):	HSTC 3-levels + switch-off (DCT/ABS model only, not on STD model)
Frame:	Steel semi-double cradle type with high-tensile strength steel rear sub-frame
Front Suspension:	Showa 45mm cartridge-type inverted telescopic fork with hydraulic dial-style preload adjuster and DF adjustment, 204mm axle stroke
Front Wheel Travel:	230 mm / 9.1 in
Rear Suspension:	Monoblock cast aluminium swing arm with Pro-Link with gas-charged damper, hydraulic dial-style preload adjuster and rebound damping adjustment, 94 mm axle stroke
Rear Wheel Travel:	220 mm / 8.6 in
Front Brakes:	2x 310 mm floating hydraulic discs with aluminum hub and radial fit 4-piston calipers and sintered metal pads
Rear Brakes:	Single 256mm wave hydraulic disc with 2-piston caliper and sintered metal pads. Also Lever-Lock Type Parking Brake System on DCT/ABS model
ABS System:	ABS 2-channel with rear ABS off switch (DCT/ABS model only, not on STD model)
Wheels:	Wire spoke with aluminum rims
Front Wheel:	21M/C x MT2.15
Rear Wheel:	18M/C x MT4.00
Front Tyre:	90/90-R21 tube type
Rear Tyre:	150/70-R18 tube type
Turning Radius:	2 5 m / 8.2 ft
Rake:	27.5°
Trail:	114.3 mm / 4.5 in
Dimensions:	Length 2334.2 mm / 91.9 in Width 929.6 mm / 36.6 in Height 1475.7 mm / 58.1 in
Wheelbase:	1574.8 mm / 62.0 in
Seat Height:	871.2 mm / 34.3 in - 850.9 mm / 33.5 in
Ground Clearance:	250 mm / 9.8 in
Wet Weight:	232 kg / 511.5 lbs (MT) - 242kg / 533.5 lbs (DCT)
Fuel Capacity:	18.7 Litres / 4.96 US gal
