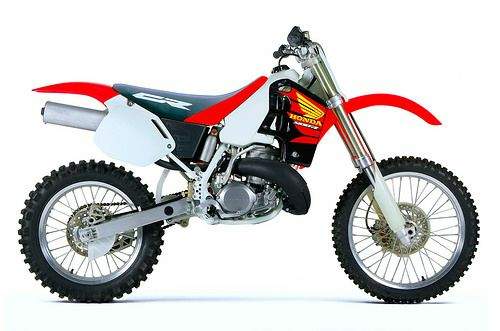

Honda CR 500R (1996-98) technical specifications

Honda CR 500R is produced in 1996-98. Engine is Two stroke, single cylinder, membrane & power valve, displacement 491.4 cc / 29.9 cu-in , produces power 56 hp / 41.7 kW @ 6000 rpm and 72.2 Nm / 53.3 lb-ft @ 6000 rpm. Honda CR 500R weighs 105.6 kg / 233.0 lbs. Honda CR 500R has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CR 500R
Years:	1996-98
Engine:	Two stroke, single cylinder, membrane & power valve
Capacity:	491.4 cc / 29.9 cu-in
Bore x Stroke:	89.0 x 79.0 mm
Compression Ratio:	6.8:1
Cooling System:	Liquid cooled
Exhaust:	Expansion chamber
Lubrication:	Pre-mix
Induction:	Single 38mm Keihin flat-slide carburettor
Ignition:	CDI
Starting:	Kick
Max Power:	56 hp / 41.7 kW @ 6000 rpm
Max Torque:	72.2 Nm / 53.3 lb-ft @ 6000 rpm
Clutch:	Wet plate
Transmission:	5 Speed
Final Drive:	Chain
Primary Reduction:	2.520
Final Reduction:	3.500
Gear Ratio:	1st 1.750 / 2nd 1.388 / 3rd 1.150 / 4th 1.000 / 5th 0.870
Frame:	Welded steel tubing
Front Suspension:	43mm Showa leading axle USD fork with adjustable compression rebound damping
Front Wheel Travel:	310 mm / 12.2 in
Rear Suspension:	Showa Prolink with adjustable compression rebound damping
Rear Wheel Travel:	320 mm / 12.6 in
Front Brakes:	240mm Single disc hydraulic 2 piston caliper
Rear Brakes:	220mm Single disc hydraulic 1 piston caliper
Front Tyre:	80/100 - 21
Rear Tyre:	110/100 - 18
Rake:	28°
Trail:	122 mm / 4.8 in
Wheelbase:	1489 mm / 58.6 in
Seat Height:	964 mm / 38.0 in
Ground Clearance:	343 mm / 13.5 in
Dry Weight:	105.6 kg / 233.0 lbs
Wet Weight:	112 kg / 247 lbs
Fuel Capacity:	9 Litres / 2.4 US gal
