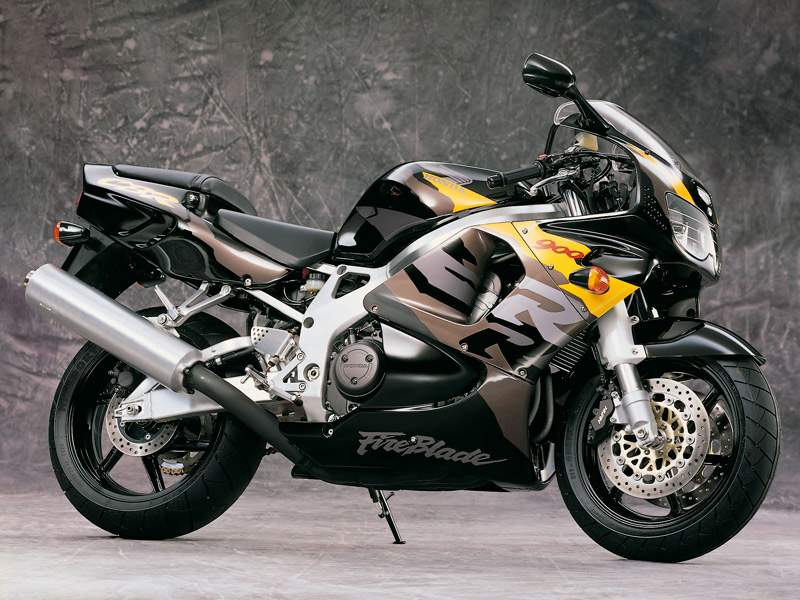

Honda CBR 900RR Fireblade (1996) technical specifications

Honda CBR 900RR Fireblade is produced in 1996. Engine is Four stroke,transverse four cylinder, DOHC, 4 valves per cylinder, displacement 919 cc / 56.1 cub.in Honda CBR 900RR Fireblade top speed is 259 km/h / 161mph. Honda CBR 900RR Fireblade has 7 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CBR 900RR Fireblade
Years:	1996
Engine:	Four stroke,transverse four cylinder, DOHC, 4 valves per cylinder
Capacity:	919 cc / 56.1 cub.in
Bore x Stroke:	71 x 58mm
Compression Ratio:	11.1:1
Cooling System:	Liquidcooling
Lubrication:	Wetsump
Exhaust:	4 into 2 into1
Induction:	4 x 38 mm Keihin CV carburetors
Ignition:	Electronicallytriggered
Starting:	Electric
Max Power :	96.9 kW / 130 hp @10500rpm
Max Power Rear Wheel:	86.9 kW / 118.1 hp @103500rpm
Max Torque:	92 Nm / 9.4 kgfm / 67.9 lb.ft @ 10000rpm
Clutch:	Wet, multiple discs, cableoperated
Transmission:	6Speed
Final Drive:	# 525 chain,108 links
Gear Ratio:	1st 2.73 /2nd 1.93 / 3rd 1.67 / 4th 1.90 / 5th 1.26 /6th 1.17:1
Frame:	Extruded aluminum main spars havetriple-box cross section
Front Suspension:	45mm Showacartridge, adjustments for spring preload, rebound dampingadjustable
Front Wheel Travel:	120 mm / 4.7in.
Rear Suspension:	Pro-Link, one Showa damper, wheeltravel, adjustments for spring, preload, rebound damping,compression damping
Rear Wheel Travel:	125 mm / 4.9in.
Front Brakes:	2x 296 mm discs 4 pistoncalipers
Rear Brakes:	Single 240mm disc 1 pistoncaliper
Front Tyre:	130/70ZR16
Rear Tyre:	180/55ZR17
Rake:	24°
Trail:	89 mm / 3.5 in.
Dimensions:	Length 2055 mm / 80.9 inWidth 685 mm / 27.0 inHeight 1110 mm / 43.7 in
Wheelbase:	1400 mm / 55.2 in.
Seat Height:	810 mm / 31.9in.
Dry Weight :	182 kg / 401 lbs
Wet Weight :	204 kg / 450lb
Fuel Capacity :	18 Litres / 4.8 USgal
Braking 60 km/h / 37 mph - 0:	13.2 m / 43.3 ft.
Braking 100 km/h / 62 mph - 0:	37 m / 121 ft.
Average Consumption :	5.8 l/100 km / 17.2 km/l / 40.5mpg
Standing ¼ mile:	10.5 sec / 211.5 km/h / 131.4mph
Top Speed:	259 km/h / 161mph
Colours:	Red/White/Yellow,Black/Yellow/Bronze, Blue/Orange
Road Test:	Motoplus 1996Motosprint 1996Motosprint 1996 Superbike Group Test
