Honda CBR 600RR (2017) technical specifications

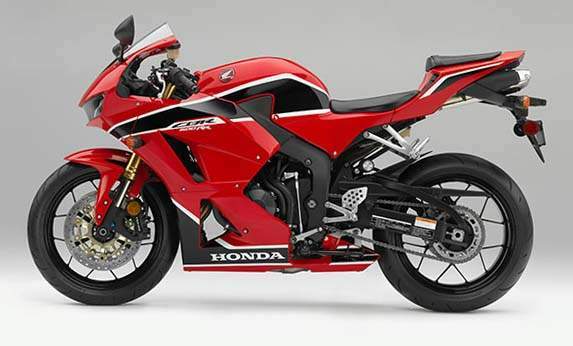

![Honda CBR 600RR technical specifications Honda CBR 600RR technical specifications](https://www.moto-data.net/media/honda/pics/honda-cbr-600rr-2017[1].jpg)

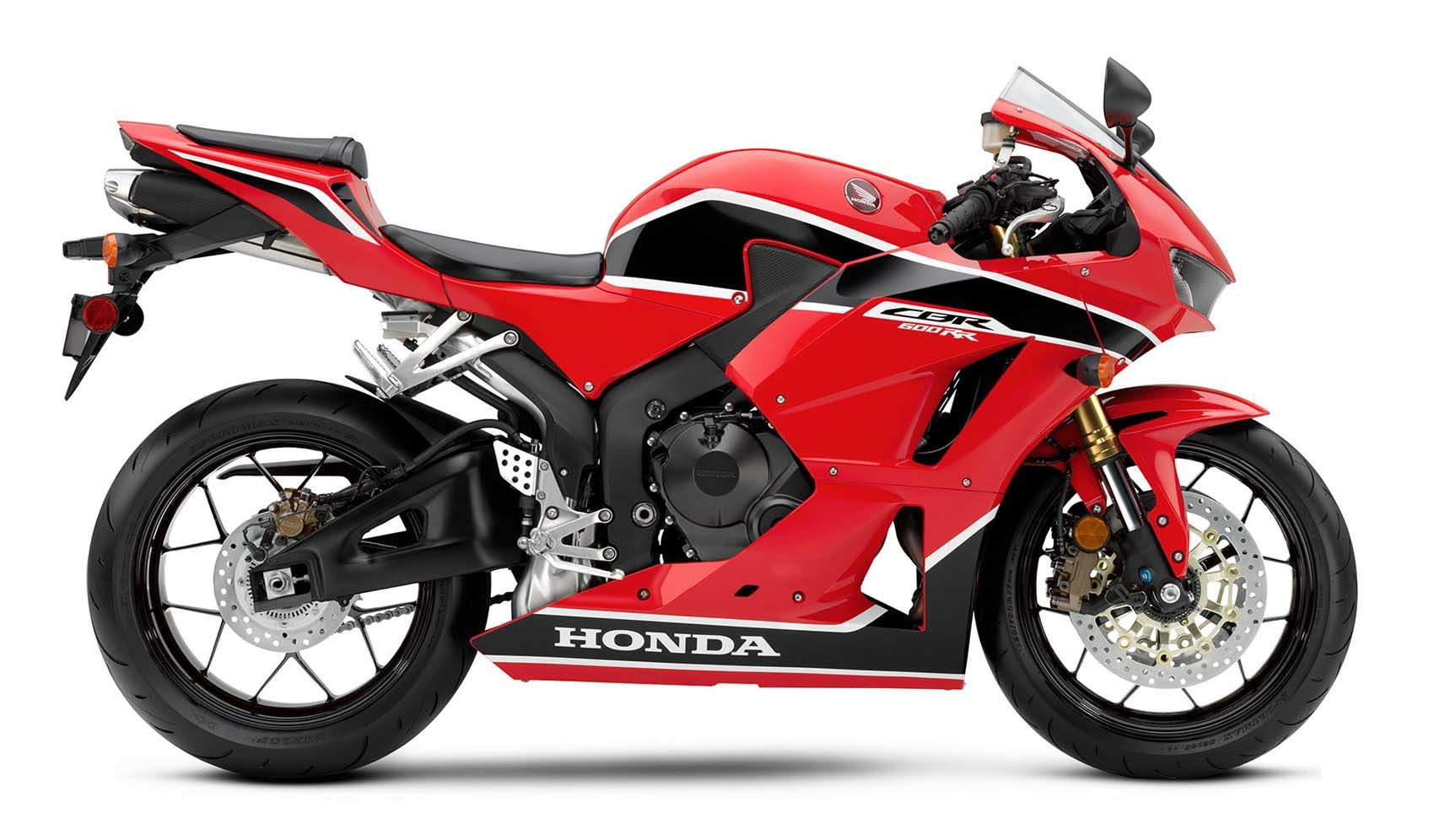

Honda CBR 600RR is produced in 2017. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder, displacement 599 cc / 36.5 cu-in , produces power 118 hp / 88.1 kW @ 13500 rpm and 66 Nm / 48.6 lb-ft @ 11250 rpm. Honda CBR 600RR weighs 156.5 kg / 345 lbs. Honda CBR 600RR has 2 photos.
Technical specifications
+ Add to 'Compare list'Model: | CBR 600RR |
Years: | 2017 |
Engine: | Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder |
Capacity: | 599 cc / 36.5 cu-in |
Bore x Stroke: | 67 x 42.5 mm |
Compression Ratio: | 12.2:1 |
Cooling System: | Liquid cooled |
Lubrication: | Wet sump |
Engine Oil: | Synthetic, 10W/40 |
Induction: | Dual Stage Fuel Injection (DSFI) with 40mm throttle bodies, Denso 12-hole injectors |
Ignition: | Computer-controlled digital transistorized with electronic advance and independent four-cylinder 3D-mapped computer control. |
Spark Plug: | NGK, IMR9C-9H |
Starting: | Electric |
Max Power: | 118 hp / 88.1 kW @ 13500 rpm |
Max Torque: | 66 Nm / 48.6 lb-ft @ 11250 rpm |
Clutch: | Cable-operated multiplate wet clutch |
Transmission: | Close-ratio 6 Speed |
Final Drive: | #525 O-ring chain |
Frame: | Aluminium, twin spar |
Front Suspension: | 41mm inverted Big Piston Fork with spring preload, rebound and compression damping adjustability |
Front Wheel Travel: | 120 mm / 4.3 in |
Rear Suspension: | Unit Pro-Link HMAS single shock with spring preload, rebound and compression damping adjustability |
Rear Wheel Travel: | 129.5 mm / 5.1 in |
Front Brakes: | 2x 310mm discs 4 piston calipers |
Rear Brakes: | Single 220mm disc 1 piston caliper |
Front Tyre: | 120/70 ZR17 |
Rear Tyre: | 180/55 ZR17 |
Rake: | 23.5° |
Trail: | 97.7mm / 3.9 in |
Seat Height: | 820 mm / 32.3 in |
Wheelbase: | 1369 mm / 53.9 in |
Ground clearance:: | 135 mm / 5.3 in |
Dry Weight: | 156.5 kg / 345 lbs |
Wet Weight: | 186 kg / 410 lbs |
Fuel Capacity: | 18.2 liters / 4.8 gal |
