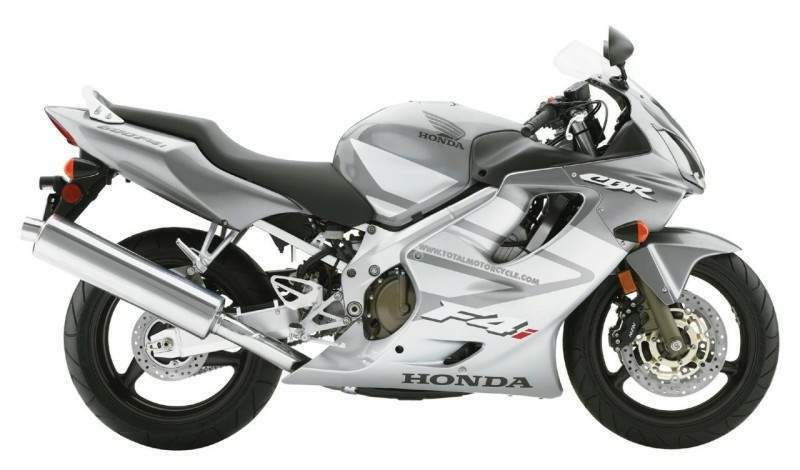

Honda CBR 600F4i (2005) technical specifications

Honda CBR 600F4i is produced in 2005. Engine is Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder., displacement 599 cc / 36.5 cu-in , produces power 110.2 hp / 81 kW @ 12500 rpm and 6.6 kgf-m / 65 Nm @ 10500 rpm. Honda CBR 600F4i top speed is 256.3 km/h. Honda CBR 600F4i weighs 170 kg / 370 lbs. Honda CBR 600F4i has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CBR 600F4i
Years:	2005
Engine:	Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity:	599 cc / 36.5 cu-in
Bore x Stroke:	67 x 42.5 mm
Coolling System:	Liquid cooled
Compression Ratio:	12.0:1
Lubrication system:	Wet sump
Motor Oil:	Semi-Synthetic, 10W/40
Induction:	Electronic fuel injection
Ignition:	Digital transistorized 3 dimensional mapping computer-controlled.
Spark Plug:	NGK, IMR9A-9H
Battery:	YTX9-BS
Starting:	Electric
Max Power:	110.2 hp / 81 kW @ 12500 rpm
Max Torque:	6.6 kgf-m / 65 Nm @ 10500 rpm
Clutch:	Wet, multiple discs, cable operated
Transmission:	6 Speed
Final Drive:	#525 O-ring-sealed chain
Gear Ratio:	6th 26/ 23 (1.130:1) 5th 25/ 20 (1.250:1) 4th 27/ 19 (1.421:1) 3rd 28/ 17 (1.647:1) 2nd 33/ 16 (2.062:1) 1st 34/ 12 (2.833:1)
Frame:	Aluminium, twin spar
Front Suspension:	43mm fully adjustable cartridge-type fork
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Pro-Link featuring fully adjustable gas-charged remote reservoir damper
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	2x 296mm discs 4 piston calipers
Rear Brakes:	Single 220mm disc 1 piston caliper
Front Tyre:	120/70 ZR17
Rear Tyre:	180/55 ZR17
Rake:	24°
Trail:	96.5 mm / 3.8 in
Dimensions:	Length 2060 mm / 81.1 in Width 685 mm / 26.9 in Height 1135 mm / 44.6 in
Wheelbase:	1386 mm / 54.9 in
Ground Clearance:	135 mm / 5.3 in
Seat Height:	805 mm / 31.9 in
Dry Weight:	170 kg / 370 lbs
Wet Weight:	193 kg / 425.5 lbs
Fuel Capacity:	18 Liters / 4.2 gal
Consumption Average:	19 km/lit
Braking 60 - 0 / 100 - 0:	13.6 m / 39 m
Standing ¼ Mile:	11.7 sec / 199 km/h
Top Speed:	256.3 km/h
