Honda CBR 500R (2016) technical specifications

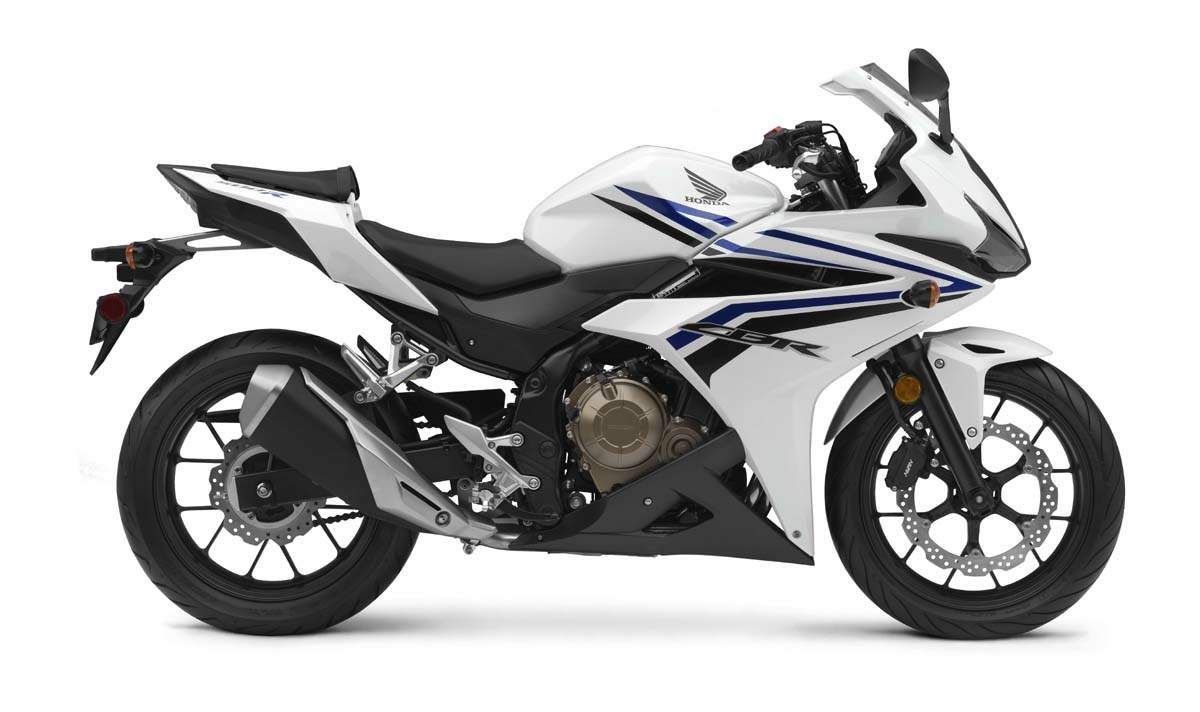

Honda CBR 500R is produced in 2016. Engine is Four stroke, parallel-twin, DOHC; 4 valves per cylinder, displacement 471 cc / 28.7 cu-in , produces power 46.9 hp / 35 kW @ 8500 rpm and 43 Nm / 31.7 lb-ft @ 7000 rpm. Honda CBR 500R wet weight is 191 kg / 423 lbs. Honda CBR 500R has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CBR 500R
Years:	2016
Engine:	Four stroke, parallel-twin, DOHC; 4 valves per cylinder
Capacity:	471 cc / 28.7 cu-in
Bore x Stroke:	67.0 x 66.8 mm
Compression Ratio:	10.7:1
Cooling System:	Liquid cooled
Induction:	PGM-FI with 34mm throttle bodies
Ignition:	Computer-controlled digital transistorized with electronic advance
Starting:	Electric
Max Power:	46.9 hp / 35 kW @ 8500 rpm
Max Power Rear Wheel:	42.9 hp / 31.9 kW @ 8500 rpm
Max Torque:	43 Nm / 31.7 lb-ft @ 7000 rpm
Transmission:	6 Speed
Final Drive:	O-ring-sealed chain
Frame:	Back Bone
Front Suspension:	41mm Telescopic fork
Front Wheel Travel:	109 mm / 4.3 in
Rear Suspension:	Pro-Link® single shock with nine-position spring preload adjustability
Rear Wheel Travel:	120 mm / 4.7 in
Front Brakes:	Single 320mm wave disc 2 piston calipers
Rear Brakes:	Single 240mm wave disc 1 piston calipers
Front Tyre:	120/70-17
Rear Tyre:	160/60-17
Rake (Caster Angle):	25.5°
Trail:	103mm / 4.05 in
Wheelbase:	1400 mm / 55.5 in
Seat Height:	780 mm / 30.7 in
Wet Weight:	191 kg / 423 lbs
Fuel Capacity:	16.6 Liters / 4.4 US gal
