Honda CBR 300R (2016-17) technical specifications

Honda CBR 300R is produced in 2016-17. Engine is Four stroke, single cylinder, DOHC, 4 valve, displacement 286 cc / 17.45 cub in. , produces power 22.7 kW / 30.4 hp @ 8 500 rpm and 27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm. Honda CBR 300R wet weight is 162 kg / 357 lbs (165 kg / 362 lbs ABS). Honda CBR 300R has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CBR 300R
Years:	2016-17
Engine:	Four stroke, single cylinder, DOHC, 4 valve
Capacity:	286 cc / 17.45 cub in.
Bore x Stroke:	76 x 63 mm
Cooling System:	Liquid cooled
Compression Ratio:	10.7: 1
Induction:	PGM-FI electronic fuel injection
Ignition:	Computer-controlled digital transistor with electronic advance
Starting:	Electric
Max Power:	22.7 kW / 30.4 hp @ 8 500 rpm
Max Torque:	27 Nm / 2.75 kgf-m / 19.9 bl/ft @ 7 250 rpm
Clutch:	Wet multiplate hydraulic clutch
Transmission:	6 Speed
Final Drive:	#520 O-ring-sealed chain
Frame:	Diamond; steel twin-spar
Front Suspension:	37 mm telescopic fork
Front Wheel Travel:	120 mm / 4.7 in
Rear Suspension:	Monoshock damper, Pro-Link swingarm, 5 position preload adjustability
Rear Wheel Travel:	103 mm / 4.07 in
Front Brakes:	Single 296 mm disc 2 piston caliper, ABS
Rear Brakes:	Single 220 mm disc 1 piston caliper
Rims:	Multi-spoke cast aluminium;
Front Wheel:	MT2.75 x 17M/C
Rear Wheel:	MT4.00 x 17M/C
Front Tyre:	110/70-17 radial
Rear Tyre:	140/70-17 radial
Rake:	25.3°
Trail:	98 mm / 3.9 in
Dimensions:	Length 2035 mm / 82.0 in Width 720 mm / 28.3 in Height 1120 mm / 44.0 in
Wheelbase:	1380 mm / 54.3
Seat Height:	780 mm / 30.7 in
Ground Clearance:	145 mm / 5.7 in
Wet Weight:	162 kg / 357 lbs (165 kg / 362 lbs ABS)
Oil Capacity:	1.9 Litres
Fuel Capacity:	13 Litres / 3.4 gal

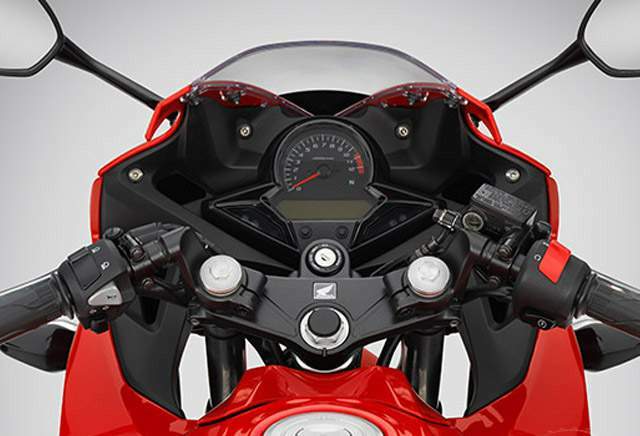

Instruments:	Analogue tachometer, digital odometer, speedometer, fuel gauge, temperature gauge and clock.
