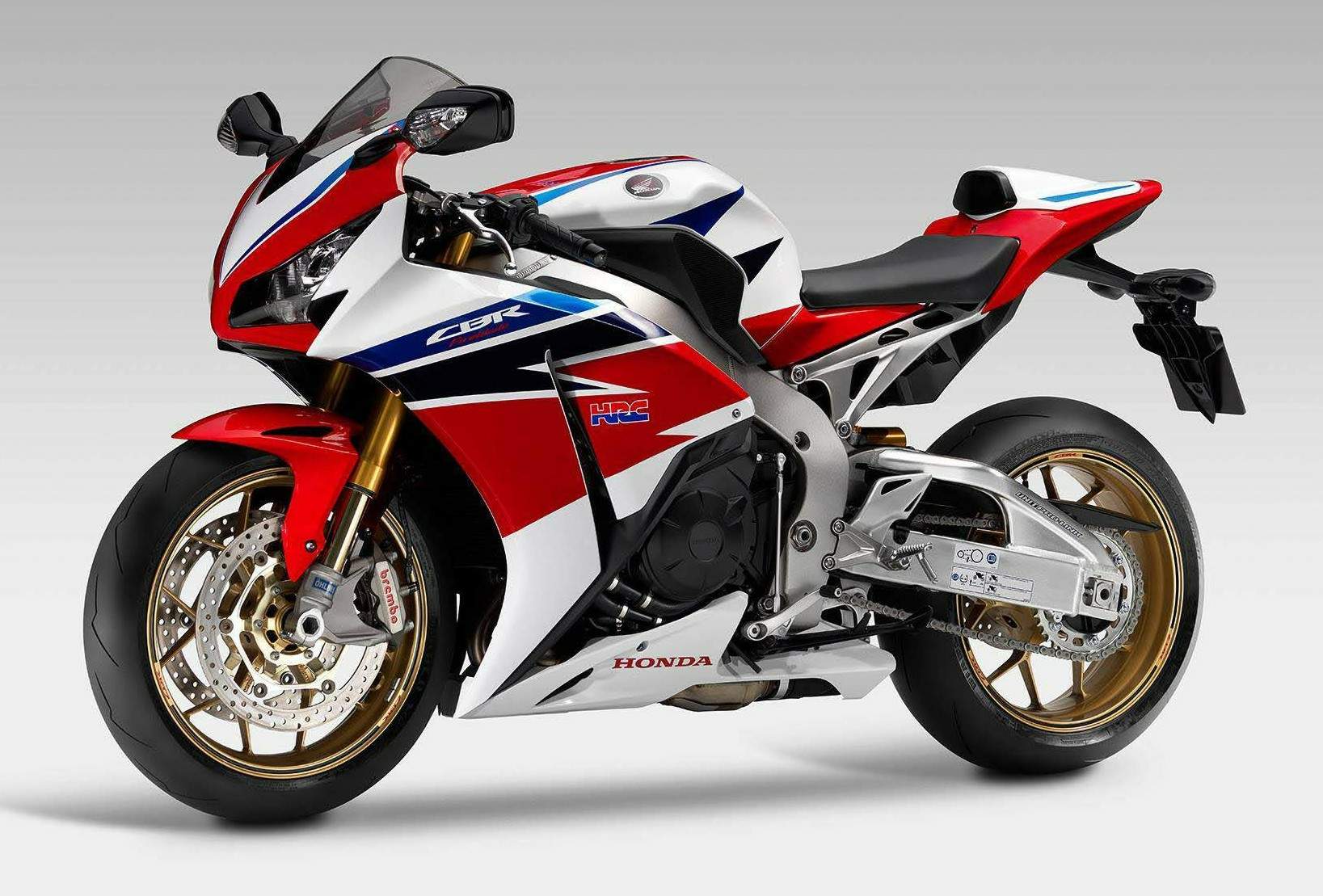

Honda CBR 1000RR-SP (2014) technical specifications

Honda CBR 1000RR-SP is produced in 2014. Engine is Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder., displacement 999.8 cc / 61 cu-cu-in , produces power 133 kW / 178 hp @ 12250rpm and 114 Nm / 84.07 ft.lb @ 10500rpm. Honda CBR 1000RR-SP wet weight is 201 kg / 444 lbs. Honda CBR 1000RR-SP has 9 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CBR 1000RR-SP
Years:	2014
Engine:	Four stroke, transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity:	999.8 cc / 61 cu-cu-in
Bore x Stroke:	76 x 55.1 mm
Cooling System:	Liquid cooled,
Compression Ratio:	12.3:1
Induction:	Programmed Dual Stage Fuel Injection (PGM-DSFI) with 46mm throttle bodies, Denso 12-hole injectors
Oil Capacity:	3.7 Litres
Ignition:	Computer-controlled digital transistorized with 3-D mapping
Starting:	Electric
Max Power:	133 kW / 178 hp @ 12250rpm
Max Torque:	114 Nm / 84.07 ft.lb @ 10500rpm
Clutch:	Wet, multiplate with diaphragm spring
Transmission:	Close-ratio 6 Speed
Final Drive:	#530 O-ring-sealed chain
Frame:	Diamond; aluminium composite twin-spar
Front Suspension:	43mm Öhlins inverted fork with spring preload, rebound and compression damping adjustability;
Rear Suspension:	Pro-Link Öhlins shock with spring preload, rebound and compression damping adjustability;
Front Brakes:	2x Floating 320mm discs Brembo four-piston calipers
Rear Brakes:	Single 220mm disc, 1 piston caliper
ABS System:	Electronic Combined ABS
Rims:	12-spoke cast aluminium -
Rim Front:	17M/C x MT3.5
Rim Rear:	17M/C x MT6
Front Tyre:	120/70-17 Pirelli Diablo Supercorsa SC
Rear Tyre:	190/50-17 Pirelli Diablo Supercorsa SC
Rake (Caster Angle):	23.3°
Trail:	96.2mm / 3.8 in
Dimensions:	Length 2080 / 81.8 in Width 720 mm / 28.3 in Height 1,141mm / 44.9 in
Wheelbase:	1409.7 mm / 55.5 in
Seat Height:	817.8 mm / 32.2 in
Wet Weight:	201 kg / 444 lbs
Fuel Capacity:	19.3 Liters / 4.4 gal
Instruments:	Gear position, coolant temperature, speedometer, clock/lap time, trip/fuel efficiency/fuel consumption and odometer/numerical tachometer
