Honda CBR 1000RR Fireblade (2017) technical specifications

Honda CBR 1000RR Fireblade technical specifications

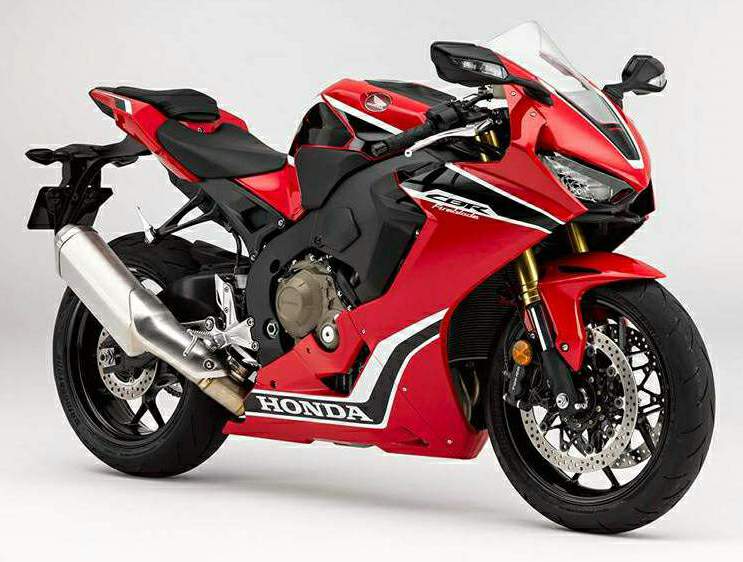

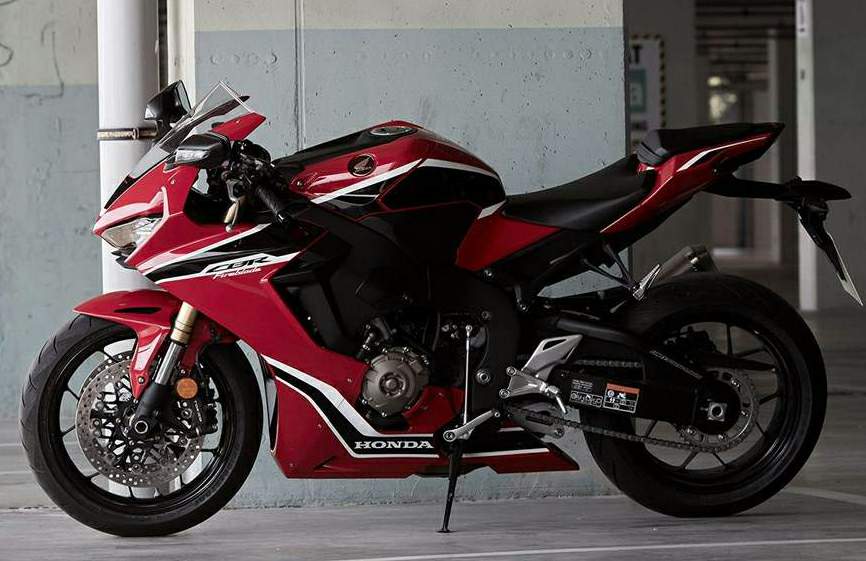

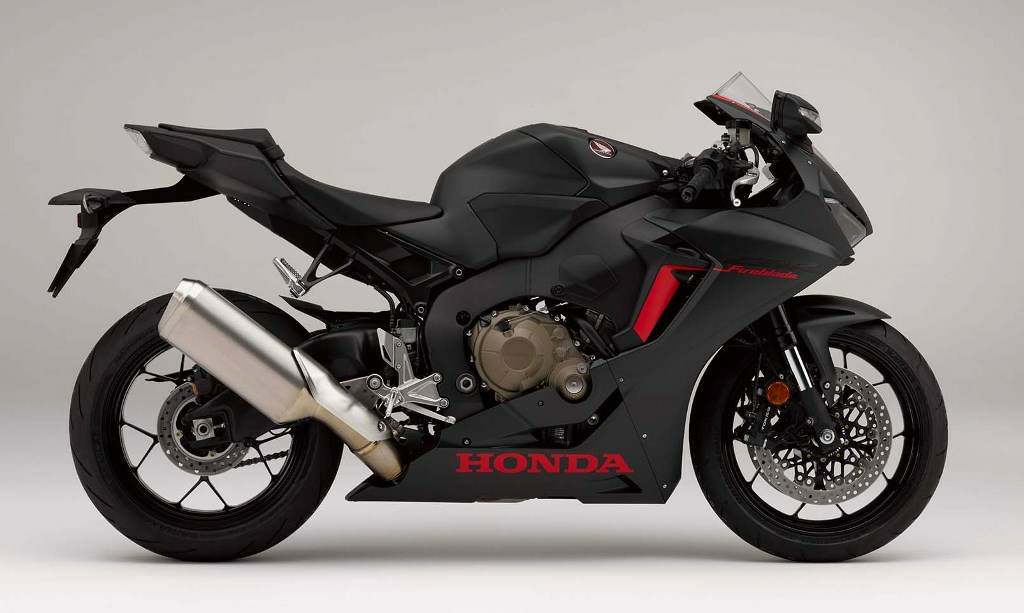

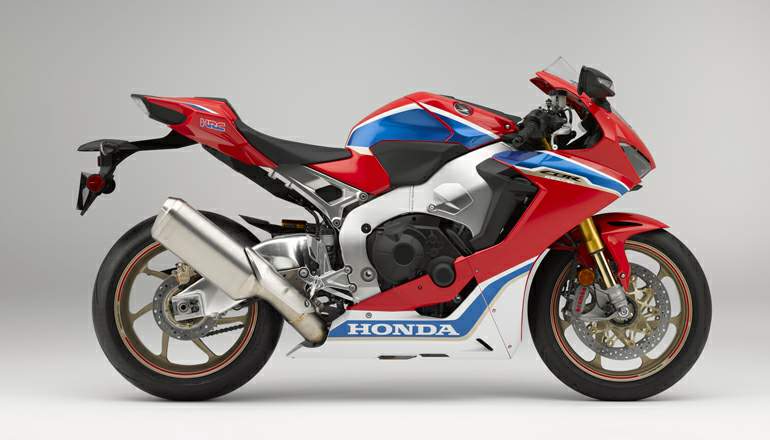

Honda CBR 1000RR Fireblade is produced in 2017. Engine is Four stroke, transverse four cylinder, Chain-driven DOHC, 4 valve per cylinder., displacement 999 cc / 60.9 in cc / 60.9 cu-in , produces power 141 kW / 189 hp @ 13000rpm and 114 Nm / 84.1 lb-ft @ 11000 rpm. Honda CBR 1000RR Fireblade wet weight is 196 kg / 432 lbs. Honda CBR 1000RR Fireblade has 4 photos.

Technical specifications

+ Add to 'Compare list'
Model: CBR 1000RR Fireblade
Years: 2017
Engine: Four stroke, transverse four cylinder, Chain-driven DOHC, 4 valve per cylinder.
Capacity: 999 cc / 60.9 in cc / 60.9 cu-in
Bore x Stroke: 76 x 55.1 mm
Compression Ratio: 13.0:1
Cooling System: Liquid cooling
Lubrication: Wet sump
Induction: PGM – Dual Stage Fuel Injection
Ignition: Computer-controlled digital transistorized with 3-D mapping
Starting: Electric
Max Power: 141 kW / 189 hp @ 13000rpm
Max Torque: 114 Nm / 84.1 lb-ft @ 11000 rpm
Clutch: Wet, multiplate with diaphragm spring
Transmission: Close-ratio six-speed (Quickshifter – optional accessory)
Final Drive: #530 O-ring-sealed chain
Frame: Diamond; aluminium composite twin spar
Front Suspension: Telescopic inverted fork with an inner tube diameter of 43 mm, and a Big Piston Front Fork with preload, compression and rebound adjustment
Front Wheel Travel: 125 mm / 4.9 in
Rear Suspension: Unit Pro-Link with gas-charged HMAS damper featuring 10-step preload and stepless compression and rebound damping adjustment
Rear Wheel Travel: 138 mm / 5.4 in
Front Brakes: 2x 320 mm hydraulic disc with Tokico radial mounted calipers and high performance track ready pads Rear.
Rear Brakes: Single 220mm disc, Combined ABS and sintered metal pads
ABS: Electronically controlled ABS
Front Tyre: 120/70ZR17 58W
Rear Tyre: 190/50ZR17 73W
Rim Size Front: 17 x MT3.50
Rim Size Rear: 17 x MT6.00
Rake (Caster Angle): 23°2
Trail: 96.2 mm / 3.8 in
Dimensions: Length 205 mm / 81.7 in Width 720 mm / 32.3 in Height 1125 mm / 44.7 in
Wheelbase: 1405 mm / 55.3 in
Seat Height: 8352 mm / 32.7 in
Wet Weight: 196 kg / 432 lbs
Fuel Capacity: 16 Litres / 4.2 US gal
