Honda CB1300S Super Bol D'or 30th Anniversary Edition (2023) technical specifications

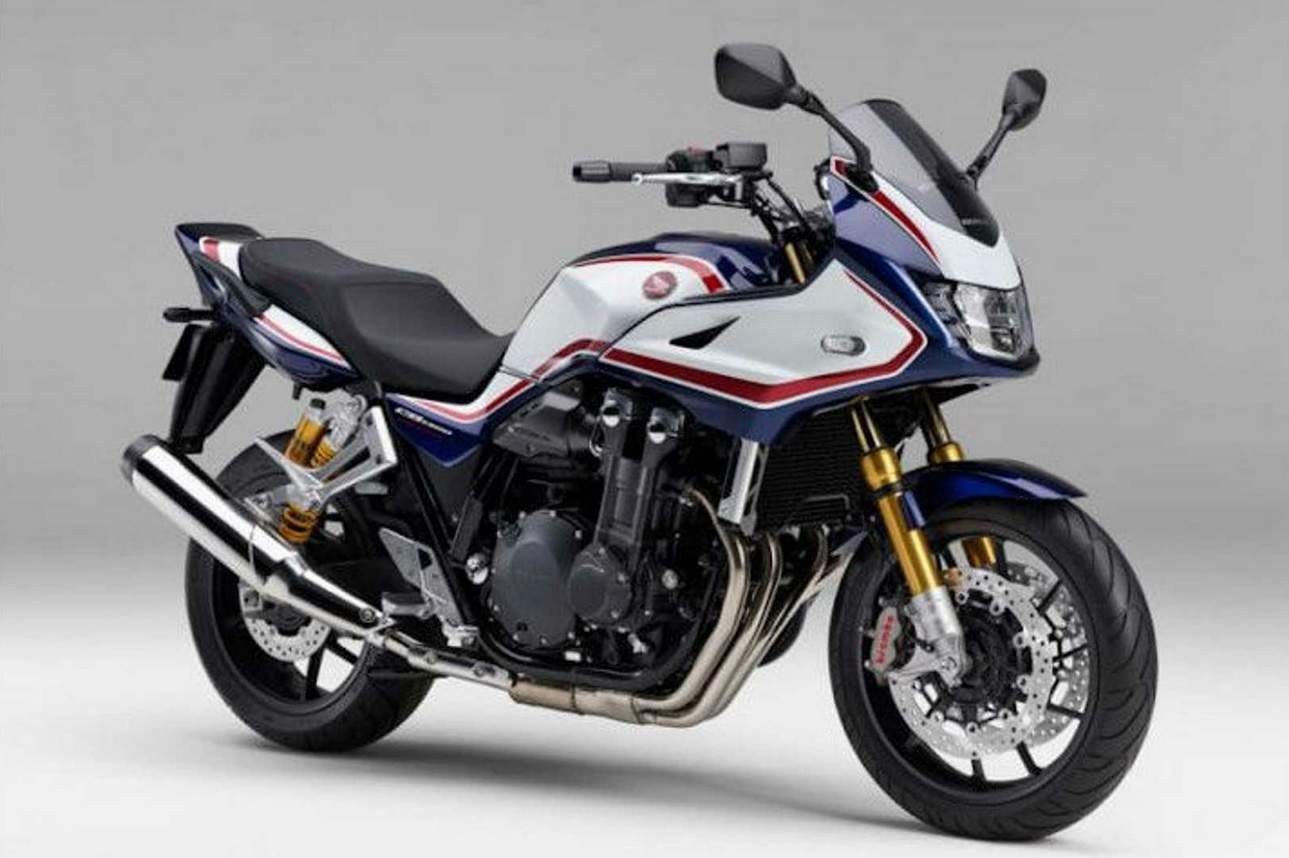

Honda CB1300S Super Bol D'or 30th Anniversary Edition is produced in 2023. Engine is Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder., displacement 1284 cc / 78.3 cu-in , produces power 114 hp / 83.2 kW @ 7500 rpm and 117 Nm / 11.9 kg-fm / 86.3 ft-lb @ 6000 rpm. Honda CB1300S Super Bol D'or 30th Anniversary Edition wet weight is 261.0 kg / 575.4 lbs. Honda CB1300S Super Bol D'or 30th Anniversary Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CB1300S Super Bol D'or 30th Anniversary Edition
Years:	2023
Engine:	Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity:	1284 cc / 78.3 cu-in
Bore x Stroke:	78 x 67.2 mm
Cooling Sysstem:	Liquid cooled
Compression Ratio:	9.6:1
Induction:	PGM-FI fuel injection with 4 x 36mm throttle bodies
Ignition:	Analogue CDI (Capacitive Discharge Ign.)
Starting:	Electric
Max Power:	114 hp / 83.2 kW @ 7500 rpm
Max Torque:	117 Nm / 11.9 kg-fm / 86.3 ft-lb @ 6000 rpm
Clutch:	Wet multi-plate coil spring
Transmission:	6 Speed
Final Drive:	Chain
Front Suspension:	43mm cartridge style forks
Rear Suspension:	Twin shocks with adjustable spring preload
Front Brakes:	2x 310mm discs 4 piston calipers, ABS
Rear Brakes:	Single 256mm disc 1 piston caliper, ABS
Front Tyre:	130/70 ZR17
Rear Tyre:	190/60 ZR17
Rake:	25.0°
Trail:	99 mm / 3.9 in
Dimensions:	Length 2220 mm / 87 in Width 790 mm / 31 in Height 1120 mm / 44 in
Wheelbase:	1510 mm / 59.4 in
Seat Height:	790 mm / 31.1 in adjustable, lowest setting.
Ground Clearance:	125 mm / 4.9 in
Wet Weight:	261.0 kg / 575.4 lbs
Fuel Capacity:	21 Litres / 5.5 US gal
