Technical specifications
|
| Model: |

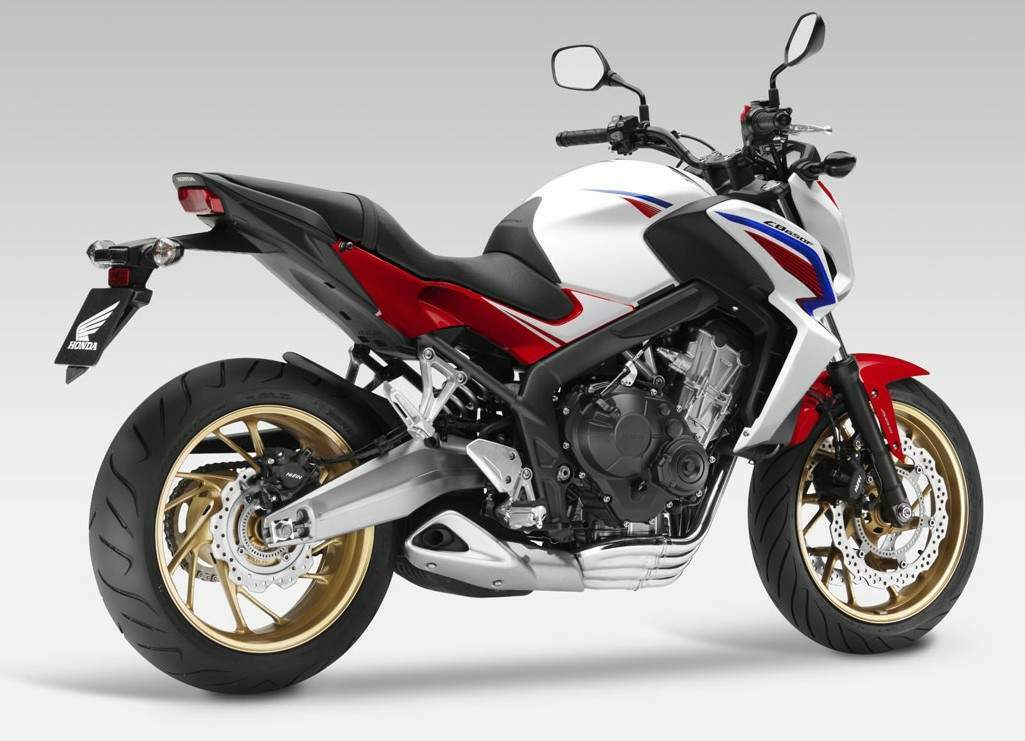

CB 650F |
| Years: |
2015 |
|
Engine:
|
Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.
|
|
Capacity:
|
649 cc / 39.6 cu-in
|
|
Bore x Stroke:
|
67 x 46 mm
|
|
Cooling System:
|
Liquid cooled.
|
|
Compression Ratio:
|
11.4:1
|
|
Induction:
|
PGM-FI Electronic Fuel Injection
|
|
Ignition:
|
Computer-controlled digital transistorised with electronic advance
|
|
Starting:
|
Electric
|
|
Max Power:
|
85.8 hp / 63.9 kW @ 11000 rpm
|
|
Max Torque:
|
46.4 lb-ft / 62.9 Nm @ 8000 rpm
|
|
Clutch:
|
Wet, multiplate with coil springs
|
|
Transmission:
|
6 Speed
|
|
Final Drive:
|
#525 O-ring sealed chain
|
|
Frame:
|
Steel diamond twin spar
|
|
Front Suspension:
|
41mm telescopic fork
|
|
Front Wheel Travel:
|
120 mm / 4.7 in
|
|
Rear Suspension:
|
Monoshock with adjustable preload
|
|
Rear Wheel Travel:
|
128 mm / 5.0 in
|
|
Front Brakes:
|
2x 320mm hydraulic discs with dual piston calipers
|
|
Rear Brakes:
|
Single 240mm disc with single piston caliper
|
|
Front Tyre:
|
120/70-ZR17
|
|
Rear Tyre:
|
180/55-ZR17
|
|
Trail:
|
101 mm / 4.0 in
|
|
Dimensions:
|
Length 2110 mm / 83 in Width 775 mm / 29.7 in Height 1120 mm / 45 in
|
|
Wheelbase:
|
1450 mm / 57.1 in
|
|
Seat Height:
|
810 mm / 31.8 in
|
|
Ground Clearance:
|
150 mm / 5.1 in
|
|
Wet Weight:
|
208.0 kg / 458.6 lbs
|
|
Fuel Capacity:
|
17.3 Litres / 4.5 US gal
|
