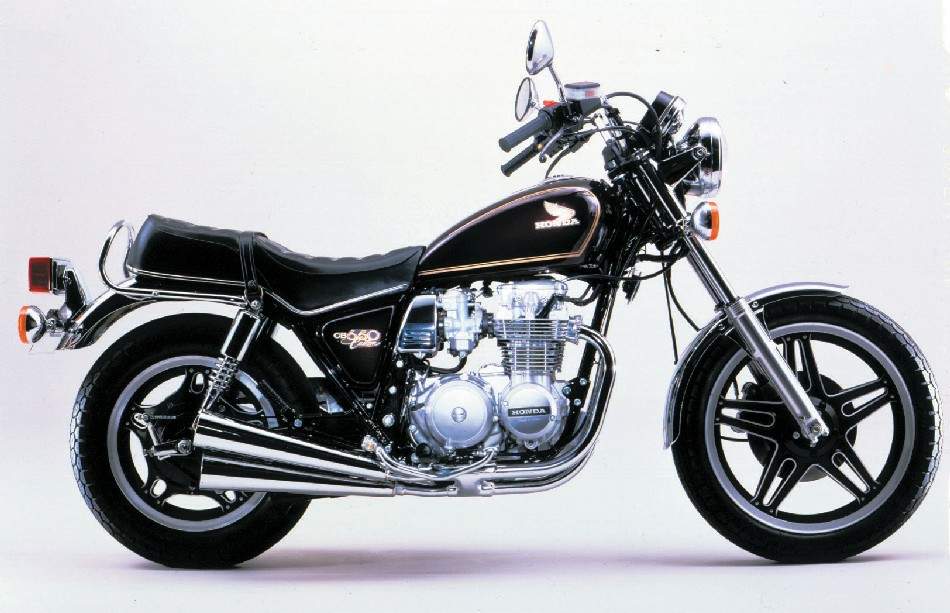

Honda CB 650 Custom (1980-81) technical specifications
Honda CB 650 Custom is produced in 1980-81. Engine is Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder., displacement 626.8 cc / 38.2 cu-in , produces power 63 hp / 46.9 kW @ 9000 rpm and 51.5 Nm / 38 lb-ft @ 8000 rpm. Honda CB 650 Custom weighs 220 kg / 485 lbs. Honda CB 650 Custom has 1 photos.
Technical specifications
+ Add to 'Compare list'| Model: | CB 650 Custom |
| Years: | 1980-81 |
| Engine: | Four stroke, transverse four cylinder, SOHC, 2 valves per cylinder. |
| Capacity: | 626.8 cc / 38.2 cu-in |
| Bore x Stroke: | 59.8 x 55.8 mm |
| Cooling System: | Air cooled. |
| Compression Ratio: | 9.0:1 |
| Induction: | 4x 26mm Keihin carburetors |
| Ignition: | Transistorized |
| Starting: | Electric |
| Max Power: | 63 hp / 46.9 kW @ 9000 rpm |
| Max Torque: | 51.5 Nm / 38 lb-ft @ 8000 rpm |
| Transmission: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Centre axle coil spring forks |
| Front Wheel Travel: | 135 mm / 5.3 in |
| Rear Suspension: | Dual Showa dampers. adjustable spring preload. |
| Rear Wheel Travel: | 91 mm / 3.5 in |
| Front Brakes: | Single 275mm discs 1 piston calipers |
| Rear Brakes: | 180mm Drum |
| Front Tyre: | 3.50-19 |
| Rear Tyre: | 130/90-16 |
| Trail: | 121 mm / 4.6 in |
| Wheelbase: | 1480 mm / 58.3 in |
| Seat Height: | 760 mm / 30.1 in |
| Dry Weight: | 220 kg / 485 lbs |
| Fuel Capacity: | 13.5 Litres / 3.5 US gal |
