Technical specifications
|
| Model: |

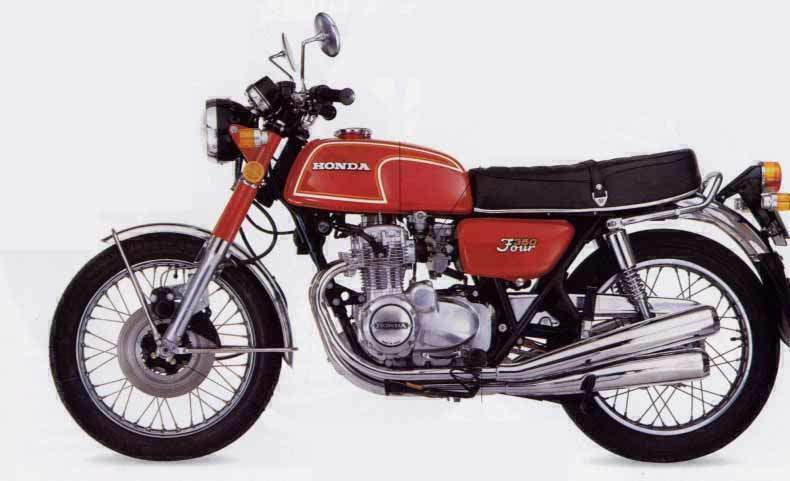

CB 350F |
| Years: |
1972-73 |
|
Engine:
|
Four stroke, transverse four cylinder, SOHC, 2 valve per cylinder.
|
|
Capacity:
|
347 cc / 21.4 cu-in
|
|
Bore x Stroke:
|
47 x 50. mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.3:1
|
|
Induction:
|
4x Keihin 656 C, Ø 22 mm carburetors
|
|
Ignition:
|
Coil and breaker points
|
|
Starting:
|
Electric & kick
|
|
Max Power:
|
34 hp / 24.8 kW @ 9500 rpm
|
|
Max Torque:
|
27.2 Nm / 2,79 m-kg @ 8000 rpm
|
|
Transmission / Drive:
|
5 Speed
|
|
Final Drive:
|
Chain
|
|
Frame:
|
Simple tubular steel cradle, split under the engine
|
|
Front Suspension:
|
Television hydraulic forks, 114mm wheel travel.
|
|
Rear Suspension:
|
Dual chocks, adjustable pre constraint (3 positions), 91 mm wheel trave.
|
|
Front Brakes:
|
Single 260mm disc
|
|
Rear Brakes:
|
Drum
|
|
Front Tyre:
|
3.00-18
|
|
Rear Tyre:
|
3.50-18
|
|
Wheelbase:
|
1350 mm / 53.3 in
|
|
Seat Height:
|
790 mm / 31.0 in
|
|
Dry Weight:
|
160 kg / 352.7 lbs
|
|
Wet Weight:
|
178 kg / 392.4 lbs
|
|
Fuel Capacity:
|
12 Litres / 3.1 US gal
|
