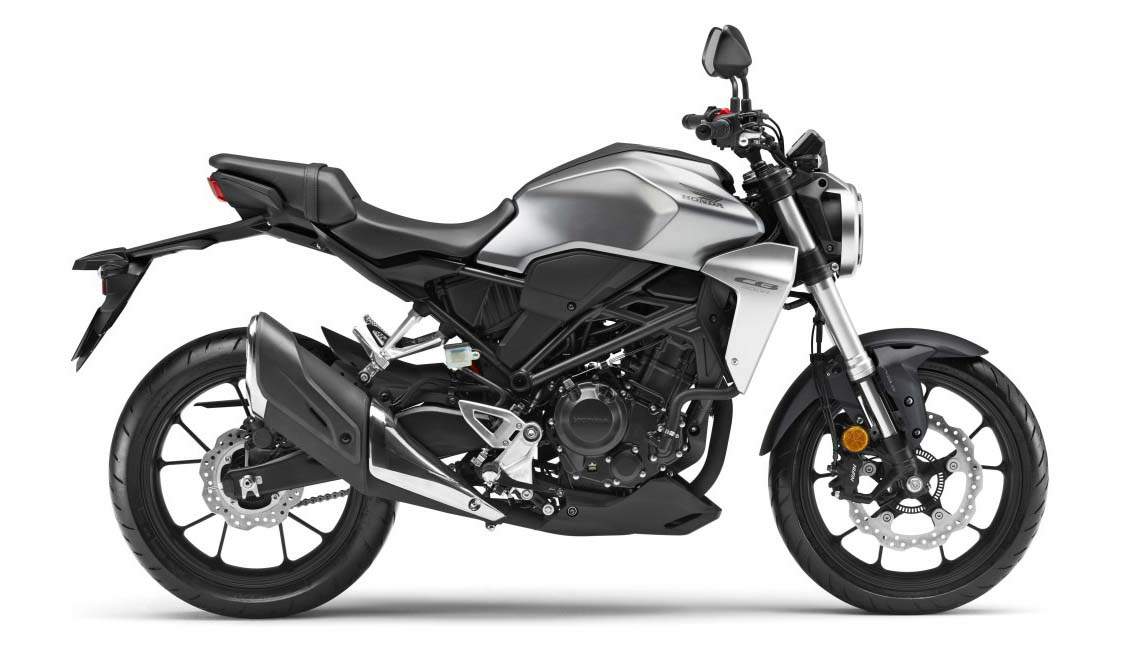

Honda CB 300R (2018-19) technical specifications

Honda CB 300R is produced in 2018-19. Engine is Four stroke, single cylinder, DOHC, 4 valve per cylinder, displacement 286 cc / 17.45 cub in , produces power 22.7 kW / 30.4 hp @ 8 500 rpm and N27 Nm / 19.9 lb-ft @ 7250 rpm. Honda CB 300R wet weight is 143 kg / 317 lbs. Honda CB 300R has 8 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CB 300R
Years:	2018-19
Engine:	Four stroke, single cylinder, DOHC, 4 valve per cylinder
Capacity:	286 cc / 17.45 cub in
Bore x Stroke:	76 x 63 mm
Compression Ratio:	10.7: 1
Cooling System:	Liquid cooled
Induction:	Fuel injection w/ 38mm throttle body
Ignition:	Full transistorized
Battery:	12V-7AH
Starting:	Electric
Max Power:	22.7 kW / 30.4 hp @ 8 500 rpm
Max Torque:	N27 Nm / 19.9 lb-ft @ 7250 rpm
Clutch:	Wet multiplate hydraulic clutch
Transmission:	6 Speed
Final Drive:	#520 O-ring-sealed chain
Frame:	Steel diamond frame
Front Suspension:	41mm Telescopic fork
Front Wheel Travel:	130 mm / 5.1 in
Rear Suspension:	Monoshock damper, Pro-Link swingarm
Rear Wheel Travel:	107 mm / 4.2 in
Front Brakes:	Single 296 mm disc 2 piston caliper
Rear Brakes:	Single 220 mm disc 1 piston caliper
ABS System:	2 channel with IMU
Wheels:	Multi-spoke cast aluminium
Front Tyre:	110/70R17M/C 54H
Rear Tyre:	150/60R17M/C 65H
Rake:	24.7°
Trail:	93 mm / 3.7 in
Dimensions:	Length 2012 mm / 79.2 in Width 802 mm / 31.6 in Height 1052 mm / 41.4 in
Wheelbase:	1352 mm / 53.3 in
Seat Height:	799 mm / 31.5 in
Ground Clearance:	151 mm / 5.9 in
Wet Weight:	143 kg / 317 lbs
Fuel Capacity:	10 Litres / 2.7 US gal
