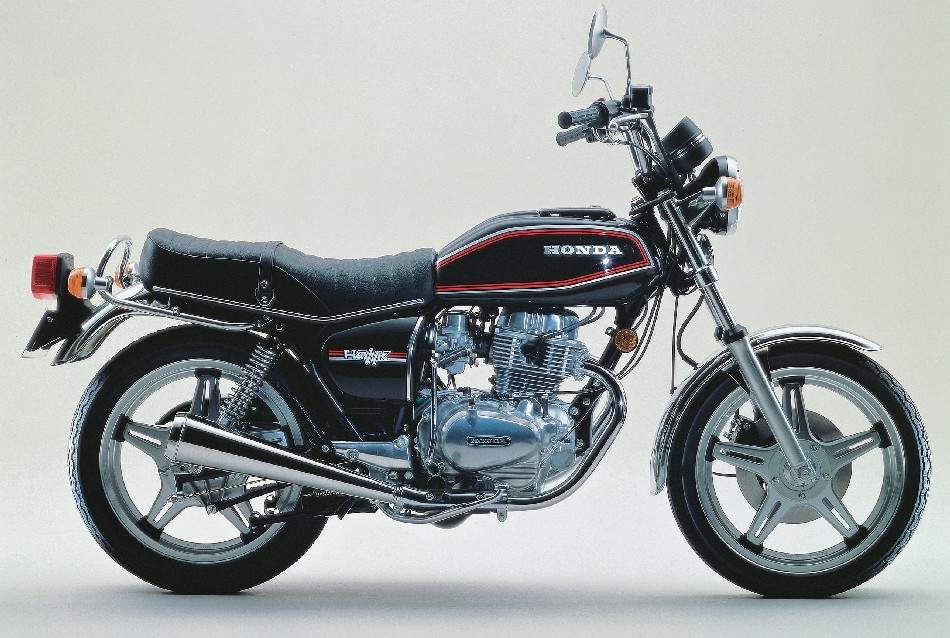

1978 Honda CB 250T Dream / Hawk technical specifications
Technical specifications
|
|
|---|---|
| Model: | CB 250T Dream / Hawk |
| Years: | 1978 |
| Engine: | Four stroke, twin cylinder, OHC, 2 valve per cylinder |
| Capacity: | 249 cc / 15.2 cu-in |
| Bore x Stroke: | 62 x 41.4mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.4:1 |
| Induction: | CDI |
| Ignition / Starting: | Electronic ignition / kick |
| Max Power: | 17 hp / 12.4 kW @ 85000rpm |
| Max Torque: | NA |
| Transmission / Drive: | 5 Speed |
| Final Drive: | Chain |
| Front Suspension: | Telescopic |
| Rear Suspension: | Dual shocks |
| Front Brakes: | Single disc |
| Rear Brakes: | Drum |
| Front Tyre: | 3.60 -19 |
| Rear Tyre: | 4.10 -18 |
| Wit-Weight: | 185.0 kg / 407.9 lbs |
| Fuel Capacity: | 14 Litres / 3.7 US gal |
