Honda CB 1300S Super Bol D'or (2010-11) technical specifications

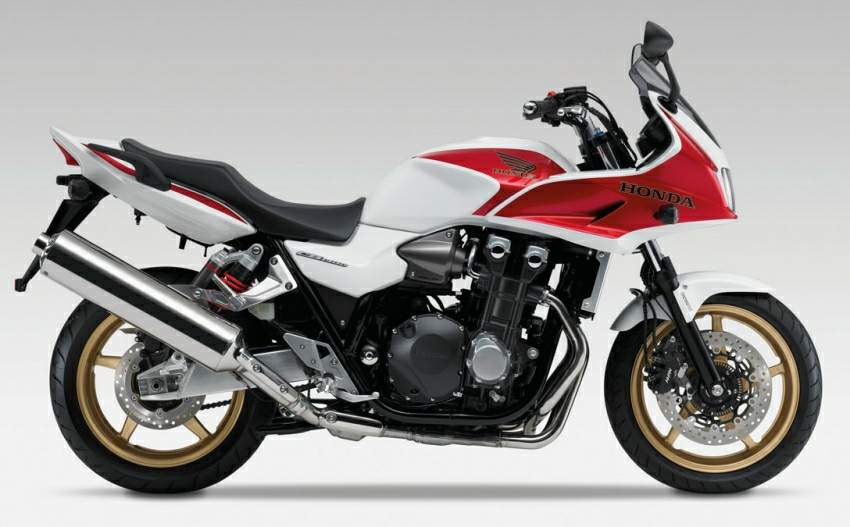

Honda CB 1300S Super Bol D'or is produced in 2010-11. Engine is Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder., displacement 1284 cc / 78.3 cu-in , produces power 114 hp / 83.2 kW @ 7500 rpm and 117 Nm / 11.9 kg-fm / 86.3 ft-lb @ 6000 rpm. Honda CB 1300S Super Bol D'or wet weight is 261.0 kg / 575.4 lbs. Honda CB 1300S Super Bol D'or has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	CB 1300S Super Bol D'or
Years:	2010-11
Engine:	Four stroke, Transverse four cylinder, DOHC, 4 valve per cylinder.
Capacity:	1284 cc / 78.3 cu-in
Bore x Stroke:	78 x 67.2 mm
Cooling Sysstem:	Liquid cooled
Compression Ratio:	9.6:1
Induction:	PGM-FI fuel injection with 4 x 36mm throttle bodies
Ignition:	Analogue CDI (Capacitive Discharge Ign.)
Starting:	Electric
Max Power:	114 hp / 83.2 kW @ 7500 rpm
Max Torque:	117 Nm / 11.9 kg-fm / 86.3 ft-lb @ 6000 rpm
Clutch:	Wet multi-plate coil spring
Transmission:	5 Speed
Final Drive:	Chain
Front Suspension:	43mm cartridge style forks
Rear Suspension:	Twin shocks with adjustable spring preload
Front Brakes:	2x 310mm discs 4 piston calipers, ABS
Rear Brakes:	Single 256mm disc 1 piston caliper, ABS
Front Tyre:	130/70 ZR17
Rear Tyre:	190/60 ZR17
Rake:	25.0°
Trail:	99 mm / 3.9 in
Dimensions:	Length 2220 mm / 87 in Width 790 mm / 31 in Height 1120 mm / 44 in
Wheelbase:	1510 mm / 59.4 in
Seat Height:	790 mm / 31.1 in adjustable, lowest setting.
Ground Clearance:	125 mm / 4.9 in
Wet Weight:	261.0 kg / 575.4 lbs
Fuel Capacity:	21 Litres / 5.5 US gal
