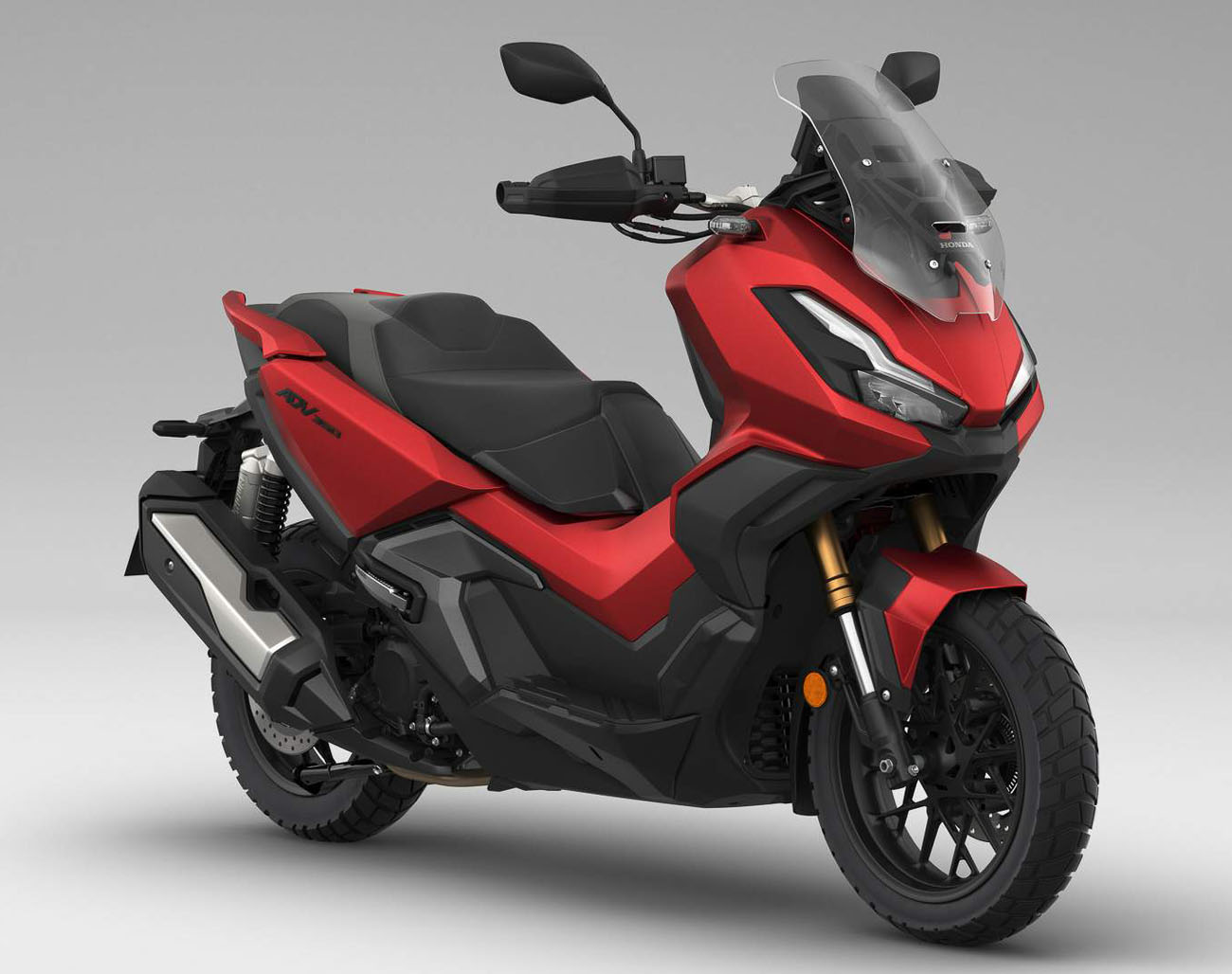

Honda ADV 350 (2022) technical specifications

Honda ADV 350 is produced in 2022. Engine is Four stroke, single cylinder, SOHC, 4-valve, displacement 330 cc / 20.1 cu-in , produces power 21.5 kW / 28.8 horsepower @ 7500 rpm and 31.5 Nm / 23.2 lb-ft @ 5250 rpm. Honda ADV 350 wet weight is 186kg / 410 lbs. Honda ADV 350 has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	ADV 350
Years:	2022
Engine:	Four stroke, single cylinder, SOHC, 4-valve
Capacity:	330 cc / 20.1 cu-in
Bore x Stroke:	77 x 70.8mm
Cooling System:	Liquid cooled
Compression Ratio:	10.5:1
Emission:	Euro 5
Induction:	PGM-FI electronic fuel injection
Ignition:	Fully transistorised ignition
Starting:	Electric
Max Power:	21.5 kW / 28.8 horsepower @ 7500 rpm
Max Torque:	31.5 Nm / 23.2 lb-ft @ 5250 rpm
Clutch:	Automatic centrifugal dry type
Transmission:	CVT
Final Drive:	V-Belt
Frame:	Steel underbone
Front Suspension:	37mm Upside down forks
Front Wheel Travel:	125 mm / 4.9 in
Rear Suspension:	Twin shock
Rear Wheel Travel:	130 mm / 5.1 in
Front Brakes:	Single 256mm disc, 2 piston Nissin caliper
Rear Brakes:	Single 240mm disc, 1 piston Nissin caliper
ABS:	2-channel ABS
Wheels:	Six spoke cast aluminium
Front Tyre:	120/70-15MC 56P
Rear Tyre:	140/70-14MC 62P
Rake:	26.5°
Trail:	89 mm / 3.5 in
Dimensions:	Length : 2200 mm / 86.6 in Width: 895 mm / 35.2 in Height: 1430 mm / 56.2 in
Wheelbase:	1520 mm / 59.8 in
Seat Height:	795 mm / 31.3 in
Ground Clearance:	145 mm / 5.7 in
Wet Weight:	186kg / 410 lbs
Fuel Capacity:	11.7 Litres / 3.0 US gal
