Harley-Davidson Harley Davidson XL 883N Iron Special Edition (2013) technical specifications

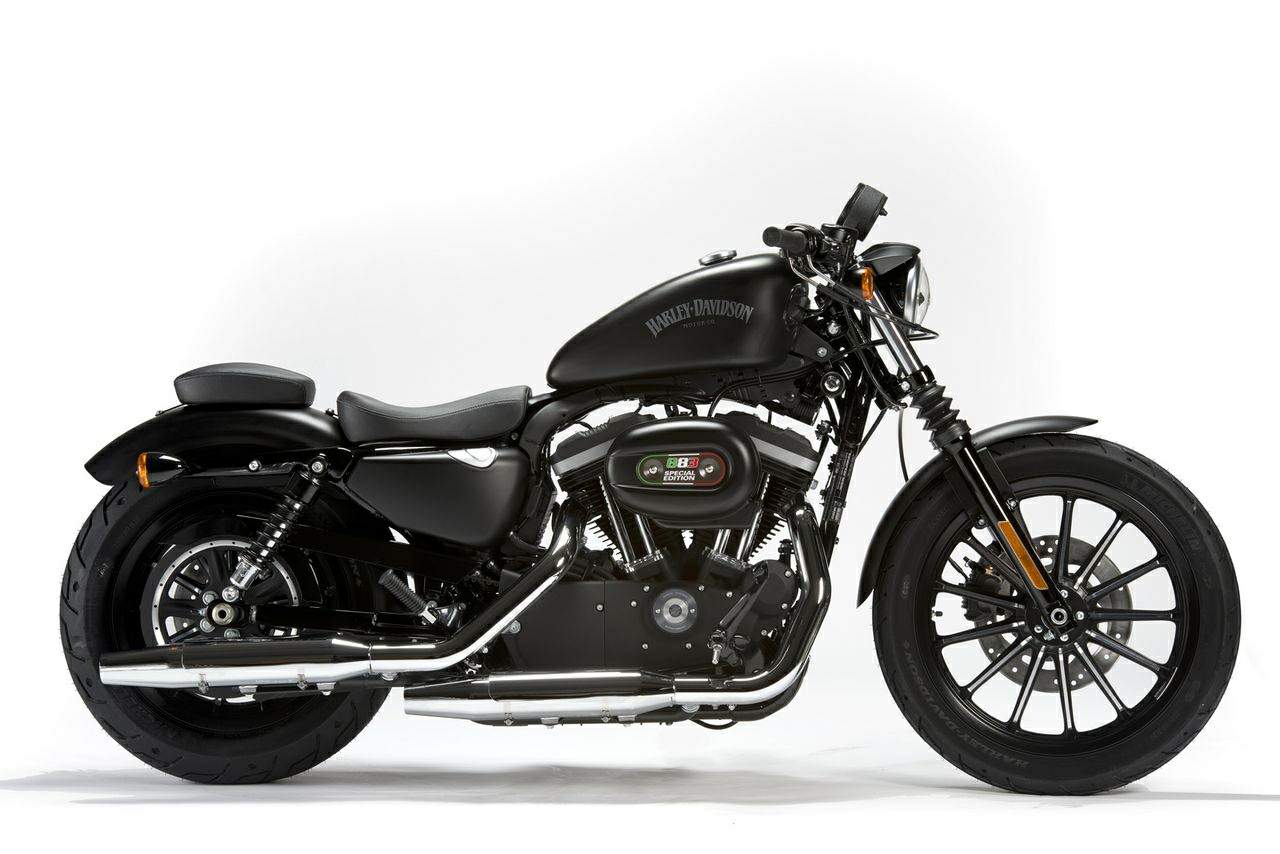

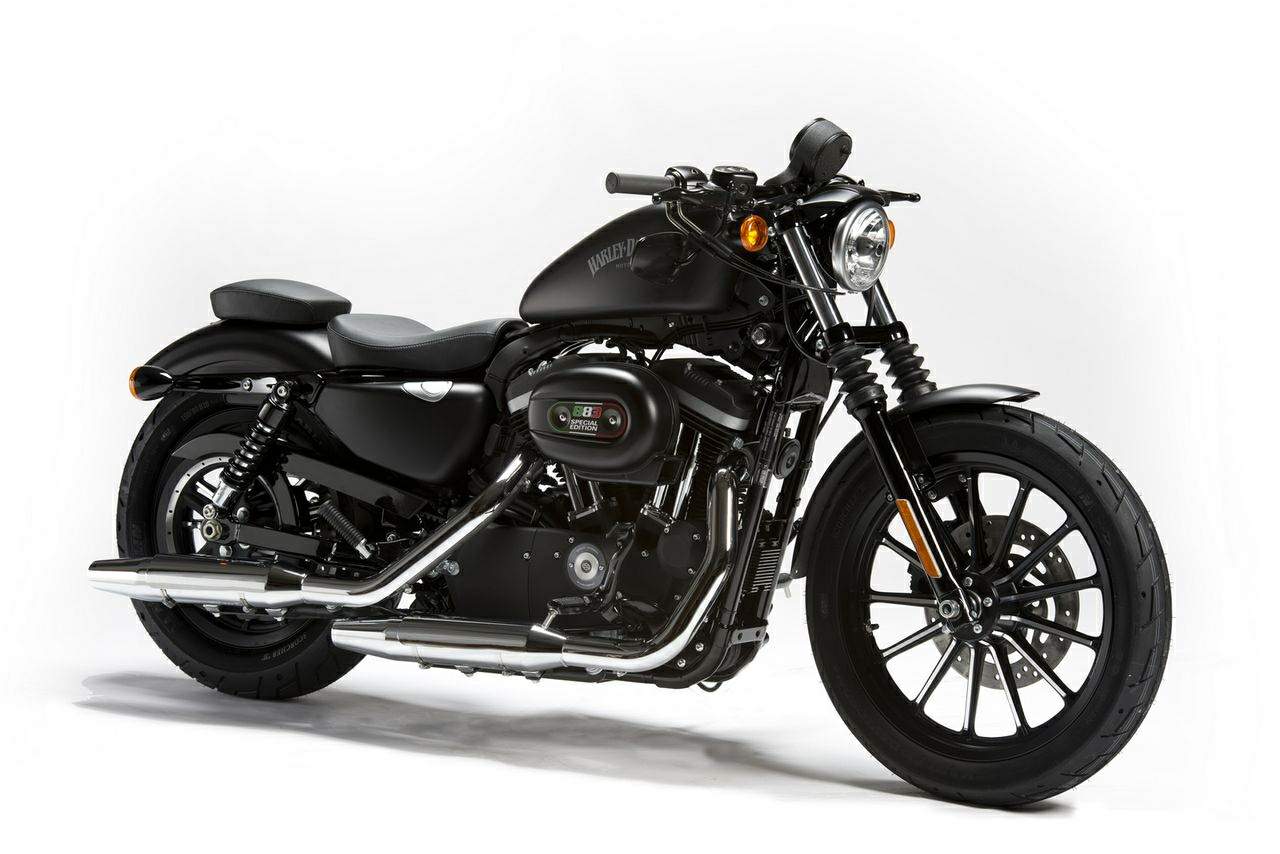

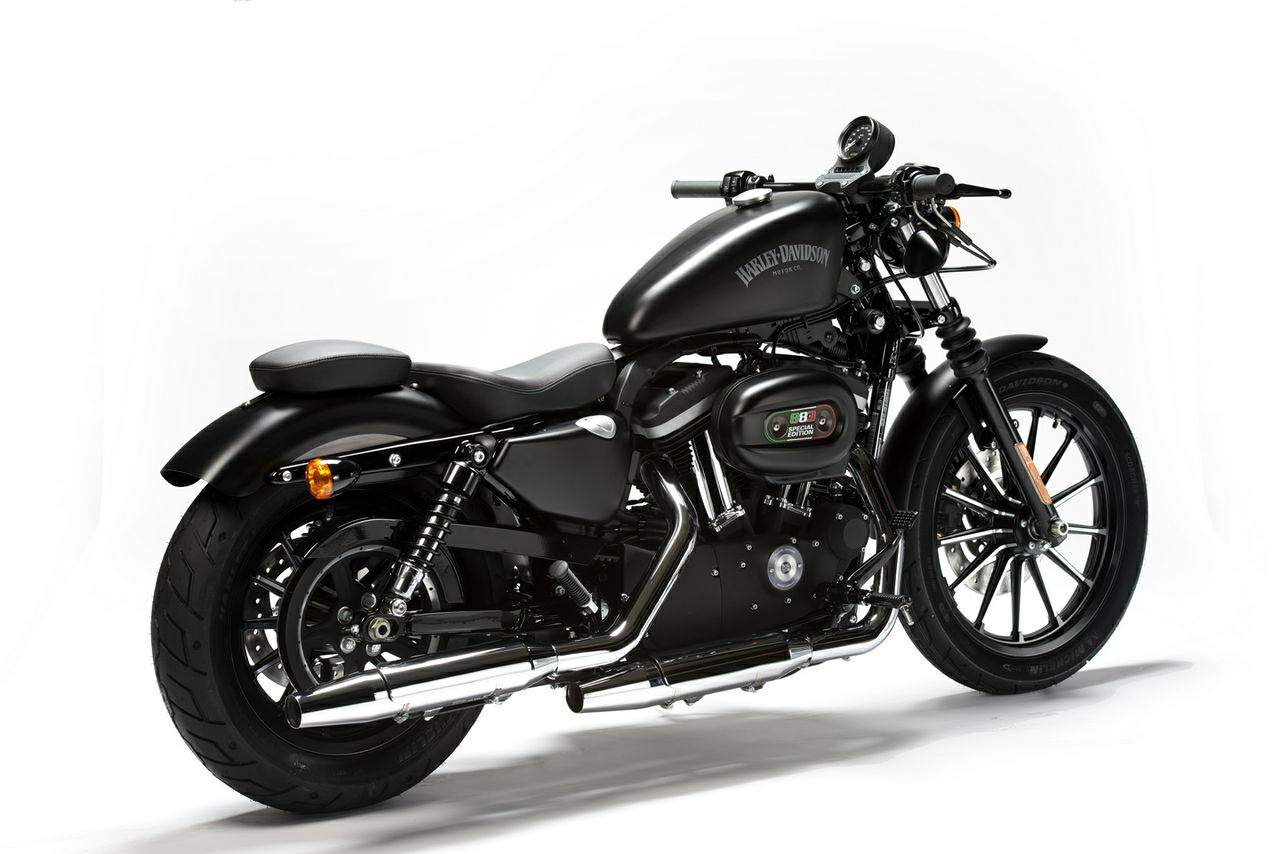

Harley-Davidson Harley Davidson XL 883N Iron Special Edition is produced in 2013. Engine is Four stroke, 45° V-Twin, OHV, 2 valves per cylinder., displacement 883 cc / 50.8cu in/ Harley-Davidson Harley Davidson XL 883N Iron Special Edition wet weight is 256.3 kg / 565 lbs. Harley-Davidson Harley Davidson XL 883N Iron Special Edition has 4 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson XL 883N Iron Special Edition
Years:	2013

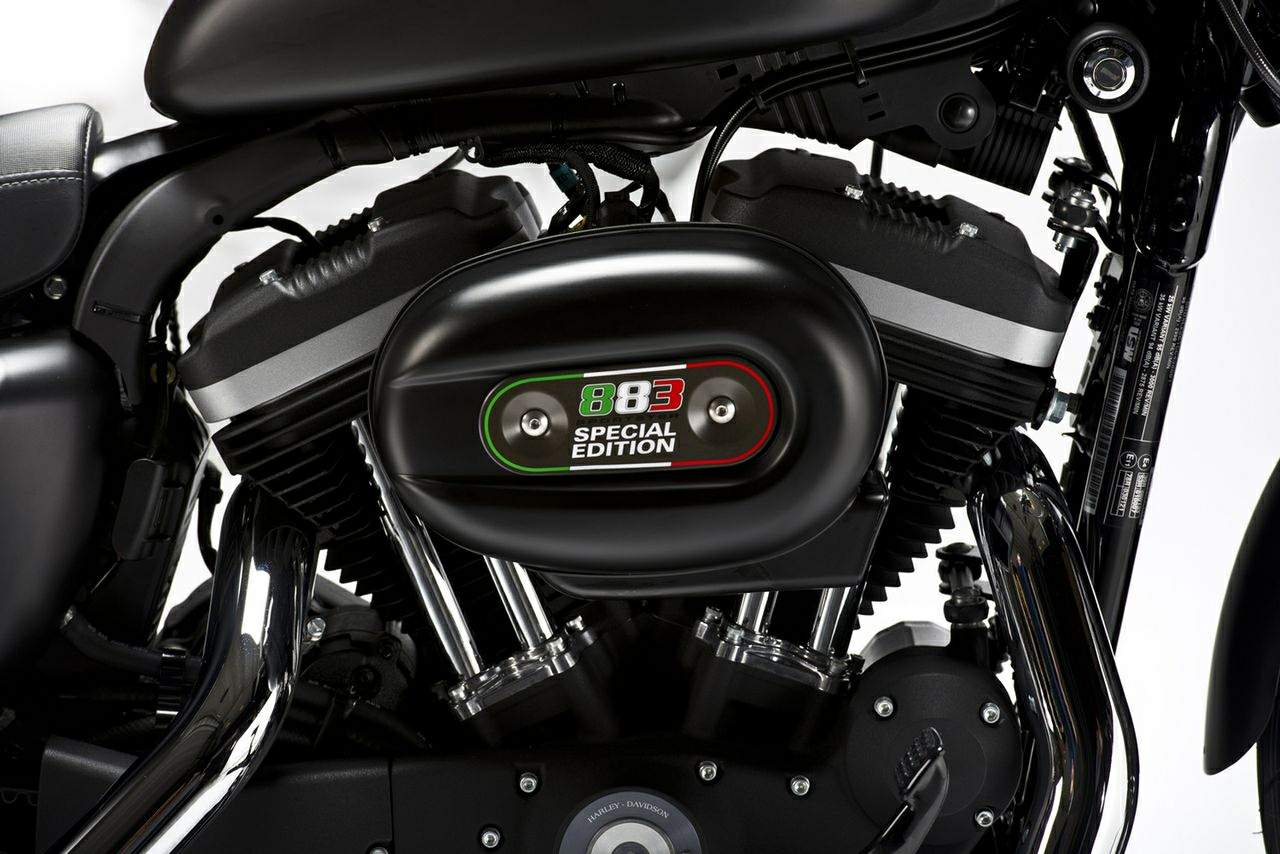

Engine:	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Capacity:	883 cc / 50.8cu in/
Bore x Stroke:	76.2 x 96.8 mm
Cooling System:	Air cooled
Compression Ratio:	8.8:1
Exhaust:	Chrome, staggered, shorty exhaust with dual mufflers
induction:	Electronic sequential port fuel injection
Ignition:	Digital CDI
Starting:	Electric
Max Torque:	73 Nm / 7.44 kgf-m / 53.8 ft/lb @ 3750 rpm
Clutch:	Multi-plate clutch with diaphragm spring in oil bath
Transmission:	5 Speed
Final Drive:	Belt
Primary Drive:	Chain, 34/57 ratio
Gear Ratio:	1st 10.407 / 2nd 7.436 / 3rd 5.53 / 4th 4.583 / 5th 3.93
Frame:	Mild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
Front Suspension:	∅39mm Fork
Front Wheel Travel:	92 mm / 3.62 in.
Rear Suspension:	Coil-over, dual-adjustable preload
Rear Wheel Travel:	41 mm / 1.6 in.
Front Brakes:	Single ∅300mm disc, 2 x ∅38mm piston calipers
Rear Brakes:	Single ∅260mm disc, 2 x ∅38mm piston calipers
Front Wheel:	Black, 13-spoke cast aluminium
Rear Wheel:	Black, 13-spoke cast auminium
Front Tyre:	100/90B19 57H
Rear Tyre:	130/90-16
Rake:	31.1°
Trail:	117 mm / 4.6 in
Dimensions:	Length 2179 mm / 85.4 in Width 821 mm / 32.3 in Height 1107 mm / 43.5 in
Wheelbase:	1519 mm / 59.5 in.
Seat Height:	Laden 653 mm / 25.7 in Unladen 683 mm / 26.9 in.
Ground Clearance:	120 mm / 4.7 in
Wet Weight:	256.3 kg / 565 lbs
Oil Capacity:	2.6 Litres / 0.69 US gal
Fuel Capacity:	12.5 Litres / 3.3 US gal
