Technical specifications
|
| Model: |

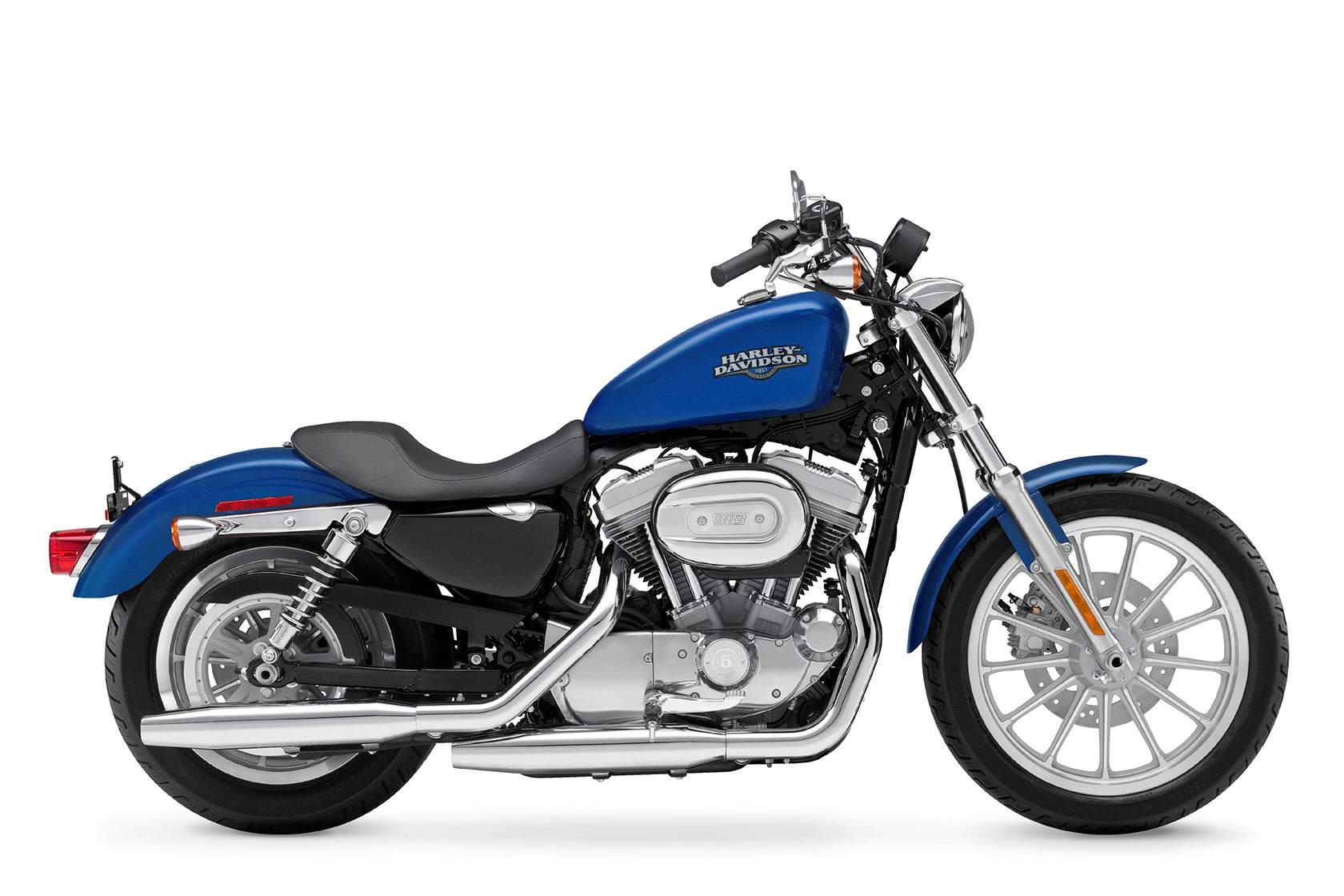

Harley Davidson XL 883L Sportster |
| Years: |
2009-10 |
|
Engine:
|
Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
|
|
Capacity:
|
883 cc / 53.9 cub in.
|
|
Bore x Stroke:
|
76.2 x 96.8 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
8.8:1
|
|
induction:
|
Electronic Sequential Pot Fuel Injection
|
|
Ignition:
|
Digital CDI
|
|
Starting:
|
Electric
|
|
Max Power:
|
68 hp / 50.2 kW @ 4400 rpm
|
|
Max Torque:
|
74.5 Nm / 55 lb-ft @ 3500 rpm
|
|
Clutch:
|
Multi-plate clutch with diaphragm spring in oil bath
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Belt
|
|
Gear Ratio:
|
1st 10.782 2nd 7.702 3rd 5.728 4th 4.748 5th 4.071
|
|
Frame:
|
Mild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded
|
|
Front Suspension:
|
39mm Telescopic forks
|
|
Rear Suspension:
|
Coil-over, dual-adjustable preload
|
|
Front Brakes:
|
Single 292mm disc 2 piston calipers
|
|
Rear Brakes:
|
Single 292mm disc 1 piston caliper
|
|
Front Tyre:
|
D401F 100/90-19 57H
|
|
Rear Tyre:
|
D401 150/80B16 71H
|
|
Rake:
|
29.6°
|
|
Trail:
|
117 mm / 4.6 in
|
|
Dimensions:
|
Length 2263.14 mm / 89.10 in Width 894.08 mm / 35.2 in Height 1160.78 mm /45.7 in
|
|
Wheelbase:
|
1524.0 mm / 60.0 in
|
|
Seat Height:
|
Laden2 642.62 mm / 25.3 in Unladen 668.02 mm / 26.3 in
|
|
Dry Weight:
|
255 kg / 563 lbs
|
|
Wet Weight:
|
264.4 kg / 583 lbs
|
|
Fuel Capacity:
|
12.5 Litres / 3.3 US gal
|
