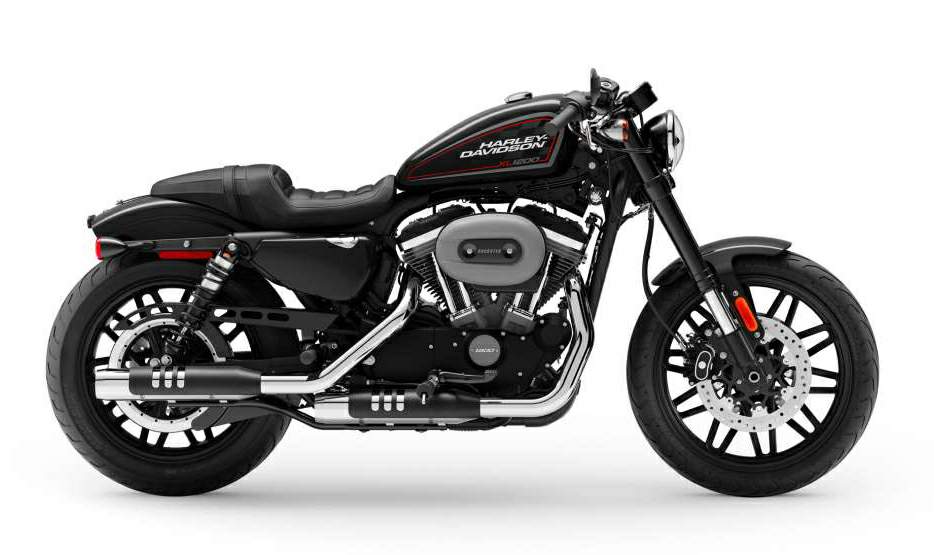

Harley-Davidson Harley Davidson XL 1200R Sportster Roadster (2018-19) technical specifications

Harley-Davidson Harley Davidson XL 1200R Sportster Roadster is produced in 2018-19. Engine is Four stroke, 45° V-Twin, OHV, 2 valves per cylinder., displacement 1202 cc / 73.4 cub in. Harley-Davidson Harley Davidson XL 1200R Sportster Roadster weighs 250 kg / 549 lbs. Harley-Davidson Harley Davidson XL 1200R Sportster Roadster has 5 photos.

Technical specifications

+ Add to 'Compare list'

Model:	Harley Davidson XL 1200R Sportster Roadster
Years:	2018-19
Engine:	Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.
Capacity:	1202 cc / 73.4 cub in.
Bore x Stroke:	88.9 x 96.8 mm
Cooling System:	Air cooled
Compression Ratio:	10.0:1
Exhaust:	Shorty-dual exhaust with chrome tapered mufflers with laser cut black heat shields
Induction:	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition:	Digital CDI
Starting:	Electric
Max Torque:	103 Nm (76 lb-ft) @ 3,750 rpm
Transmission:	5 Speed
Final Drive:	Belt
Primary Drive:	Chain, 38/57 ratio
Gear Ratio:	1st 9.315 / 2nd 6.653 / 3rd 4.948 / 4th 4.102 / 5th 3.51
Frame:	Mild steel, tubular frame; circular sections; cast junctions Swingarm Mild steel, rectangular tube section, stamped junctions; MIG welded
Lean Angle, Left:	26º
Lean Angle, Right:	25º
Front Suspension:	43 mm inverted front forks with premium cartridge dampening technology and triple clamp design
Rear Suspension:	Premium emulsion technology rear shocks with screw style pre-load adjustment
Front Brakes:	2x 300mm floating discs, 2 piston caliper
Rear Brakes:	Single 292mm disc, 1 piston caliper
Front Wheel:	Black offset, split 5-spoke cast aluminum
Rear Wheel:	Black offset, split 5-spoke cast aluminum
Front Tyre:	120/70R19 M/C
Rear Tyre:	150/70R18 M/C
Rake:	28.9°
Trail:	140 mm / 5.5 in
Dimensions:	Length 2185mm / 86 in
Wheelbase:	1505 / 59.3 in
Seat Height:	Unladen 785 mm / 30.9in
Dry Weight:	250 kg / 549 lbs
Wet Weight:	259 kg / 568 lbs
Ground Clearance:	150 mm / 6 in
Oil Capacity:	2.6 Litres / 2.8 US qrts
Fuel Capacity:	12.5 Litres / 3.3 US gal
