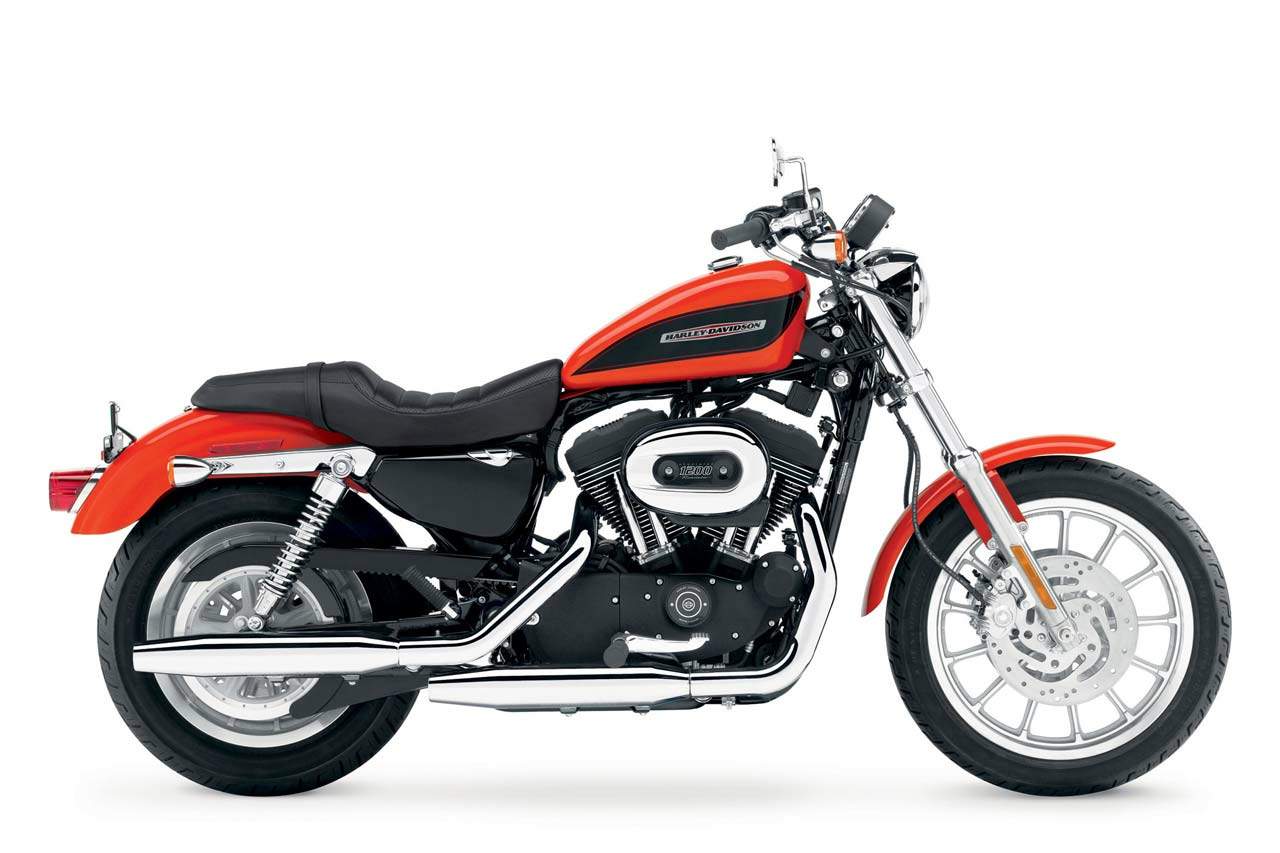

Harley-Davidson Harley Davidson XL 1200R Sportster Roadster (2006) technical specifications
Harley-Davidson Harley Davidson XL 1200R Sportster Roadster is produced in 2006. Engine is Fur stroke, 45° V-Twin Evolution® Valve Train Pushrod-operated, OHV, 2 valves per cylinder, displacement 1199 cc / 73.2 cu-in Harley-Davidson Harley Davidson XL 1200R Sportster Roadster weighs 256 kg / 565 lbs. Harley-Davidson Harley Davidson XL 1200R Sportster Roadster has 3 photos.
Technical specifications
+ Add to 'Compare list'| Model: | Harley Davidson XL 1200R Sportster Roadster |
| Years: | 2006 |
| Engine: | Fur stroke, 45° V-Twin Evolution® Valve Train Pushrod-operated, OHV, 2 valves per cylinder |
| Capacity: | 1199 cc / 73.2 cu-in |
| Bore x Stroke: | 88.8 x 96.8 mm |
| Cooling System: | Air cooled |
| Compression Ratio: | 9.7:1 |
| Lubrication: | Dry-sump |
| Induction: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Ignition: | Digital CDI |
| Starting: | Electric |
| Max Torque: | 107.3 Nm / 79 lb-ft @ 4000 rpm |
| Clutch: | Wet 9-plate |
| Transmission: | 5 Speed |
| Final Drive: | Belt |
| Primary Drive: | Chain, 57/38 ratio |
| Gear Ratio: | 1st 9.315 9.004 9.004 2nd 6.653 6.432 6.432 3rd 4.948 4.783 4.783 4th 4.102 3.965 3.965 5th 3.517 3.400 3.400 |
| Frame: | Mild steel, tubular frame, circular sections, cast junctions Swingarm Mild steel rectangular tube sections, stamped junctions, MIG welded |
| Front Suspension: | 39mm Forks |
| Rear Suspension: | Coil-over, dual-adjustable preload |
| Front Brakes: | Single 292mm disc 2 piston calipers |
| Rear Brakes: | Single 292mm disc 1 piston calipers |
| Front Tyre: | 100/90-19 57H |
| Rear Tyre: | 150/80B16 71H |
| Rake: | 29.6° |
| Fork Angle: | 29.6° |
| Trail: | 117 mm / 4.6 in |
| Dimensions: | Length 2288.5 mm / 90.1 in Width 932.2 mm / 36.7 in Height 1249.7 mm / 49.2 in |
| Wheelbase: | 1524.0 mm / 60.0 in |
| Seat Height: | Laden2 713.7 mm / 28.1 in Unladen 759.5 mm / 29.9 in |
| Ground Clearance: | 141 mm / 5.6 in |
| Dry Weight: | 256 kg / 565 lbs |
| Wet Weight: | 265 kg / 585 lbs |
| Fuel Capacity: | 12.5 Litres / 3.3 US gal |
