Technical specifications
|
| Model: |

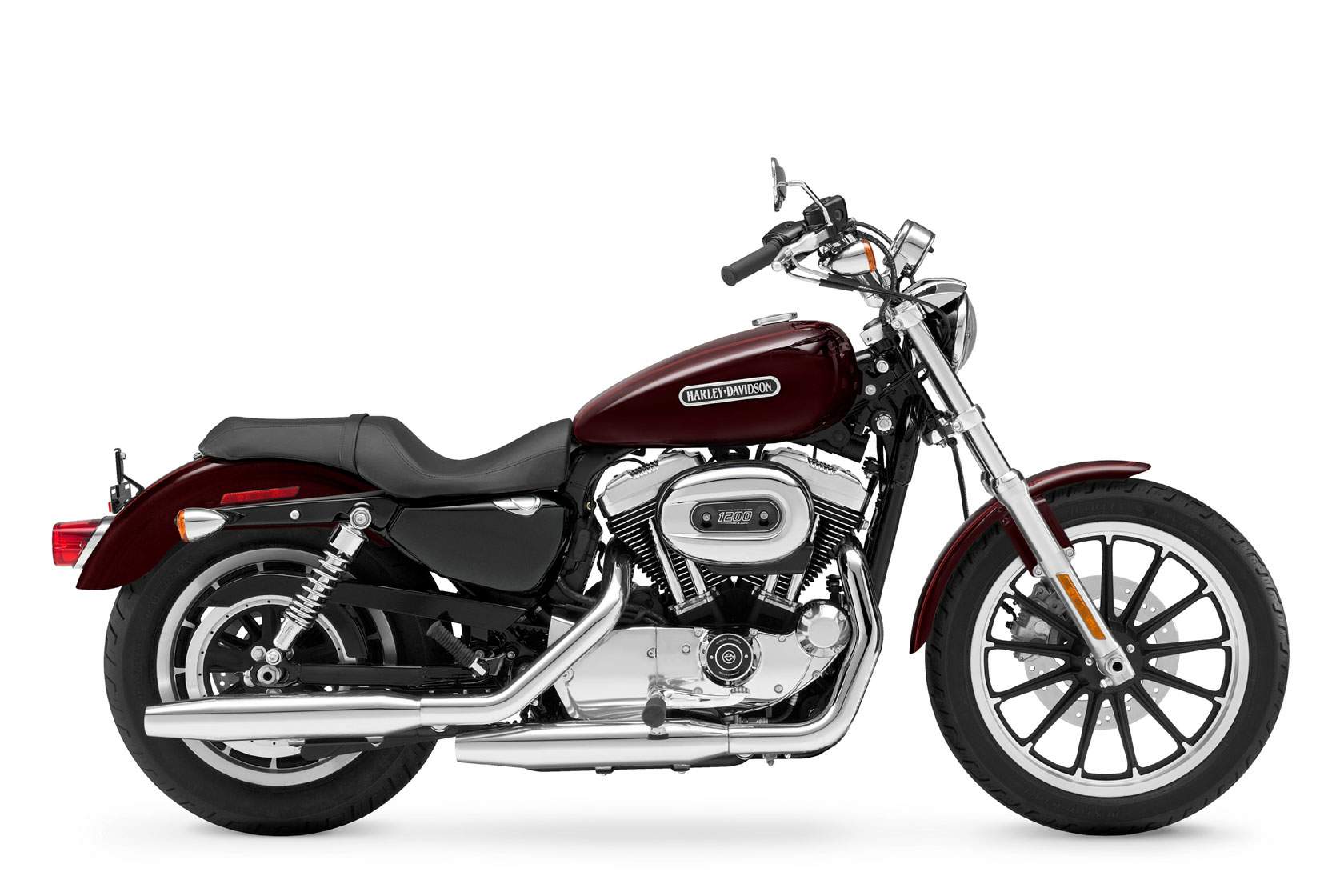

Harley Davidson XL 1200L Sportster Low |
| Years: |
2010-11 |
|
Engine:
|
Fur stroke, 45° V-Twin Evolution® Valve Train Pushrod-operated, OHV, 2 valves per cylinder
|
|
Capacity:
|
1199 cc / 73.2 cu-in
|
|
Bore x Stroke:
|
88.8 x 96.8 mm
|
|
Cooling System:
|
Air cooled
|
|
Compression Ratio:
|
9.7:1
|
|
Lubrication:
|
Dry-sump
|
|
Induction:
|
Electronic Sequential Port Fuel Injection (ESPFI)
|
|
Ignition:
|
Digital CDI
|
|
Starting:
|
Electric
|
|
Max Torque:
|
107.3 Nm / 79 lb-ft @ 4000 rpm
|
|
Clutch:
|
Wet 9-plate
|
|
Transmission:
|
5 Speed
|
|
Final Drive:
|
Belt
|
|
Primary Drive:
|
Chain, 57/38 ratio
|
|
Gear Ratio:
|
1st 9.315 2nd 6.653 3rd 4.948 4th 4.102 5th 3.517
|
|
Frame:
|
Mild steel, tubular frame, circular sections, cast junctions
|
|
Rear Suspension:
|
Coil-over, dual-adjustable preload chocs
|
|
Front Brakes:
|
Single 292mm disc 2 piston calipers
|
|
Rear Brakes:
|
Single 260mm disc 1 piston caliper
|
|
Front Tyre:
|
100/90-19 57H
|
|
Rear Tyre:
|
150/80B16 71H
|
|
Rake:
|
29.6°
|
|
Trail:
|
120 mm / 4.7 in
|
|
Dimensions:
|
Length 2263.1 mm / 89.1 in Width 894.1 mm / 35.2 in Height 1188.7 mm / 46.8 in
|
|
Wheelbase:
|
1516 mm / 59.7 in
|
|
Seat Height:
|
Laden 668. mm / 26.30 in. Unladen 711.2 mm / 28.0 in.
|
|
Ground Clearance:
|
112 mm / 4.1 in
|
|
Gross Vehicle Weight Rating:
|
453.60 kg / 1000 lbs
|
|
Dry Weight:
|
257 kg / 557 lbs
|
|
Wet Weight:
|
263.5 kg / 581 lbs
|
|
Fuel Capacity:
|
17 Litres / 4.5 US gal
|
